Product Details

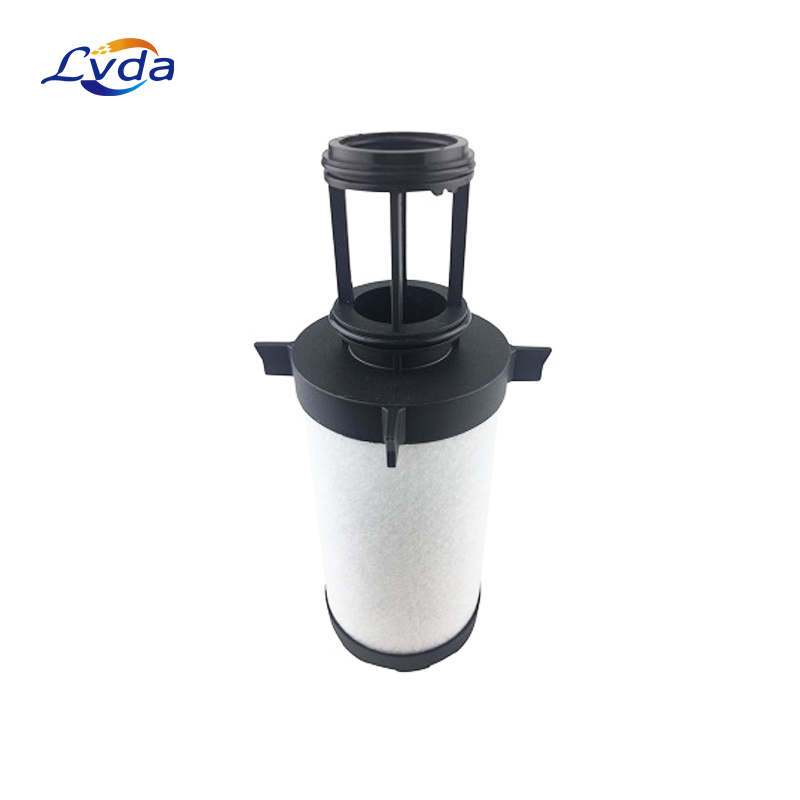

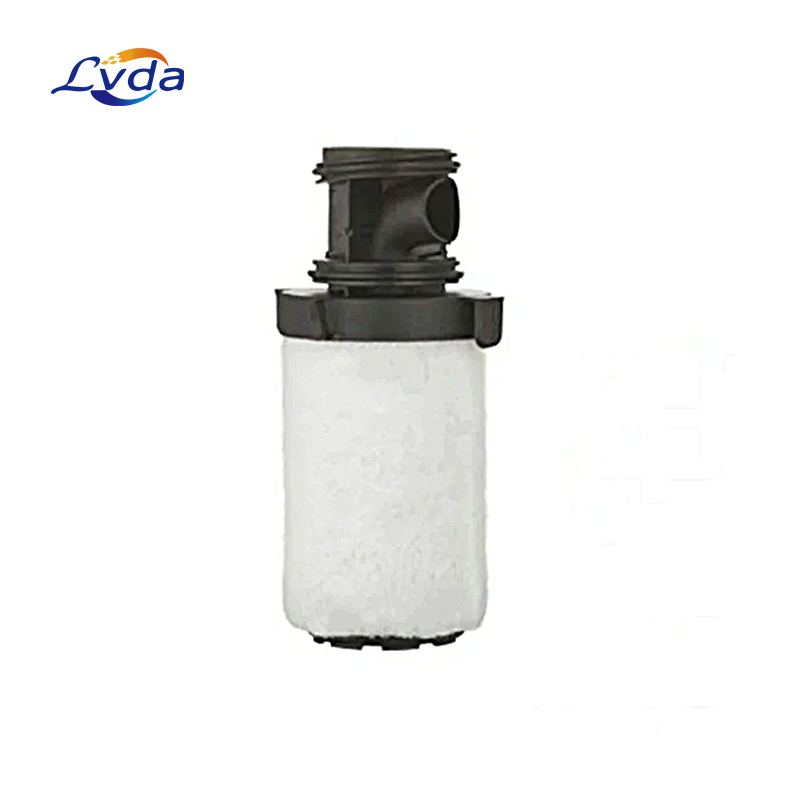

This is a Parker domnick hunter 025AR grade 1 micron factory original replacement dry particulate filter element. The image is for reference only and may not show the actual element.
The DOMNICK HUNTER 025AR compressed air filter element replacement is built with the highest quality materials and workmanship. This particulate filter offers equal to or better filtration performance based on the original OEM filter specifications.
Particulate filters, also known as after-filters, are used to remove solid particulate contamination from your compressed air line. These DOMNICK HUNTER compressed air filters are typically located after a compressed air desiccant dryer. These compressed air particulate filters provide the highest level of clean compressed air with a minimum loss of pressure. Our compressed air particulate filter elements are tough enough to hold their shape under pressure and maintain even pressure differentials to avoid collapsing of the filter element.
The DOMNICK HUNTER 025AR filter element equivalent is manufactured with the highest quality standards including: ANSI / CAGI Institute ADF 400-1999 Compressed Air and Gas, ISO / FDIS 8573-4 and code number of sale 1DJ40 U.S. Government.
AO, AA, ACS, AR, AAR and other letters represent the filter element precision.
Numbers such as 010, 015, 020, 025, 030, 035, 040, 045, 050, 055, 060 represent the size of the filter element. Please be sure to provide the complete model of the filter element when consulting the filter element.
Product features
1.Complete specifications, spot sale.
2.Long life time, not easy to crack, not easily stained with ash.
3.Low loss anti-reflectanc, high efficiency.
4.CNC milling and turning, dilling, grinding, tapping, high accuracy and small error.
5.100% inspection before shipment, quality assurance.
Product parameters
Filtering grade | Filtering precision | Residual oil content (ppm) |
PF | 25μm |
|
AO | 1μm | 0.01 |
AA | 0.01μm | 0.001 |
ACS | 0.01μm | 0.001 |
AR | 1μm（remove dust） |
|
AAR | 0.01μm（remove dust） |
|
Filtering precision: | 0.1mm 0.2mm 0.45mm 1um 3um 5um 10um 20um 30um 50um |
Filter element length: | 5”10”20”30”40” |
Filter element diameter: | 69mm 83mm 131mm |
Inner diameter of filter element: | 28mm ~40mm |
Maximum operating temperature: | ≤80℃0.1Mpa |
Maximum working pressure: | 0.3Mpa 50℃ |
Maximum back pressure difference: | 0.2Mpa 25℃ |
Maximum disinfection temperature: | 120℃ |
Product application
1. Metallurgy
It is used for filtering the hydraulic system of steel rolling mill and continuous casting machine and filtering various lubricating equipment.
2. Petrochemical
Separation and recovery of products and intermediate products in oil refining and chemical production, purification of liquid, magnetic tape, optical disk and photographic film in manufacturing, and particle removal and filtration of oilfield injection water and natural gas
3. Textile
Purification and uniform filtration of polyester melt during wire drawing, protective filtration of air compressor, oil and water removal of compressed gas.
4. Machining equipment
Lubrication system and compressed air purification of paper making machinery, mining machinery, injection molding machines and large precision machinery, and dust recovery and filtration of tobacco processing equipment and spraying equipment.
5. Railways
Filtering of internal combustion engine, generator, lubricating oil and engine oil.
6. Thermal power and nuclear power
Purification of lubricating system, speed control system and bypass control system oil of gas turbine and boiler, and purification of feed pump, fan and dust removal system
7. Various lifting and handling operations
Lifting, loading and other engineering machinery to fire fighting, maintenance, handling and other special vehicles, ship's cargo winch, windlass, blast furnace, steelmaking equipment, ship lock, ship door hoist, theater's lifting orchestra and lifting stage, various automatic conveyor lines, etc.
8. Automatic operation and control of multiple working program combinations
Modular machine tools, automatic machining lines, etc.
