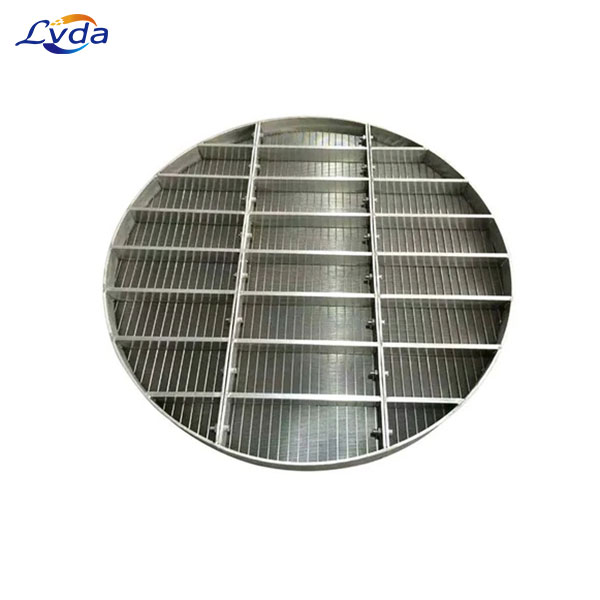

Support Grids

Product Details

The Wedge Wire Support Grid performs two primary functions, support for both the dead load (weight of the bed) and the live load (pressure differential during operation) and combines the precise wire and slot spacing forming a screen which prevents losses of costly media. Often due to the high cost and importance of the media for a process, designs for the wedge wire support grid is critical for proper media retention preventing media losses during operation.

BENEFITS

Continuous-slot design provides an increased open area

The continuous slot formed by V-shaped surface wires ensures a two-point contact between the particles and the slot to minimize clogging

Wide range of profile wires are available to suit most applications

High-precision slot sizes are available to meet your requirements

V-shaped surface wires allow for easy cleaning

Very low pressure drop

Additional supports are utilized to accommodate extreme load conditions

Low maintenance
