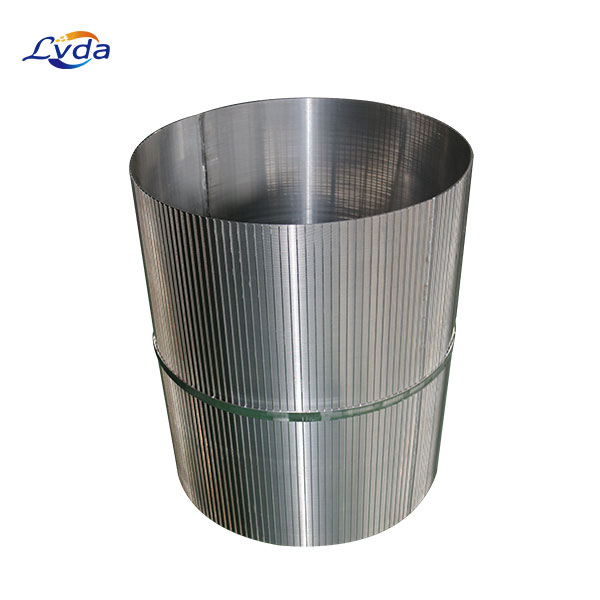

Reverse Rolled Wedge Wire Screen

Product Details

Selecting the appropriate construction and flow direction for a wedge wire screen depends on the specific requirements of your application and the type of filtration or separation you need to achieve. We provide axial slots and radial slots in FOTI and FITO flow direction.

Specifications

Material: Low Carbon, Low Carbon Galvanized (LCG), Stainless Steel (304, 304L, 316, etc.)

Lengths: Up to 6 meters

Diameter: From 25mm to 1000mm

End Connection: With welding or threaded male/female coupling

Slot size (mm): 0.05, 0.1, 0.15, 0.2, 0.25, 0.3 (custom sizes available upon request)

Advantages

1. Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.

2. Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.

3. Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.

4. Low operational costs: Large open area with an effective flow, high yield and a low pressure drop (dP)

5. Long live: Welded at each intersection creating a strong and durable screen.

6. Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.

7. Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.
