Product Details
The filtration media has been developed to create superior depth filtration technology that can be used in a wide variety of gas and liquid applications. This technology is designed to create filtration cartridges with multiple unique spiral layers of advanced treated media. Our filtration media highly engineered blend of fibers is thermally bonded to provide optimal efficiency, dirt loading, and a reduced cost of ownership.
Our filtration media offers multiple advantages over other available depth filtration alternatives.
Our engineered fibers provides a larger effective surface area per media volume and less flow resistance resulting in a high removal efficiencies.
Our filtration media media can be manufactured in both polyester and polypropylene to make this among the most chemically compatible media materials in the oil & gas industry.
Our engineered media with fibers gives the filter cartridges an open porosity while maintaining a rigid structure.
Product parameters
Diameter: 2.50”, 2.750”, 3.00”, 6.00”
Nominal Lengths: 9.75”, 10”, 19.5”, 20”, 29.25”, 30”, 36”, 40”, 47”, 60”
Media type: Depth Style Polyester, Depth Style Polypropylene
Gasket: Buna-N
EPR
Viton
Silicone
TES
Micron Range: 1µ, 5µ, 10µ, 25µ, 40µ, 50µ, 60µ, 75µ 1µ, 5µ, 10µ, 25µ, 40µ

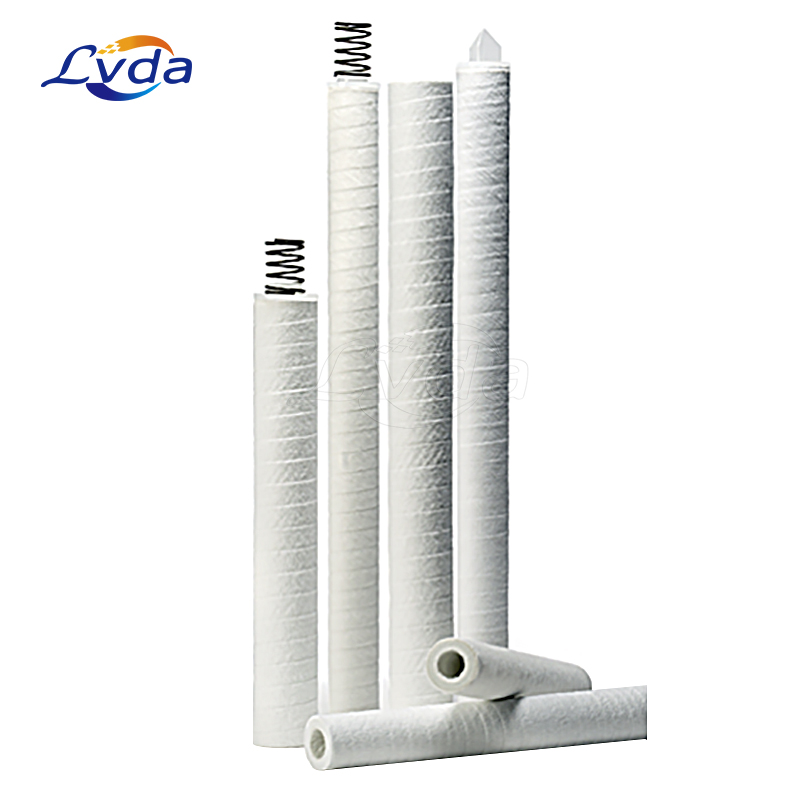

End cap style: Double Open Ended
Spring/Extension
Finned/222 O-ring
Finned/Extension
222 O-ring/Closed
222 O-ring/Spring
Spring
Extension
226 O-ring/Closed
Finned/226 O-ring
Product Features:
- Standard offerings built to suit a wide range of applications
- Varying density for high efficiency and superior dirt loading
- Media layers can be engineered for challenging applications
- Filtration flexibility with multiple surface treatment options
- Binder free construction for high chemical compatibility
- Silicone free to prevent contamination in chemical applications like paints, inks, coatings
TRI-SHiELD media cartridge with Tri-Lobal fibers provides up to 25% less pressure drop at start-up compared to standard polyester depth media. This provides longer life, higher dirt loading, and reduced filter change-outs.
Product applications
• Compressor Suction/Discharge
• Custody Transfer Meters
• Gas gathering
• Glycol Dehydration
• Amine Treating
• Molecular Sieve Dehydration
• Residue Gas
• Fuel Gas Conditioning
• Syn Gas Cleanup
• Mercury Bed Protection
• Cryogenic Plant Inlet
• Landfill Gas
• Catalyst protection
• Lo-Nox Burner protection
• Propane Re-gasification
• Metering Stations
• Catalyst protection
• PSA systems (pressure swing adsorption)
• Utility & Instrument Air
