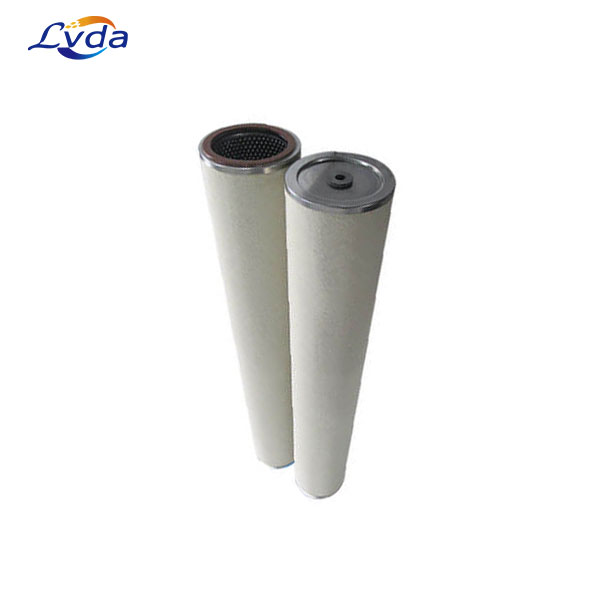

LCS06B1AH Coalescer filter element

Product Details

LCS06B1AH  Coalescing filters are designed to remove water, oil vapor and other contaminants from a compressed air or gas line. Our air coalescing filters provide the highest level of clean compressed air with a minimum pressure loss. They are guaranteed to equal the specifications of the OEM filtration media and filter surface area.

Processes and systems that require the separation of liquid aerosols and droplets from gas need a coalescing filter.

Coalescing Filter ElementThis type of filter element essentially comprises of two parts, an inner and an outer layer. The inner layer consists of a high-efficiency coalescing stage whilst the outer layer is a courser stage used for drainage.

SPECIFICATION

Maximum Operating Temperature (F)150 °F

Maximum Operating Temperature (C)66 °C

Change out pressure drop (bar)1.03 bar

Change out pressure drop (psid)15 psid

Maximum differential pressure rating (bar)3.5 bar

Maximum differential pressure rating (psid)50 psid

Initial Pressure Drop (bar)0.14 bar

Initial Pressure Drop (psid)2 psid

Separation level (ppmv)≤15ppm free water content (via AquaGlo detection)

Micron rating for solids removal1 μm Beta 200

IFT LimitEffective above 3 IFT

Coalescer Length (Imperial)6 in

Coalescer Length (Metric)15.2 cm

Coalescer Diameter (Imperial)2.75 in

O-Ring MaterialFluoropolymer Elastomer O-Ring

Hardware MaterialStainless Steel

End Cap MaterialEpoxy Potted Stainless Steel
