Replacement for F004 Air Filter Vacuum Pump Inlet Filter External Thread Connect Size G1-1/2

Replacement for F004 Air Filter Vacuum Pump Inlet Filter External Thread Connect Size G1-1/2

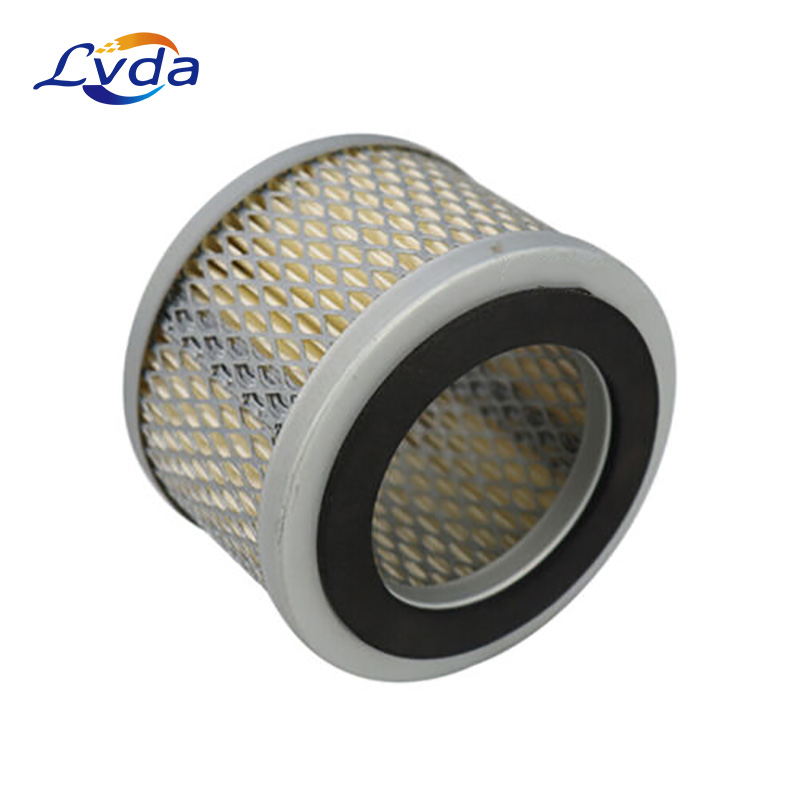

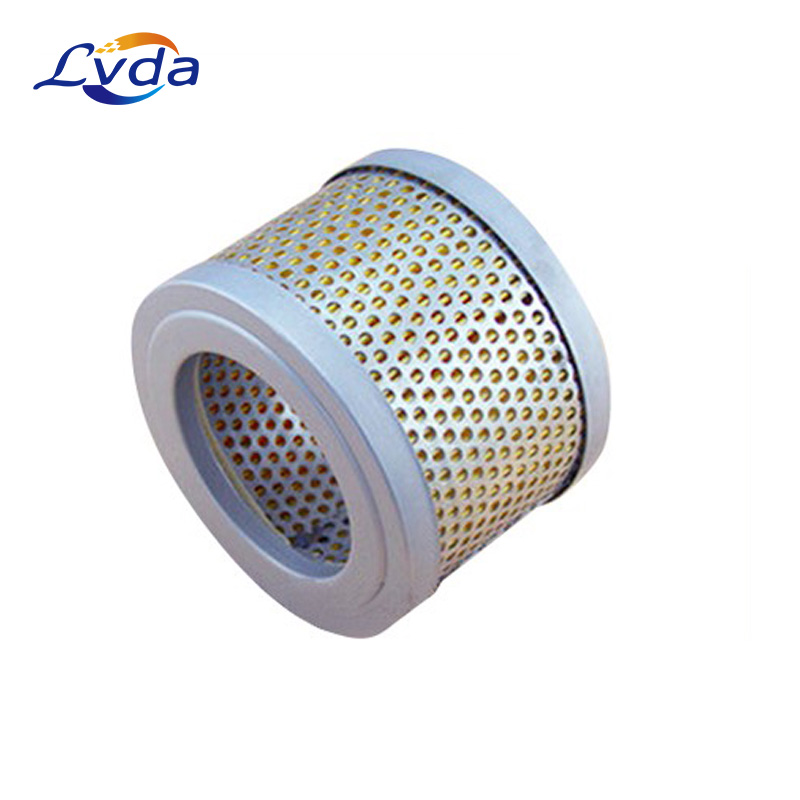

Vacuum pump filter element

Model Number: F004

Rated flow m3h : 100

*A(Inch) : G1 1/4*

D(mm) : 110

E(mm) : 70

Weight KG : 1.11

Product Details

F- series vacuum filter

It is widely used in industrial applications of vacuum systems.

Effectively prevent solid particles or dust is sucked into the vacuum pump or system.

Reduce pump wear, improve the reliability of operation of the pump, extend the service life of the pump, can effectively protect the components of the vacuum system.

Product features

1.Consist of a steel housing and a lid with quick locking clips

2.Rugged all steel construction for heavy duty applications

3.Quickly exchangeable cartridge

4.Large dirt holding capacity and easy cleaning

5.High seperation efficiency 99% removal for 5micron

6.brazed fittings for high vacuum duty F006

7.Produced by O-ring seal, the maximum vacuum value lower than 1Pa

8.By gas temperature: -15 to 90 degrees

Product parameters

Model	F004
Place of Origin	Henan, China
Brand Name	LVDA
Life span	6000- 8000h
Certificate	ISO9001
Quality	100% Tested
Working temperature:	-10~+100℃
Working pressure:	-21~210 bar
Rated flow m3h	100
*A(Inch)	G1 1/4*
*B(Inch)	G1 1/4*
C(mm)	Φ146
D(mm)	110
E(mm)	70
F(mm)	75
Weight KG	1.11
