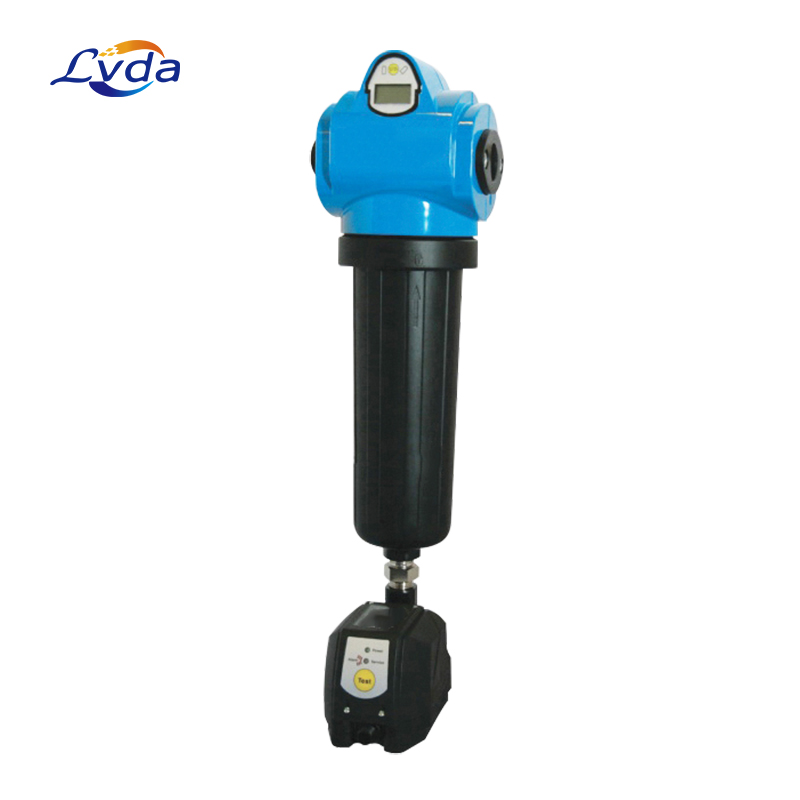

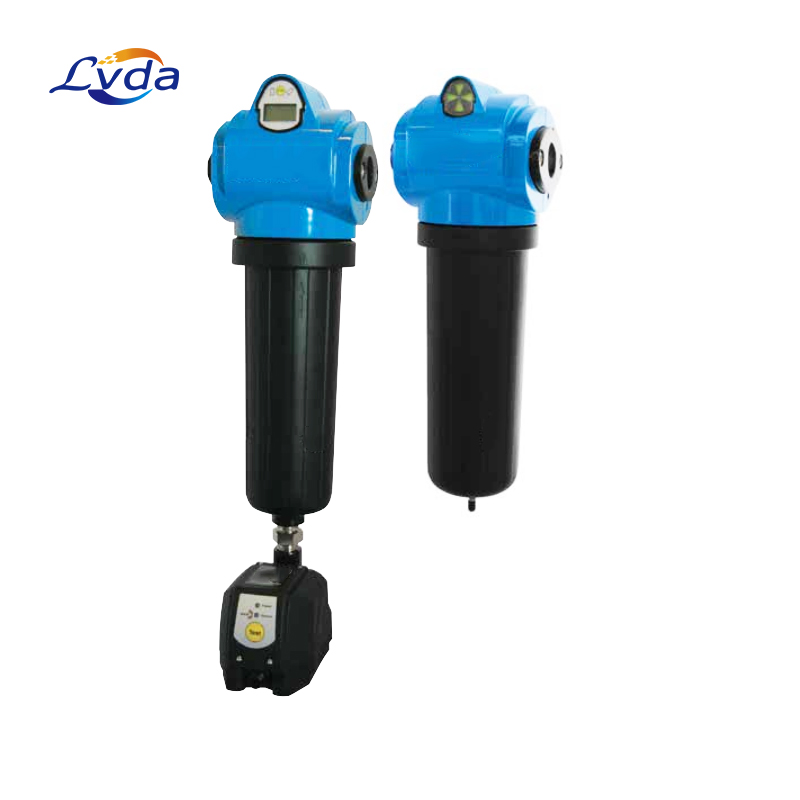

Replacement for Ultra-Filter DF0070

Replacement for Ultrafilter Filter

Model Number: DF0070

Perm. operating temperature : +1°C / +65°C

Max. operating pressure : 16 bar

Test pressure : 22.9 bar

Filter housing : Aluminium die cast

Sealings : Viton

Product Details

The filters Ultra-Filter DF are intended for the processing of compressed air or other gases in different areas of applications.The intelligent overall concept of the filter unites the following characteristics:

• high performance • effiency • compactness • easy of use • flexibility• safety

Validated performance data acc. to ISO 12500-1 for reliable achievement of compressed air quality suitable to the application acc. to ISO 8573-1. Besides energy cost savings by the filter design, the use of the Economizer offers further saving achievements through timely replacement of the used filter elements. The most costeffective replacement time for the filter element is calculated and LEDs then signal that the "filter exchange" is neccessary. With 9 sizes the Ultra-Filter covers the performance range from 35 to 1100 m³/h flow rate and hence conventional compressor capacities between 2 and 120 KW.

Product features

1.Validated performance data acc. to ISO 12500-1

2.Intelligent overall concept

3.Flow-optimised filter housing and filter element design

4.Bayonet fixing between filter head and filter bowl; element can be removed together with filter bowl; filter head with integrated differential pressure indicator can be rotated

5.Little installation height for the filter element exchange, differential pressure indicator integrated in filter head

6.Changing the coding clip inside the filter cover allows the filter element to be rotated and thus change the flow direction

7.Filter cannot be opened under pressure due to bayonet lock

8.Filter housings immersion-laquererd on the inside and outside surface

Product parameters

Model:	DF0070
Place of Origin:	Henan, China
Brand Name:	LVDA
Life span:	6000- 8000h
Certificate:	ISO9001
Quality:	100% Tested
Perm. operating temperature +	+1°C / +65°C
Max. operating pressure	16 bar
Test pressure	22.9 bar
Filter housing	Aluminium die cast
Econometer	Polymer
Float drain	Polymer / aluminium mold cast
Sealings	Viton

Size housing/ element	Flow rate* m3/h	Volume (l)	Weight* (kg)	A mm	B mm	C	D mm	E mm	F mm	G mm	H min./ max. mm	l mm
0035	35	0.20	0.5	254	76	G 1/4	186	100	27	85	5	84
0070	70	0.40	0.9	297	103	G 3/8	222	115	27	107	5/34	107
0120	120	0.50	1.0	341	103	G 1/2	266	150	27	107	5/34	107
0210	210	1.15	2.0	382	139	G 3/4	300	180	27	140	5/53	150
0320	320	1.50	2.2	442	139	G 1	360	250	27	140	5/53	150
0450	450	5	5.2	586	190	G1 1/4	487	250	27	203	5/73	190
0600	600	5	5.2	586	190	G 1 1/2	487	250	27	203	5/73	190
0750	750	5	5.2	586	190	G 2	487	250	27	203	5/73	190
1100	1100	6	7.2	764	190	G 2	665	250	103	203	5/73	190
