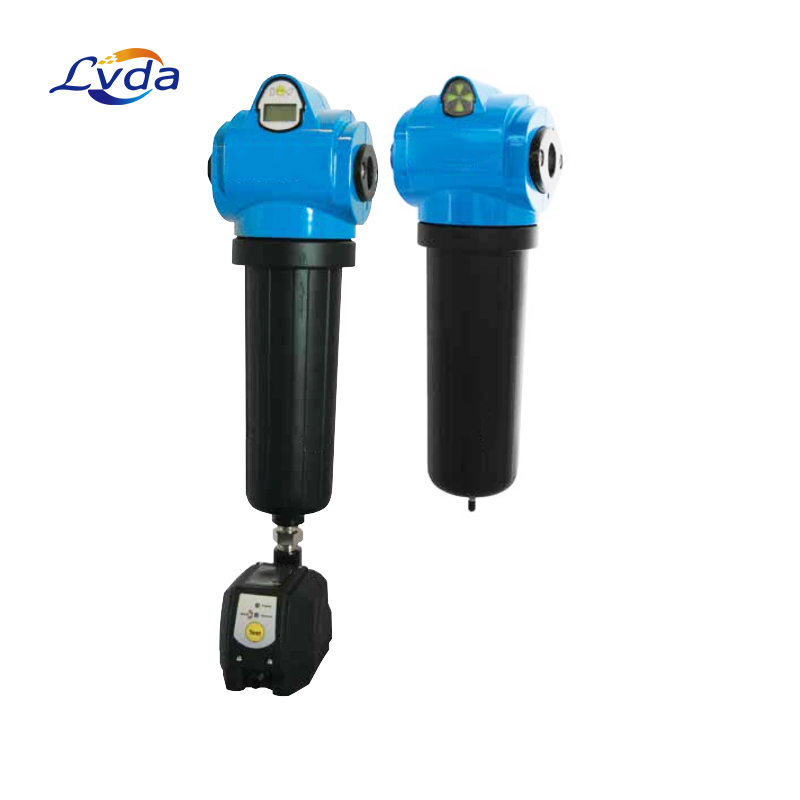

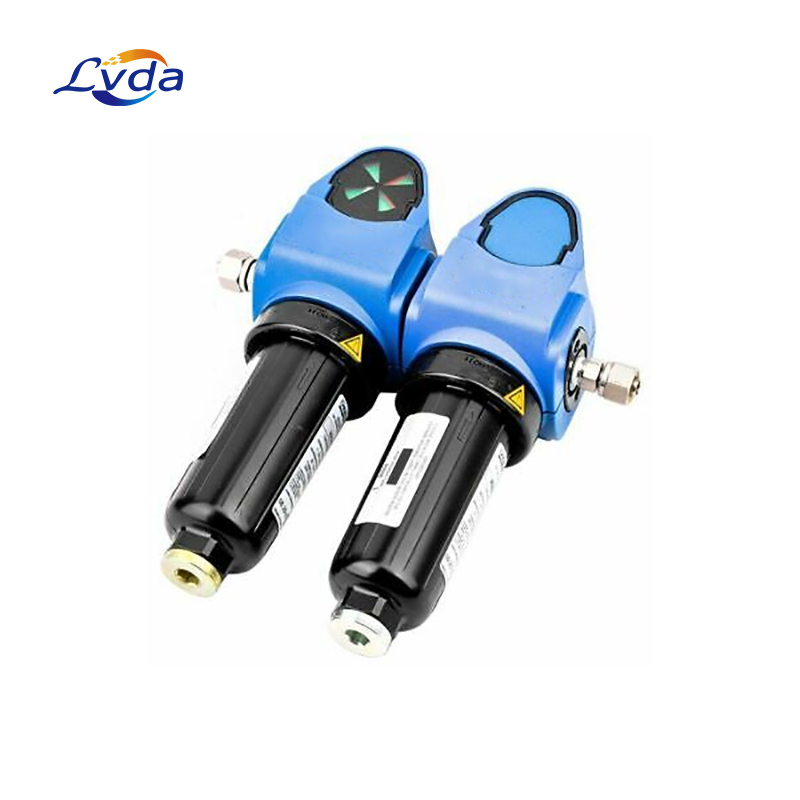

Replacement for Ultra-Filter DF 0035

Replacement for Ultrafilter Filter

Model Number: DF 0035

Test pressure : 22.9 bar

Certificate: : ISO9001

Filter housing : Aluminium die cast

Float drain : Polymer / aluminium mold cast

Sealings : Viton

Product Details

The filters Ultra-Filter DF are intended for the processing of compressed air or other gases in different areas of applications.The intelligent overall concept of the filter unites the following characteristics:

• high performance • effiency • compactness • easy of use • flexibility• safety

Validated performance data acc. to ISO 12500-1 for reliable achievement of compressed air quality suitable to the application acc. to ISO 8573-1. Besides energy cost savings by the filter design, the use of the Economizer offers further saving achievements through timely replacement of the used filter elements. The most costeffective replacement time for the filter element is calculated and LEDs then signal that the "filter exchange" is neccessary. With 9 sizes the Ultra-Filter covers the performance range from 35 to 1100 m³/h flow rate and hence conventional compressor capacities between 2 and 120 KW.

Product features

1.Reliable achievement of compressed air quality acc. to ISO 8573-1

2.Flow range, filtration grades, effiencies and available options perfectly meet requirements of industrial air purification.

3.Low pressure losses, thereby saving of energy costs.

4.Easy to use construction - simplified filter replacement; simple installation and assembly.

5.Compact, space-saving construction - installation within smallest space possible

6.High flexibility - filters can be either used as coalescense filters or particulate filters

7.High safety during operation

8.Ensures long-term corrosion protection, in particulary against aggressive condensates.

Product parameters

Model:	DF0035
Place of Origin:	Henan, China
Brand Name:	LVDA
Life span:	6000- 8000h
Certificate:	ISO9001
Quality:	100% Tested
Perm. operating temperature +	+1°C / +65°C
Max. operating pressure	16 bar
Test pressure	22.9 bar
Filter housing	Aluminium die cast
Econometer	Polymer
Float drain	Polymer / aluminium mold cast
Sealings	Viton

Size housing/ element	Flow rate* m3/h	Volume (l)	Weight* (kg)	A mm	B mm	C	D mm	E mm	F mm	G mm	H min./ max. mm	l mm
0035	35	0.20	0.5	254	76	G 1/4	186	100	27	85	5	84
0070	70	0.40	0.9	297	103	G 3/8	222	115	27	107	5/34	107
0120	120	0.50	1.0	341	103	G 1/2	266	150	27	107	5/34	107
0210	210	1.15	2.0	382	139	G 3/4	300	180	27	140	5/53	150
0320	320	1.50	2.2	442	139	G 1	360	250	27	140	5/53	150
0450	450	5	5.2	586	190	G1 1/4	487	250	27	203	5/73	190
0600	600	5	5.2	586	190	G 1 1/2	487	250	27	203	5/73	190
0750	750	5	5.2	586	190	G 2	487	250	27	203	5/73	190
1100	1100	6	7.2	764	190	G 2	665	250	103	203	5/73	190
