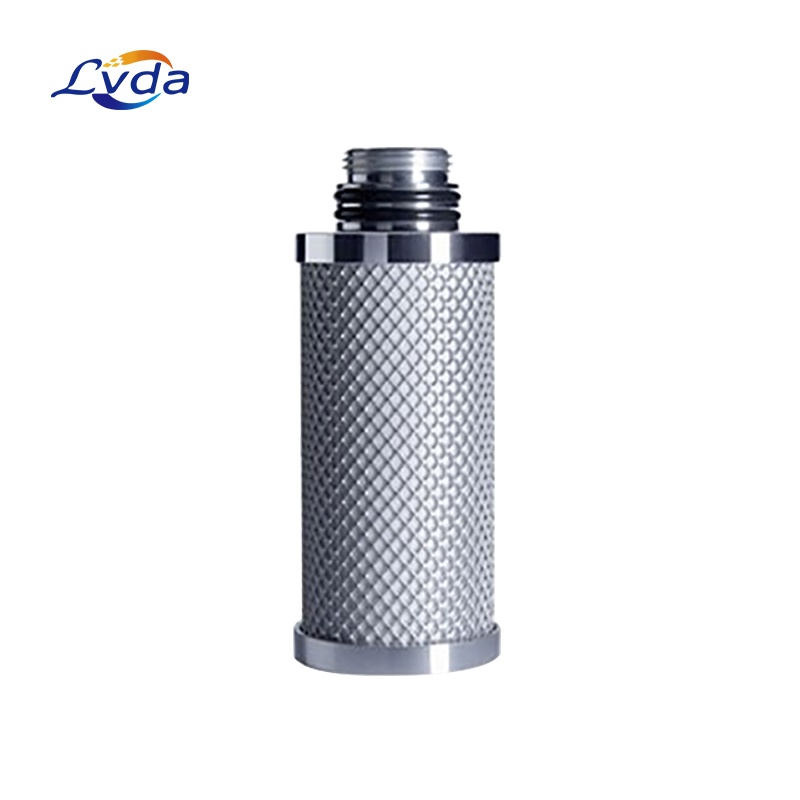

Replacement ULTRAFILTER Prefilter element PE 07/30 (AG 0048)

Replacement ULTRAFILTER Prefilter element PE 07/30 (AG 0048)

Replacement for Ultrafilter Filter

Model Number: PE07/30

Max temperature : 80°C

Material(s) : Polyethylene

Gasket materials : Perbunan Gaskets

Connection : Aluminium end caps

Degree of filtration : 25 µm

Product Details

Ultrafilter offers filter elements for most compressed air applications. These high quality filter elements are made with the finest pleating technology and aluminum end caps. Unique to the industry with their extremely low differential pressure.PE elements are made of a sintered polyethylene filter media and guarantee absolute retention rates. By using various filtration mechanisms – such as direct impact and sieve effect – contaminants down to the size of 25μm are being retained.PE filter element filter down to 25 µm is designed to have extremely low differential pressure of 0.03 bar.Comes with alu end cap and O-rings.Suitable for Filterhus AG / AG SA 0048.

Product features

1.Pure highly molecular polyethylene filter media

2.High dirt holding capacity and low differential pressure

3.Guaranteed retention rate

4.Homogenous pore structure for optimised regeneration capabilities

Product parameters

Max Differential pressure	2 bar@ 20°C
Degree of filtration	25 µm
Material(s)	Polyethylene
Max temperature	80°C
Gasket materials	Perbunan Gaskets
Connection	Aluminium end caps

Type	Particle Filtration rate	Efficiency	Residual oil content	Max.differential pressure
PE	25 μm	99%	N/A	2 bar at 20°℃
SB	25 μm	99%	N/A	2 bar at 20℃
FF	0,01 μm	99.999%	0,1 mg/m3	5 bar at 20°℃
MF	0,01 μm	99.99998%	0,03 mg/m3	5 bar at 20°℃
SMF	0,01 μm	99,99999%	<001 mg/m3	5 bar at 20°℃
AK	Activated Carbon	N/A	0,003 mg/m3	2 bar at 20°℃
