Product Details

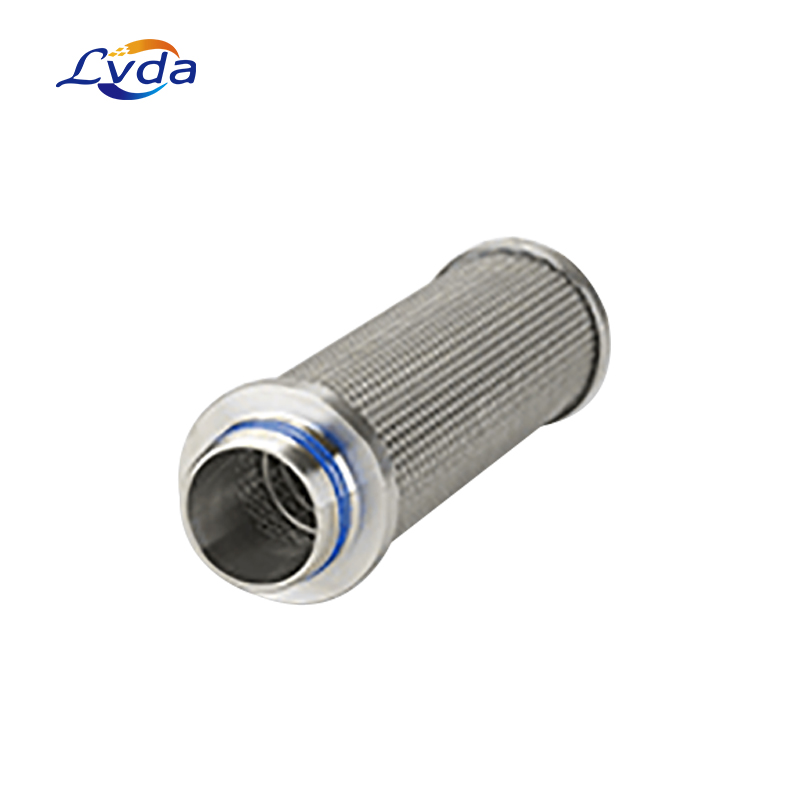

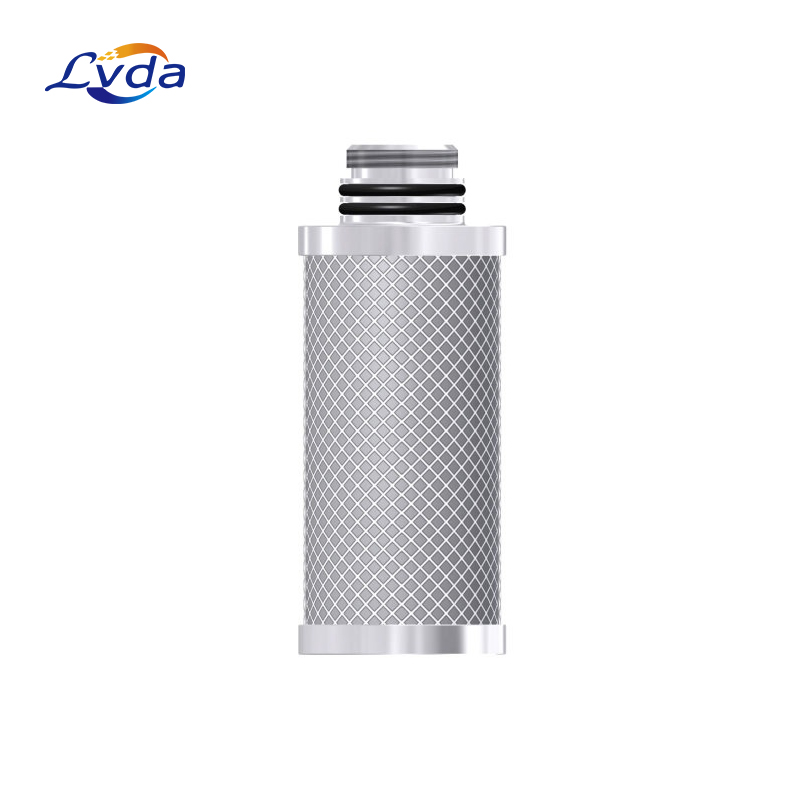

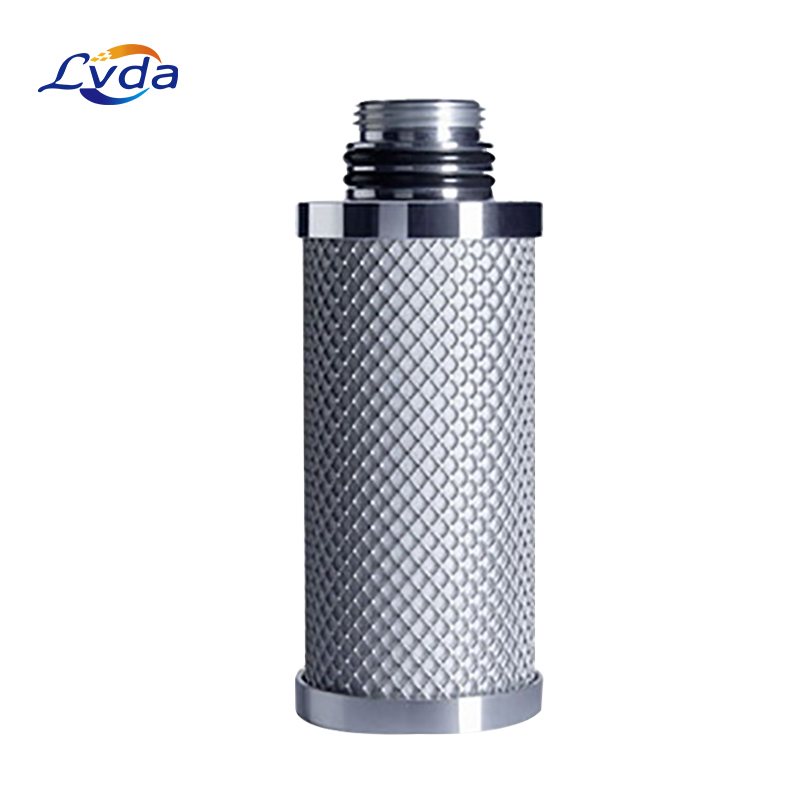

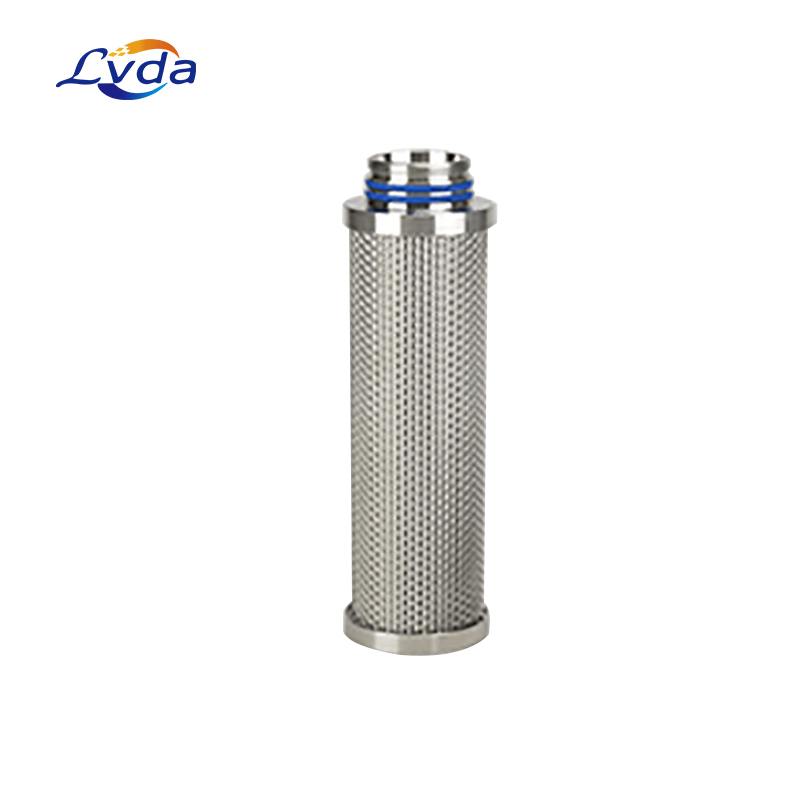

SMFP filter used to remove water and oil aerosols and particles from compressed air and gases.
This filter is for the filtration and is used before the compressor.
This versatile filter is available in sizes for our complete line of compressed air filter housings.
Retention Rate by a particle size of 0.01 microns: 99.99999%
The residual oil content at an inlet of 3 mg / m3:
Differential pressure at start-up: 0.09 bar
Maximum differential pressure at 20 ° C: 5 bar (independent from the working pressure)
The product emoves water, oil aerosols, and compressed air and gas particles. The SMF and SMFP filter elements are suitable for AG, SG and HD filter housings. The P-SMF filter elements are used in our P-EG and PG-EG houses.
Ultrafilter offers filter elements for most compressed air applications. These high quality filter elements are made with the finest pleating technology and aluminum endcaps. Unique to the industry with their extremely low differential pressure. The FF/MF/SMF filter elements are made with a pleated oleophobic filter media that rejects oil and water. Advanced pleating techniques mixed with nano technology, makes our “High Performance” filters much more effective than a standard filter, as the pleating provides a 450% larger filtration surface per square inch. The special pleating also secures a much larger particle retention capacity. The benefits of using this type of filter is low differential pressure, up to 70% lower energy costs and improved efficiency of filtration.
Product features
1.Binderfree, thermally welded nanofilter media. Low differential pressure and high particle load
2.Oleophobe filter edia .Rejects oil and water
3.Pleated filter media. 450% larger filtration surface, high particle load capacity, low air flow speed
4.Support sleeves of stainless steel (316L). Extremely large free flow, secure and long operation
Product parameters
Model: | SMFP03/10 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | TS16949/ISO9001:2015 |
Efficiency: | 99.99% |
Quality: | 100% Tested |
Material: | Glassfiber, Stainless steel, Filter paper |
Diameter: | 42.00 mm |
Operating temperature | 1,5 °C~65 °C |
Height: | 76.00 mm |
Grade: | SMFP |
End cap material: | Aluminium |
Max Differential pressure | 5 bar @ 20°C |
Material(s) | Borosilicate, cerex and polyurethane |
Connection | Aluminium end caps |
Working Temperature | 80°C |
Gasket materials | Perbunan gaskets |
Residual oil content | <0,01 mg/m3 |
Start differential pressure | 0,09 bar |
Retains Particles | 99.999% (0.1 μm) |
Product application
• Chemical and petrochemical industry
• Pharmaceutical industry
• Food & beverage
• Plastic industry
• Process filtration
• Instrumentation air
