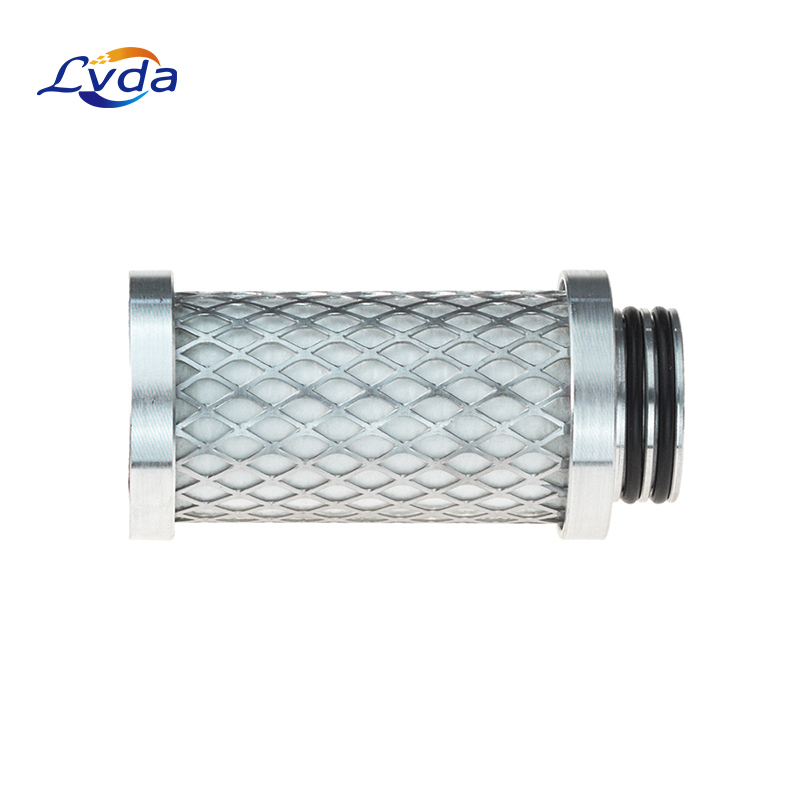

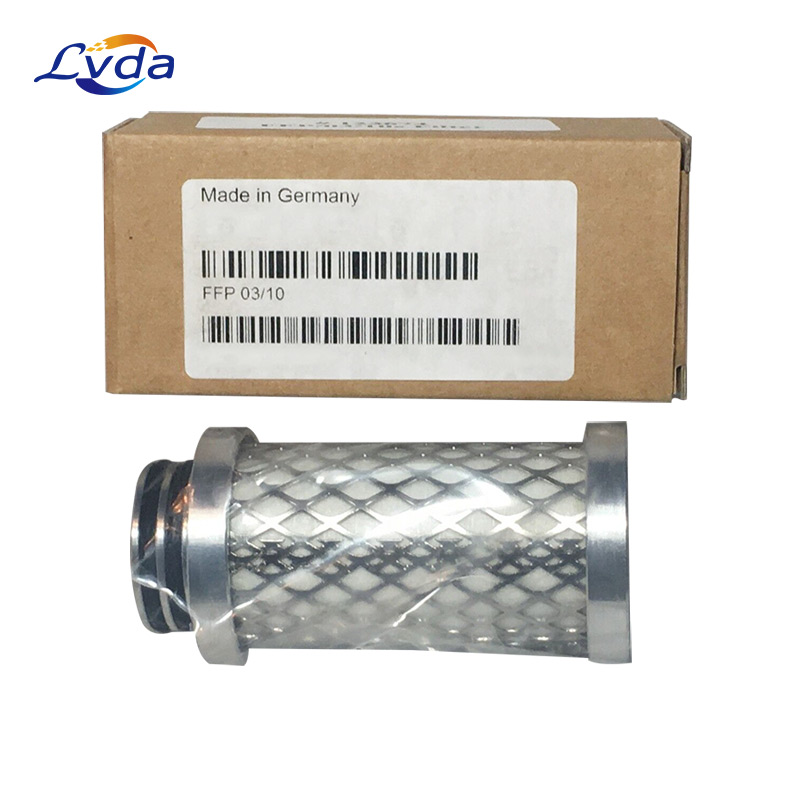

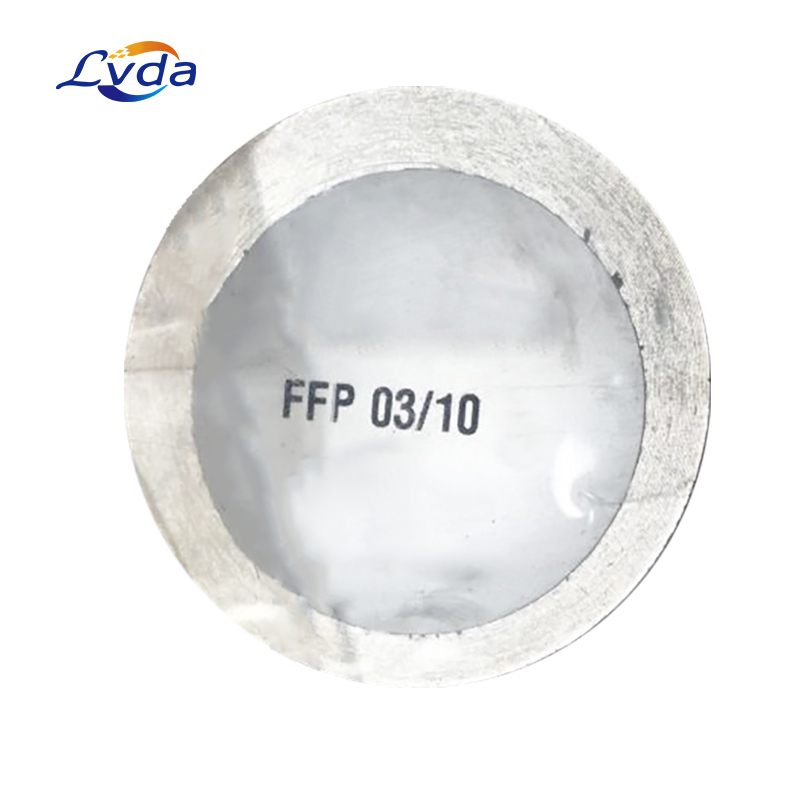

Replacement for FFP 03/10 Ultra Filter element Ultra Filter

Product Details

This filter is for the filtration and is used before the compressor.

This versatile filter is available in sizes for our complete line of compressed air filter housings.

Retention Rate by a particle size of 0.01 microns: 99.999%

 The residual oil content at an inlet of 3 mg / m3: 0.1 mg / m3

 Differential pressure at start-up: 0.04 bar

Maximum differential pressure at 20 ° C: 5 bar (independent from the working pressure)

The filter elements are intended for high efficient removal of solid particles, oil aerosols, water, hydrocarbons, vapours and odours from compressed air(1) in applications, where silicon and grease free operation is required.And the filter element should be replaced at least once per year or when pressure drop reaches 350 mbar

Product features

1.Expanded inner and outer stainless steel sleeves for the secure hold of the filter medium - no danger of corrosion, large openings ensure low differential pressure drop and high throughput

2.Removal of liquid aerosols and solid particles down to 0.01 um - validated retention efficiency, high level of security and safety

3.Large surface area, large void volume (>94%) - high dirt holding capacity, guaranteed service lifetime

Silicone-free version.

Product parameters

Product application

1.Automotive

2.Electronics

3.Food & Beverages

4.Chemical

5.Petrochemical

6.Plastics

7.Paint

8.General Industrial application
