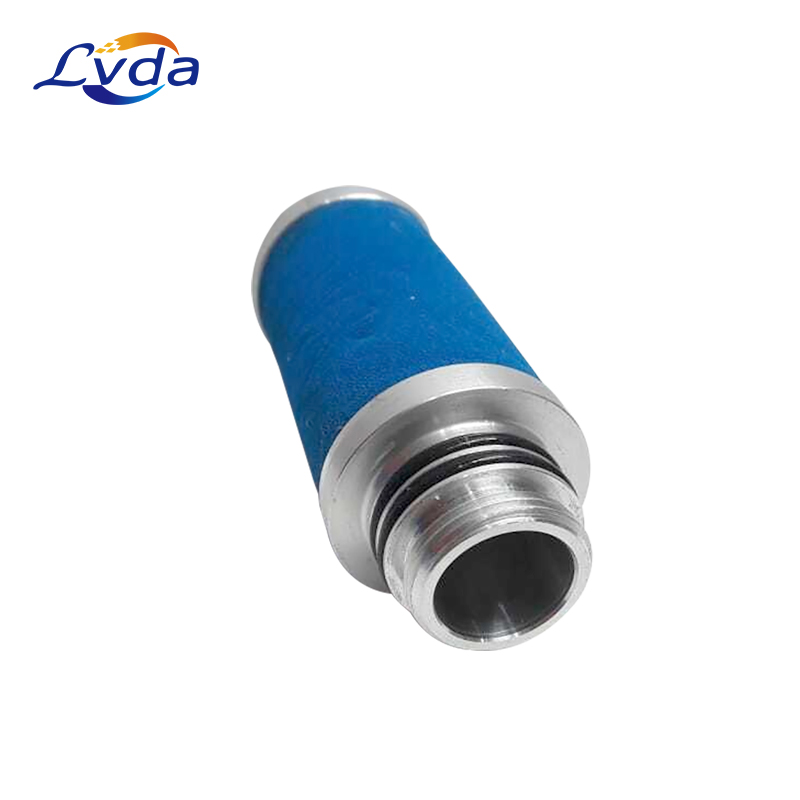

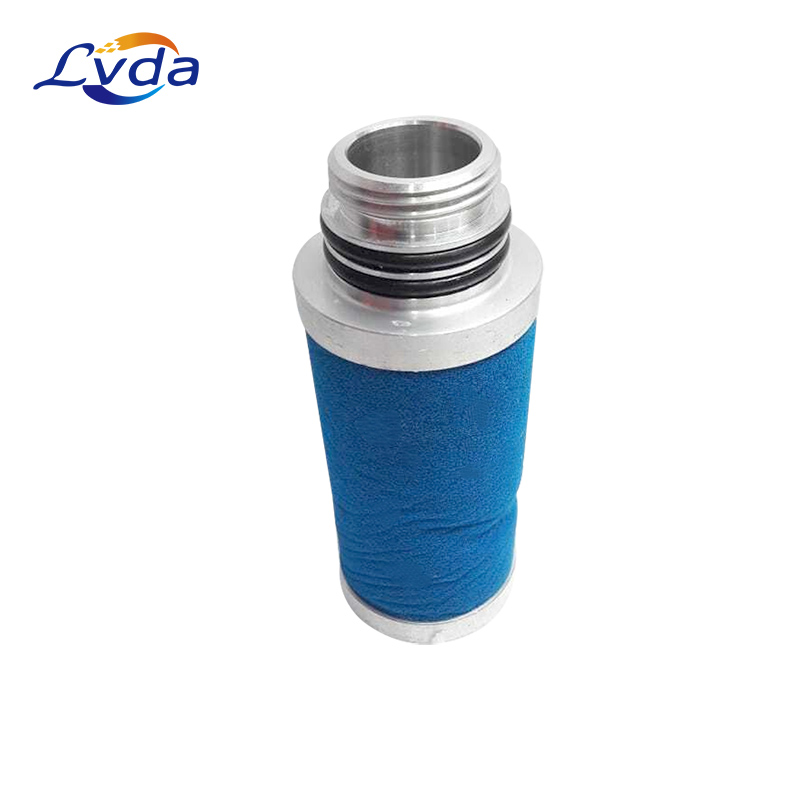

Replacement filter element is suitable for FF0420 Fine element
Replacement filter element is suitable for FF0420 Fine element
Replacement filter element is suitable for FF0420 Fine element

Replacement filter element is suitable for FF0420 Fine element

Replacement for Ultrafilter Filter

Model Number: FF0420

Max Differential pressure : 5 bar @ 20°C

Efficiency : 99.999%

Degree of filtration : 0,01 µm

Max temperature : 80°C

Residual oil content : 0,1 mg/m3

Get Quotation

Product Details

The shell of the precision filter cylinder is generally made of stainless steel, and the inner part uses tubular filter elements such as PP melt blown, wire fired, folded, titanium filter element, activated carbon filter element, etc. as filter elements. Different filter elements are selected according to different filter media and design processes to meet the requirements of effluent quality. The machine body can also be of the quick installation type, so that the filter element can be easily replaced and cleaned. The equipment is widely used in pharmaceutical, chemical, food, beverage, water treatment, brewing, petroleum, printing and dyeing, environmental protection and other industries. It is an ideal equipment for filtering, clarifying and purifying all kinds of liquids.


Product features

1. The precision filter has high compressive strength and high temperature resistance, and the filter element is not easy to deform;

2. The precision of the precision filter filtration system is high, and the pore diameter of the filter element is well proportioned;

3. The material cleanliness of the filter element of the precision filter is high, which does not pollute the medium of the filtering system;

4. Precision filter acid resistance, alkaline and other chemical solvents;

5. The filtering system of the precision filter has small friction resistance, large flow, strong sewage interception ability and long service life;

6. The precision filter has the advantages of high quality and low price, high cost performance, low operation cost, easy cleaning, and replaceable filter element.


Product parameters


Model

FF0420

Place  of Origin

Henan,  China

Brand  Name

LVDA

Life  span

2000-  4000h

Certificate

ISO9001:2008

Quality

100%  Tested

Max  Differential pressure

5  bar @ 20°C

Efficiency

99999%

Degree  of filtration

0,01  µm

Material(s)

Borosilicate,  cerex and polyurethane

Max  temperatur

80°C

Gasket  materials

Perbunan  gaskets

Residual  oil content

0,1  mg/m3

Start  differential pressure

0,04  bar

Connection

Aluminium  end caps

Product application

1.Chemical and petrochemical industry

2.Pharmaceutical industry

3.Prefiltration of sterile filters

4.Filling machines

5.Food & beverage industry

6.Packing machines

7.Process industry
