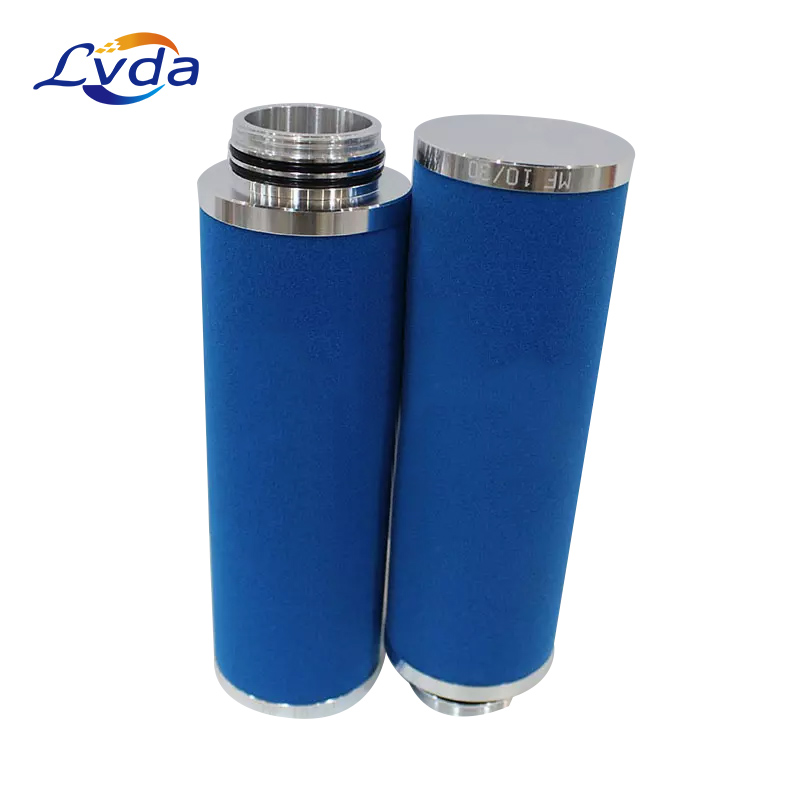

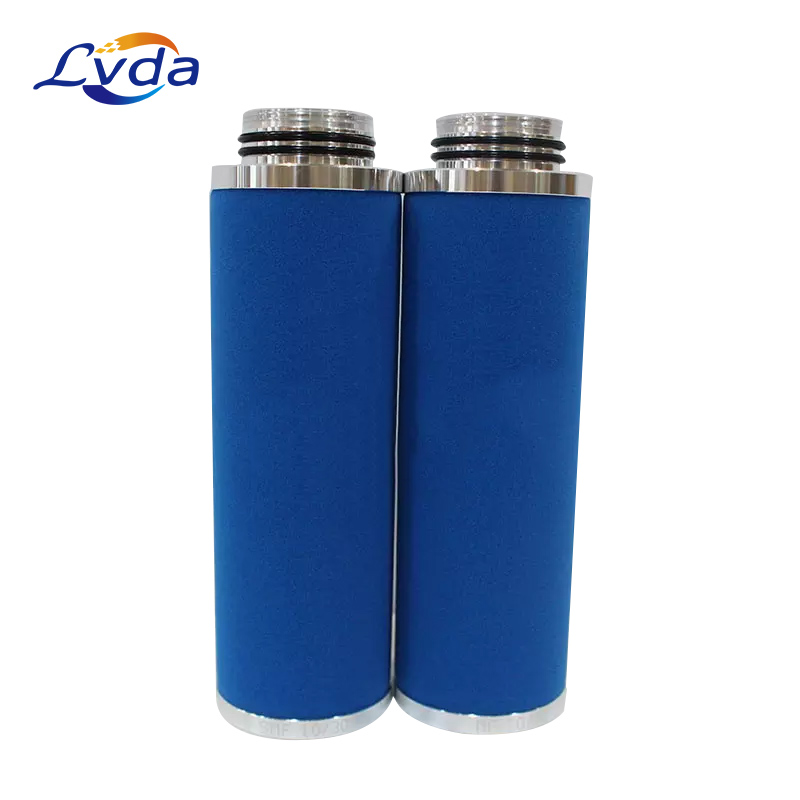

Replacement for ULTRAFILTER Fine element SMF30/30Pre-Filter High Efficiency Filter Element

Replacement for ULTRAFILTER Fine element SMF30/30Pre-Filter High Efficiency Filter Element

Replacement for Ultrafilter Filter

Model Number: SMF30/30

Max Differential pressure : 5 bar @ 20°C

Material(s) : Borosilicate, cerex and polyurethane

Max temperature : 80°C

Start differential pressure : 0,04 bar

Residual oil content : 0,1 mg/m3

Product Details

Specifications 90 Series Grade SMF Filter Element 0.01 Micron 0.01 PPM Oil Content Coalescing (Pre-Filter) Filters Often called the pre-filter since it is placed on the air line just prior to the air dryer, a coalescing filter removes oil, particles and moisture before it can come in contact with the desiccant in the dryer and ruin it.

Product features

1)Made of high quality materials;

2) High filtration efficiency;

3) High dirt-holding capacity;

4) All parts are under rigid quality control system.

Product parameters

Model	SMF30/30
Place of Origin	Henan, China
Brand Name	LVDA
Life span	6000- 8000h
Certificate	ISO9001
Quality	100% Tested
Working temperature:	-10~+100℃
Working pressure:	-21~210 bar
Max Differential pressure	5 bar @ 20°C
Material(s)	Borosilicate, cerex and polyurethane
Max temperature	80°C
Gasket materials	Perbunan gaskets
Residual oil content	0,1 mg/m3
Start differential pressure	0,04 bar
Connection	Aluminium end caps
Remove: Particles	99.999% (0.1 m)
Oil:	0.1 mg/m3
Filter surface:	30/30
