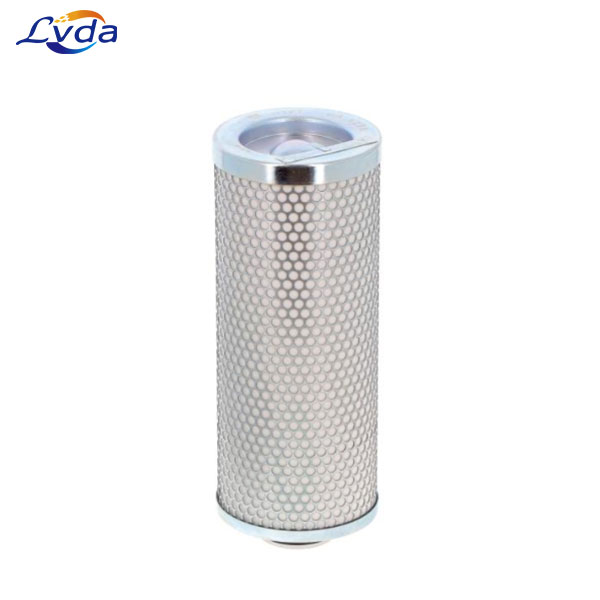

2250215-621 Air Oil Separator

Product Details

The 2250215-621 oil separator filter is engineered for heavy-duty air compressors. safeguarding sensitive equipment like pneumatic tools and control valves from oil contamination.​

Performance

The outer layer, crafted from reinforced polyester mesh, captures coarse oil droplets and solid particles. The middle layer features a micro-glass fiber matrix with gradient porosity, trapping submicron oil mist (≥0.1μm).

Treated with a high-temperature resin coating, the filter maintains integrity in environments ranging from -5℃ to 130℃. It is fully compatible with synthetic, semi-synthetic, and mineral compressor oils, resisting degradation and ensuring long-term performance stability.​

Specifications​

Separation accuracy: ≤0.05ppm​

Maximum operating pressure: 2.0MPa​

Nominal flow rate: 4.2m³/min​

Recommended service interval: 3000-4000 operating hours​

Mounting type: Threaded (G2")​

Core Benefits​
