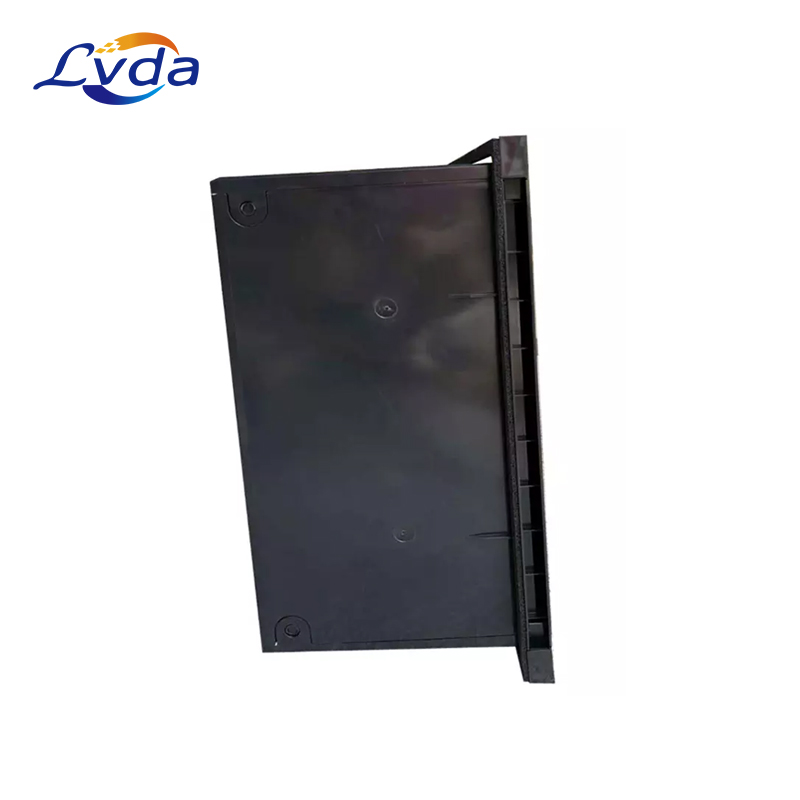

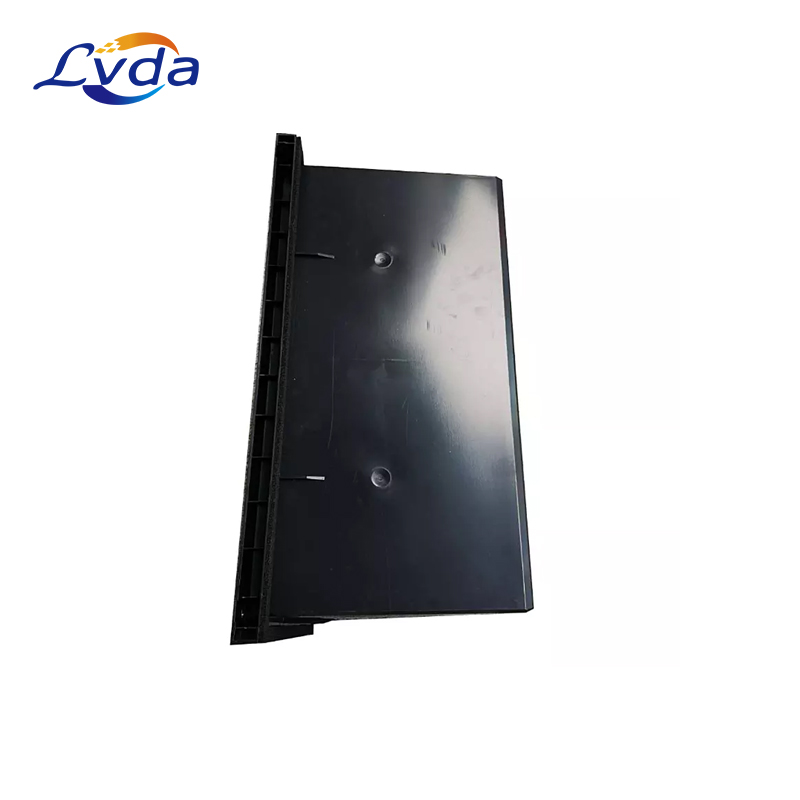

Replacement filter element is suitable for  Plate and frame filter CJV415371  Air filter element of centrifugal air compressor CJV415372
Replacement filter element is suitable for  Plate and frame filter CJV415371  Air filter element of centrifugal air compressor CJV415372
Replacement filter element is suitable for  Plate and frame filter CJV415371  Air filter element of centrifugal air compressor CJV415372

Replacement filter element is suitable for Plate and frame filter CJV415371  Air filter element of centrifugal air compressor CJV415372

Replacement for Sullair Filter

Model Number: CJV415371

Type 2: : Panel filter

Filter media: : Air

Weight: : 1-5KG

Filter area: : 13.4sqm

Initial pressure drop: : ΔPo≤190Pa

Get Quotation

Product Details

Monitor the status of the air filter element, and replace the filter element when the indicator pointer points to the red area (20-30 "water column, 51-76cm);


when the air filter maintenance table points to the red area when the unit is in full load operation or half a year later, the air filter element shall be replaced;


After 1000 hours of operation, replace the air filter element as required;


When the vacuum switch of inlet filter element monitors the intake air filter, if the pressure difference is too large, it will alarm automatically; the filter and other components are monitored by corresponding instruments. If there is a problem, the monitoring instrument will send out alarm signal and replace the filter element.

Product features



1. Fully enclosed structure is adopted to prevent dust from entering;



2. Surplus flow design: under the rated flow, the ultra-high efficiency air inlet filtration has 99.9% filtration accuracy (higher than is05011), and the filtration accuracy is close to 2ppm. The high-precision air filter can prolong the service life of various precision components;



3. The air inlet pressure loss is less than or equal to 2500pa, which greatly reduces the air loss and improves the unit efficiency;



4. Heavy duty design, 5 times higher ash capacity than the traditional air filter, prolonging the service life of the machine, longer maintenance cycle and lower maintenance cost;



5.High precision air filter design with pre separation structure. Filter element with large ash content and low initial pressure drop. At the same time, it can effectively ensure the stable operation of the unit in harsh environment.


Product parameters


Model:

CJV415371

Place  of Origin:

Henan,  China

Brand  Name:

LVDA

Life  span:

2000-  4000h

Certificate:

ISO9001:2015

Quality:

100%  Tested

Type  1:

Air  Filter

Working  temperature

-10~+100℃

Working  pressure

-21~210  bar

Filtration  accuracy:

≤5um

Type  2:

Panel  filter

 size

 standard

 Material

Glass  fiber, wood pulp filter paper, aluminum frame

Filter  media:

Air

Dimension(L*W*H):

592*592*290mm

Size  in inch:

23-3/8inch*23-3/8inch*11-1/2inch

Application:

Cleanroom

Usage:

to  clean air

Efficiency:

45%-95%

Weight:

1-5KG

Filter  area:

13.4sqm

Initial  pressure drop:

ΔPo≤190Pa

Final  Pressure drop:

ΔPmax=450Pa

Filter  Efficiency:

η≥ 99.9% @ 2μm

Air  Flow:

Q=4200m³/h  @164Pa


Product application

1.Desalting of Well Waters

2.Municipal Drinking Water

3.Power Generation Industry

4.Electronics and Semiconductor Industry
