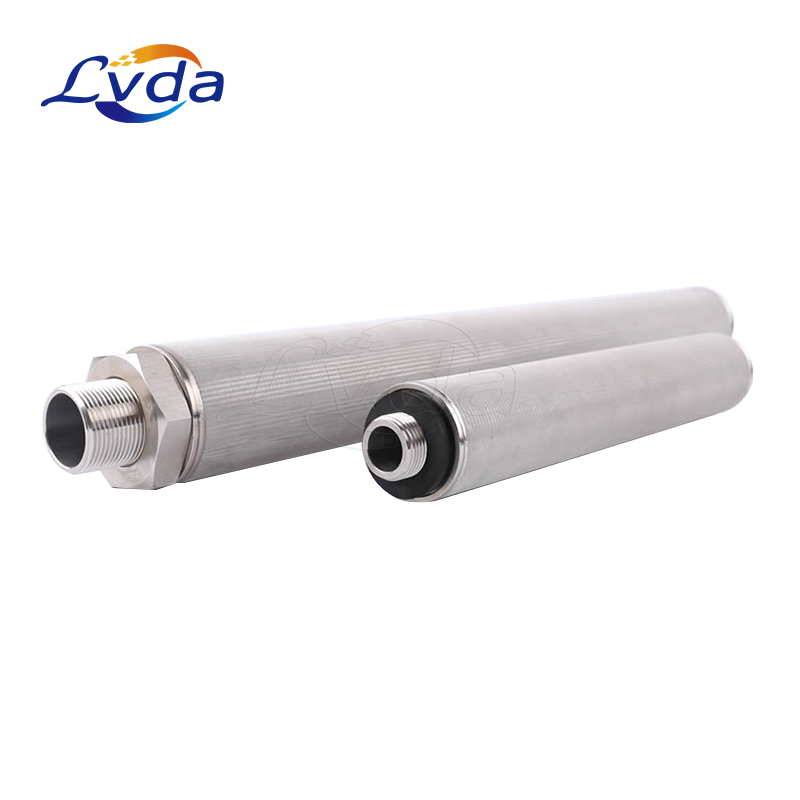

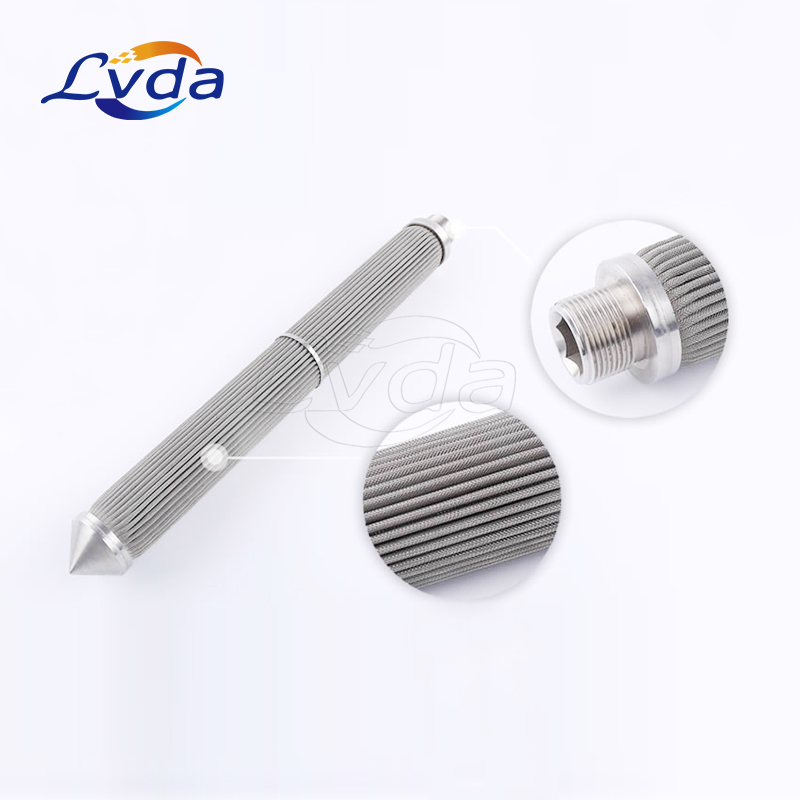

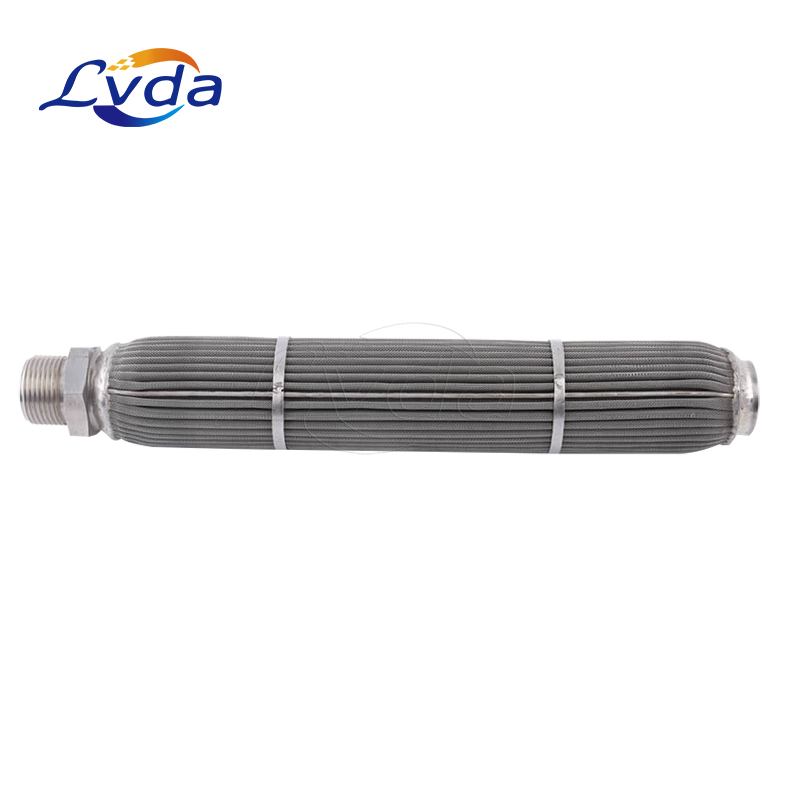

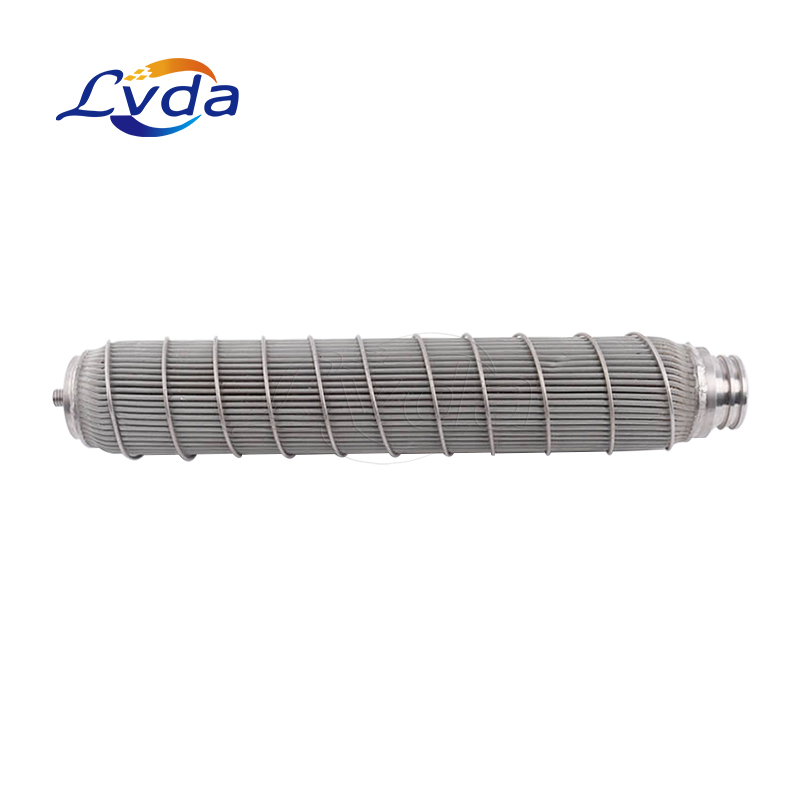

New sintered mesh filter cartridge

Product Details

New sintered mesh filter cartridge - Fine Permeability & Accurate Filter Precision

new sintered mesh filter cartridges are made from multi-layers sintered wire mesh, usually 5-layer stainless steel wire mesh. Our sintered filter cartridges has more strong structure, fine permeability and accurate filter precision, easy back wash cleaning. Beside above mentioned benefits, sintered mesh cartridges are resistance to corrosion, high temperature, and high pressure.

Its materials are all stainless steel construction, such as AISI304, AISI304L, AISI316, AISI316L. Filter rating range from 1 micron to 250 micron.

Sintered mesh filter cartridges are widely used in pharmaceuticals, fluidized beds, liquid and gas filtration, chemical processing, chemical fiber filtration, food and beverage, oil and gas filtration, polyester and water treatment industries.

Product parameters

Filter rating: 1–200 µm.

Standard sizes (mm): 300 × 1000, 300 × 1500, 500 × 1000, 600 × 1200, 1000 × 1000, 1200 × 1200,

1000 × 1500, 1200 × 1500.

Mesh layers: 2, 3, 4, 5, 6, 7.

Type: disc, tube, filter cartridge, flat panel, cone.

Material:AISI 304, AISI 304L, AISI 316, AISI 316L, alloy steel Hastelloy, Monel, Inconel, etc.

Product feature

High strength and durability.

Filter mesh is not easy to deform because of two protective layers.

Can be used for uniform filtration in high pressure or high viscosity environment.

Resistant to corrosion and high temperature.

Wide filter rating ranges.

Product application

Filter polyester, oil, pharmacy, food, beverage, chemical fiber products.

Water treatment and gas filtration.

Purification and filtration of liquid and gas.

Separation and recovery of solid particle.

Transpiration cooling under extremity high temperature.

Control air flow distribution, enhancement of heat and mass transfer, noise reduction, current limitation.

Filtration of highly viscous liquids; Nutsche filters, centrifuges, fluidised beds, silo aeration, applications in biotechnology.
