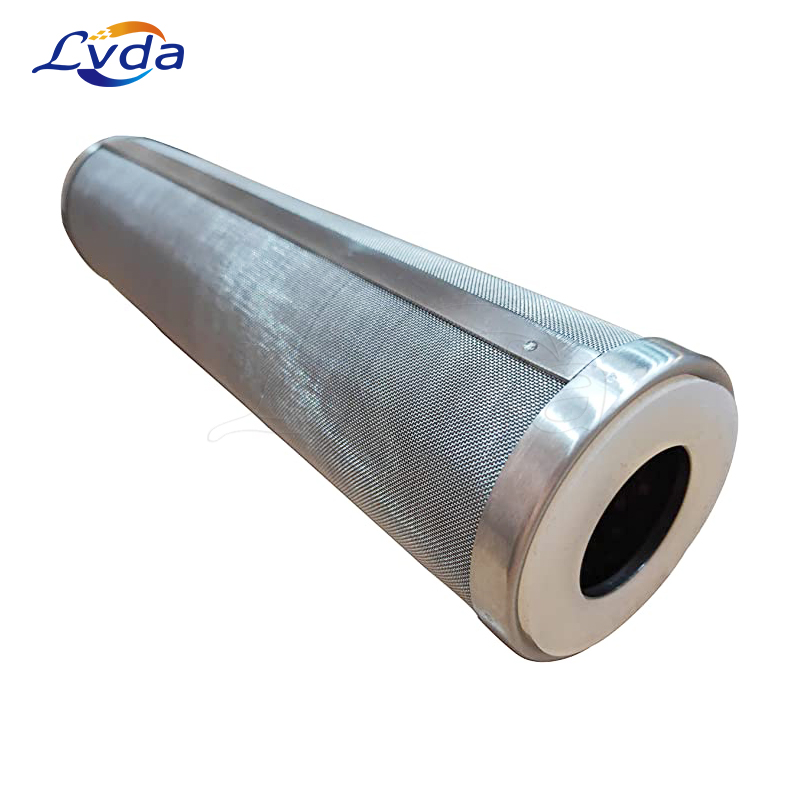

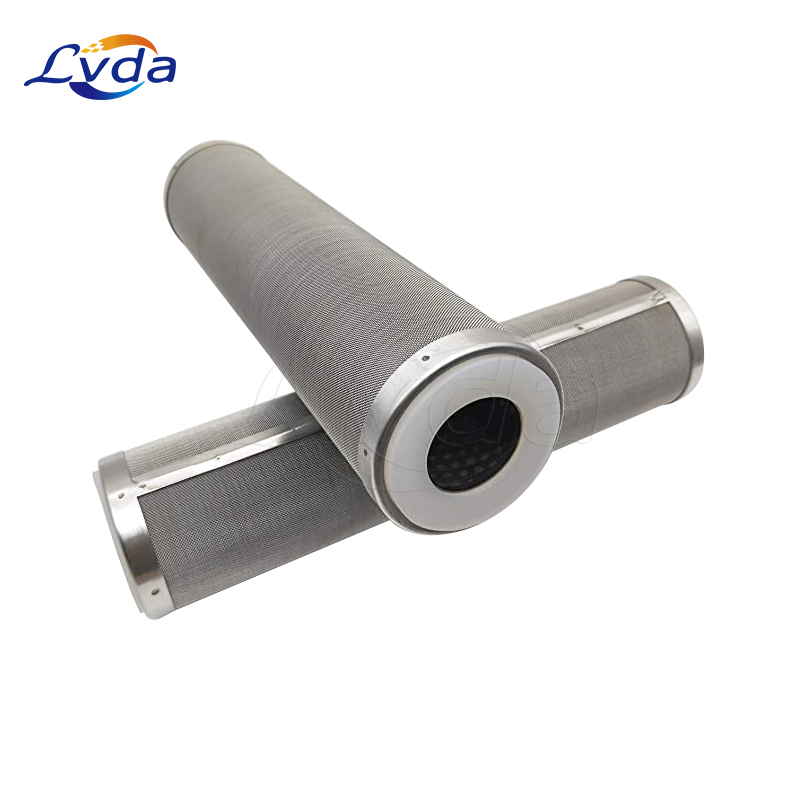

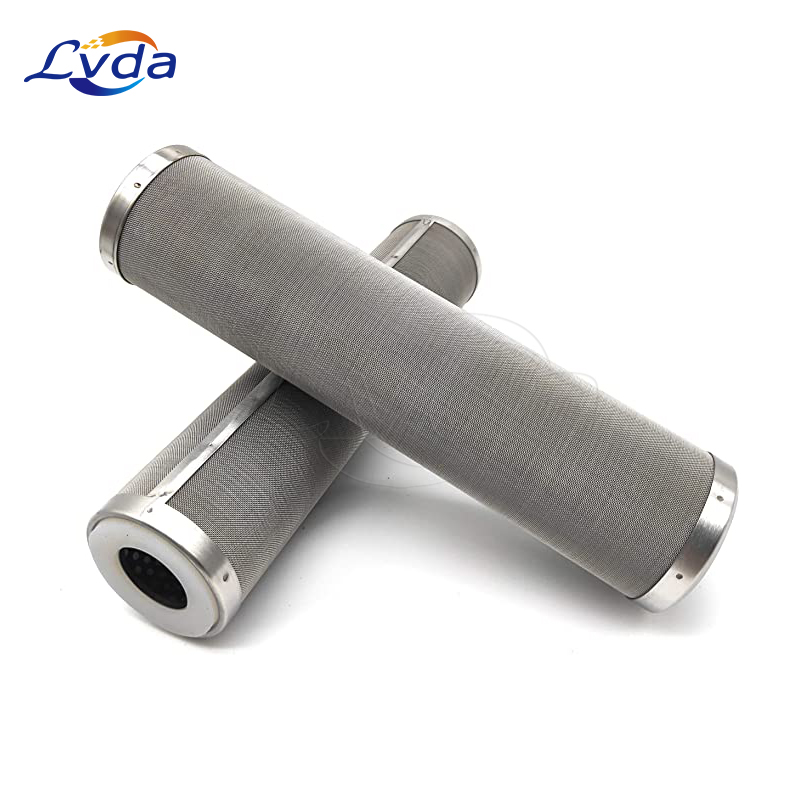

Stainless steel mesh filter cartridge

Product Details

Wire Mesh Filter Cartridge is made using a variety of different types of metal, but stainless steel is the most common because it is easy to clean and highly resistant to corrosion. Mesh filters are manufactured in a variety of types that have different uses. Some filters are larger and only hold back large particles in a stream, while others are very fine so that they let only the smallest particles through.

Product parameters

Size: 10" length x 2.5"OD

Filtration Rate: 50 micron

Material: High quality stainless steel of 304; Silicon sealing gaskets.

Construction: 3 - layer solid structure. With inner layer of a supporting frame, middle layer of 50 micron mesh, and outer layer of 300 micron mesh.

Product features

Excellent chemical resistance Cleanable and reusable.

High flow rates 25 or 30 GPM per 10" length.

High operating pressure to 50.

Wide service temperature, ranging from -200。C to 1000 °C.

All sizes and materials can be custom.

Reusable, quality filter cartridge with consistent pore size at the five retention ratings offered.

Extended filter area for each 10" length.

Rigid construction and uniform porosity.

Positive-crimp end pleat seal prevents particle bypass into the effluent stream.

Product applications

Pharmaceutical Industry

Pneumatic Conveying Systems

Power Plants

More industry filtration
