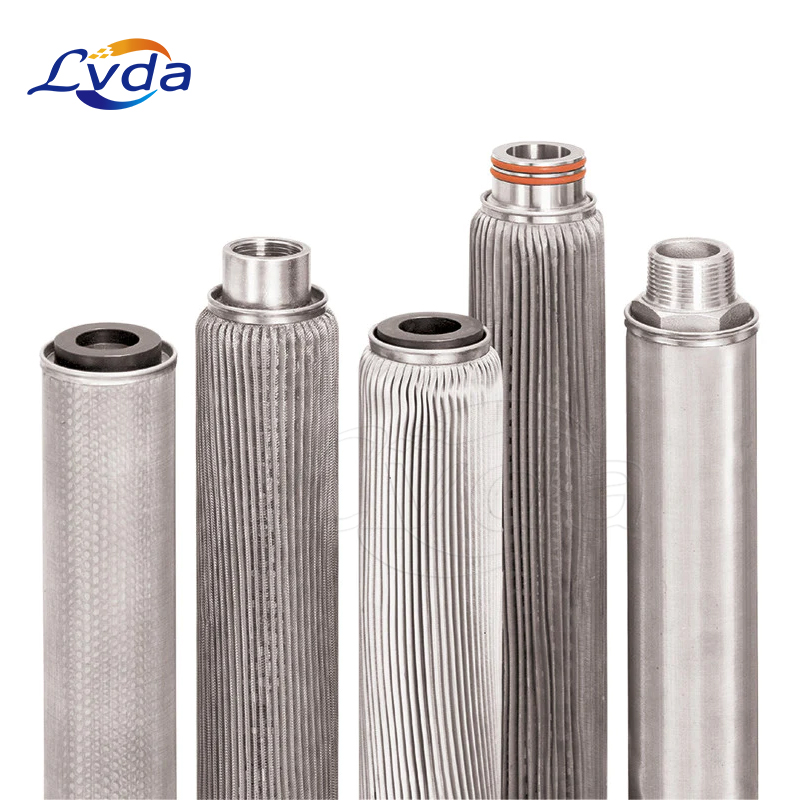

Stainless steel filtrafine pleated filter cartridge

Product Details

Stainless steel filtrafine pleated filter cartridge consists of stainless steel wire cloth strands woven in various mesh patterns to form absolute as well as nominal filtration ratings. Using our unique wire cloth, there are different construction material options for filter elements :

Pleated 304SS or 316SS

Cylindrical 304SS or 316SS

DOE, 222, 226 or 1" NPT end configurations

Buna, Viton or Teflon Seals

10", 20", 30" and 40" lengths

Our stainless steel filtrafine pleated filter cartridge are ideal for hostile or severe environments and applications. That is why cleanability is so important. All of our wire cloth stainless steel filter elements are easily restored back into service by back flushing, ultrasonic or other non-abrasive cleaning techniques. When used in filtration applications involving hazardous fluids, the cleanability of our stainless filter elements can significantly reduce disposal costs.

Product parameters

Dimensions:

Outside Diameter: 1.77" ~ 2.76" (45~70mm)

Lengths: Depend on your demand

Product features

Elements are manufactured from 304 or 316 stainless steel wire cloth material

Mesh Patterns — Square Weave, Twilled Dutch Weave, Plain Dutch Weave

Designed and tested to withstand collapse pressure ratings of 300-6,000 PSID

Temperature ratings from -100°F (-73°C) to 500°F (260°C)

Various micron ratings available from 2um to 1000um (nominal)

Various mesh sizes available (5um to 840um)

Stainless Steel filter elements are cleanable for long service life

Product applications

High-Temperature Applications 500°F (260°C)

Corrosive Fluid Applications

Cleanable Filter Elements  (Either by backflushing, ultrasonic or nonabrasive cleaning techniques)
