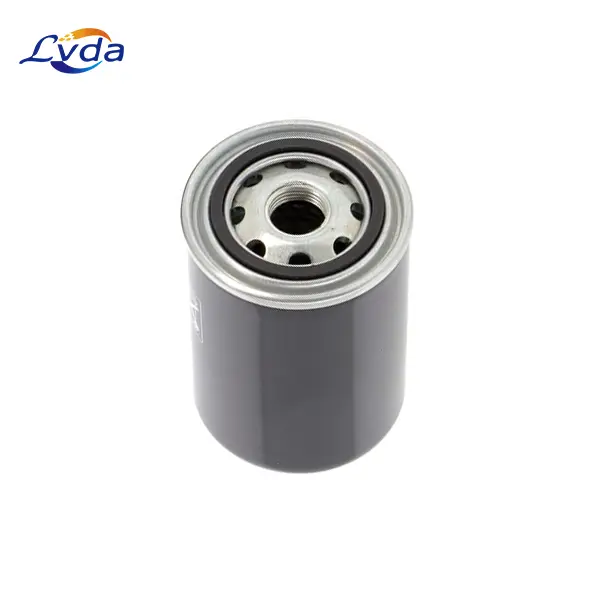

SH 8119 Oil Filter

Product Details

The SH 8119 is a high-performance spin-on oil filter primarily manufactured . It is designed specifically for industrial applications, such as screw/vane compressors and vacuum pumps.

Technical Specifications

External Diameter (d1): 93 mm

Gasket Diameter (d2): 62 mm

Total Height (h1): 143 mm

Nominal Flow Rate: 40 l/min

Max Operating Pressure: 14 bar (approx. 203 psi)

By-pass Valve Setting: 2.5 bar

Anti-drain Valve: Yes (opening pressure 0.12 bar)

Cross-Reference

SF Filter: SP 4320

Hifi Filter: SO 10034

Mann & Hummel: W 940 (varies by specific pressure rating)

Fleetguard: LF3403
