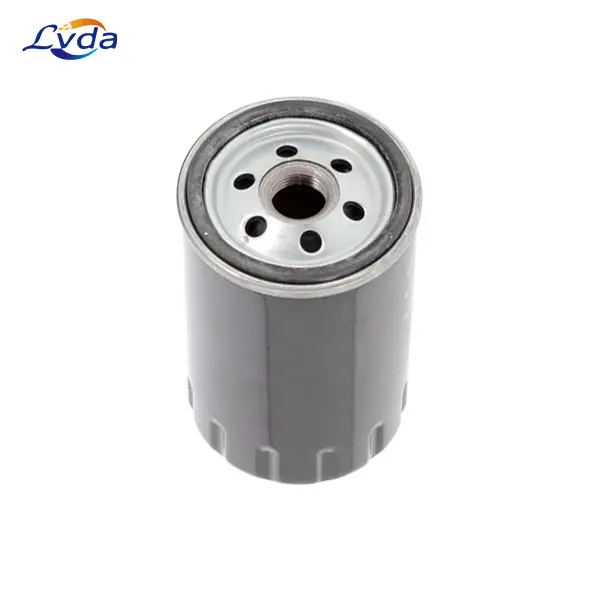

SH 8225 Oil Filter

Product Details

The SH 8225 is most commonly identified as a high-quality spin-on oil filter manufactured.

It is primarily used in air compressors and vacuum pumps . Its role is to remove contaminants from the lubricating oil to protect the internal components of the compressor.

Technical Specifications

Outer Diameter (D1): 76 mm (approx. 3 inches)

Thread Size (G): 3/4" - 16 UNF

Height (H): 123 mm (approx. 4.8 inches)

Seal Diameter (D2): 62 mm

Cross-Reference

Mann & Hummel: W 719/4

Hifi Filter: SO 6105

Baldwin: BT233

Gardner Denver: 43299100
