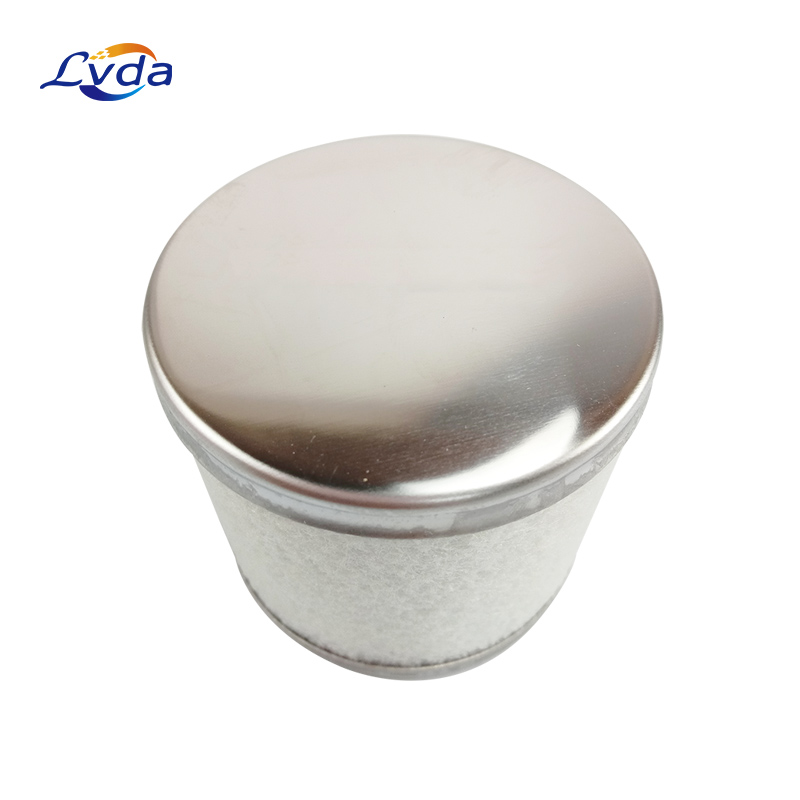

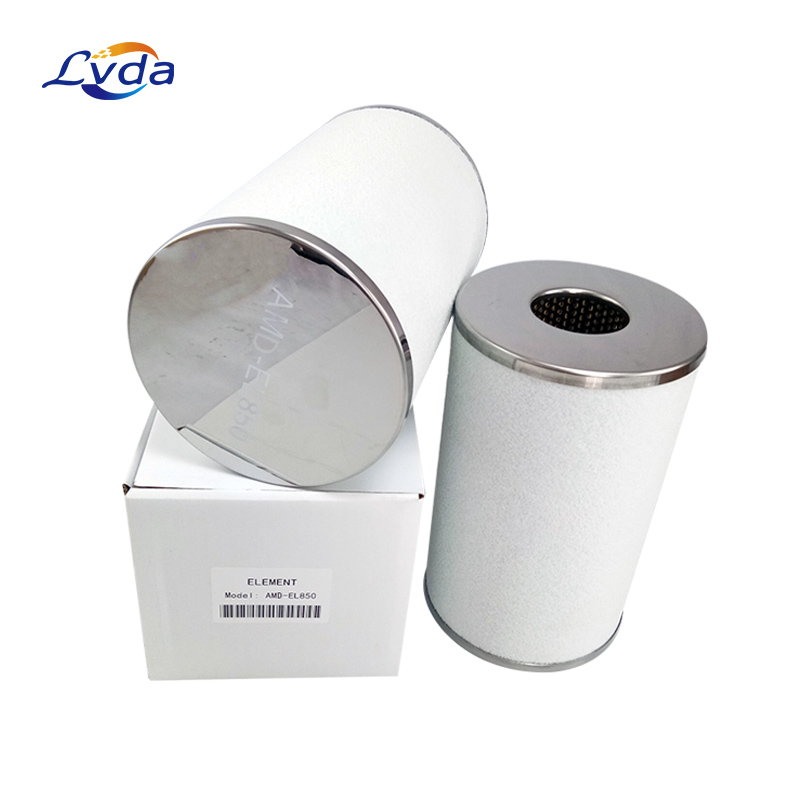

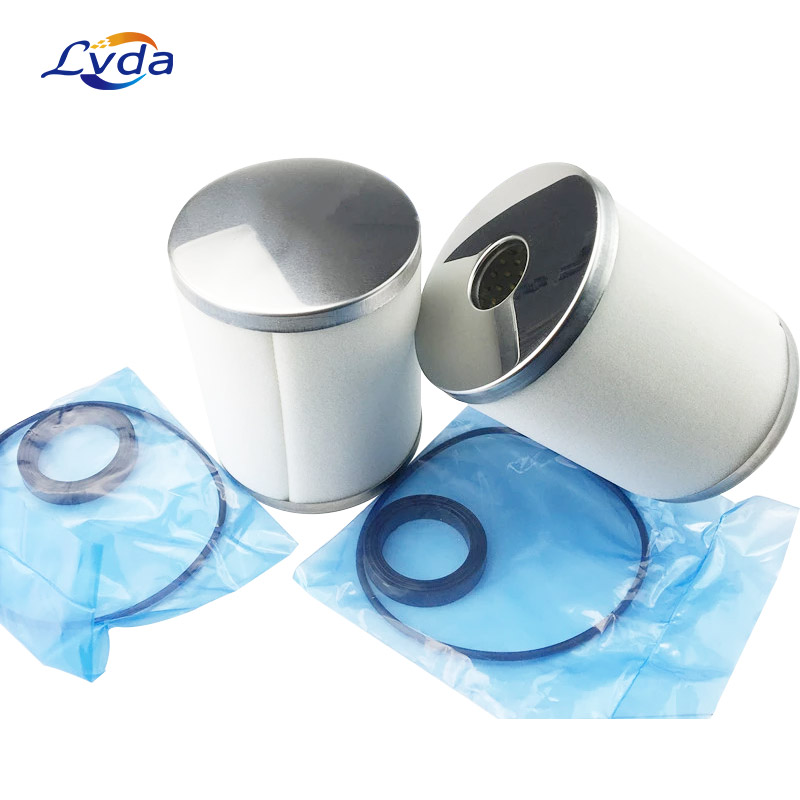

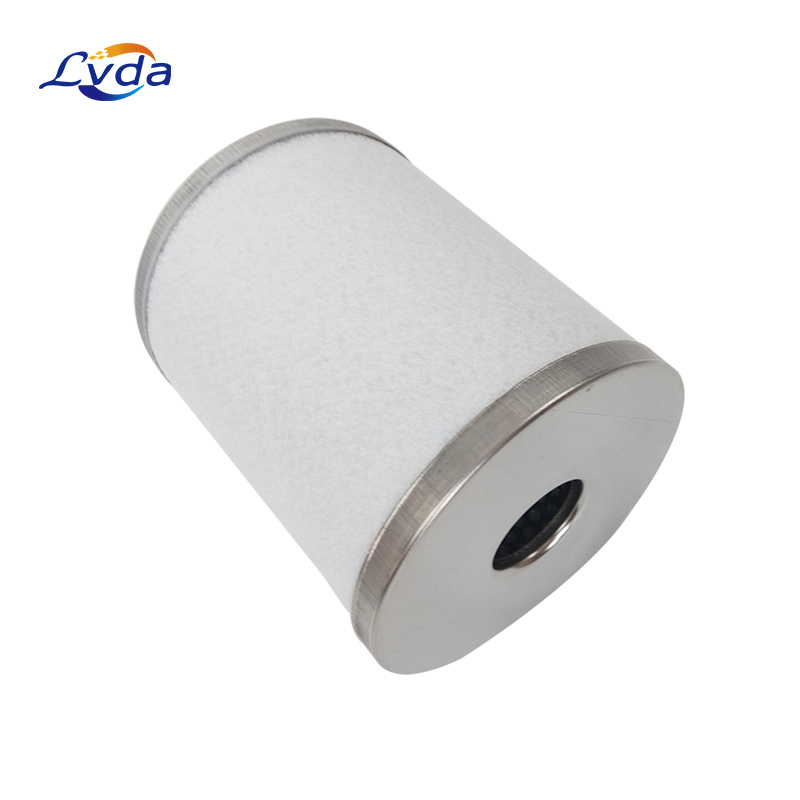

Replacement SMC Micro Mist Separator AMD Series AMD-EL850 Filter

Replacement SMC Micro Mist Separator AMD Series AMD-EL850 Filter

Replacement for SMC Filter

Model Number: AMD-EL850

Proof Pressure : 1.5 MPa

Applicable Fluid : Compressed air

Oil Mist Density At Outlet Side : Max. 0.1 mg/m3 (ANR)

Maximum Operating Pressure : 1.0 MPa

Minimum Operating Pressure : 0.05 MPa

Product Details

Air compressor air purification equipment is vital for the removal of system contamination

Air purification equipment is to remove air dash to keep compressor air clearance.

Tiny dust is absorbed into filter paper.More deepness the fold is, the longer working life the filter is .Filter paper is with high efficiency ,large filtration area , low resistance and heavy dust-holding capacity, it can be used in ambient temperature, common temperature, little of acid, alkali and organic solvents

Product features

1.Environmental Production

2.Favourable Price

3.Stable and constant pressure

4.Long service life

5.High efficiency

6.Durable and reliable

Product parameters

Applicable Fluid	Compressed air
Maximum Operating Pressure	1.0 MPa^*3
Minimum Operating Pressure^*1	0.05 MPa
Proof Pressure	1.5 MPa
Ambient and Fluid Temperature	5 to 60°C
Filtration Rating	0.01 μm (filtration efficiency 99.9%)
Oil Mist Density At Outlet Side	Max. 0.1 mg/m3 (ANR)*2 (Before saturated with oil, 0.1 mg/m3 [ANR] or less ≒0.008 ppm)

Element Replacement Period	2 years (1 year for stand-alone type) or when pressure drop reaches 0.1 MPa

NOTE 1: With auto drain: 0.1 MPa (N.O. type), 0.15 MPa (N.C. type) 2: When the oil mist density on the inlet side is 30 mg/m3 (ANR) *3: 0.97 MPa for stand-alone type.
