Product Details

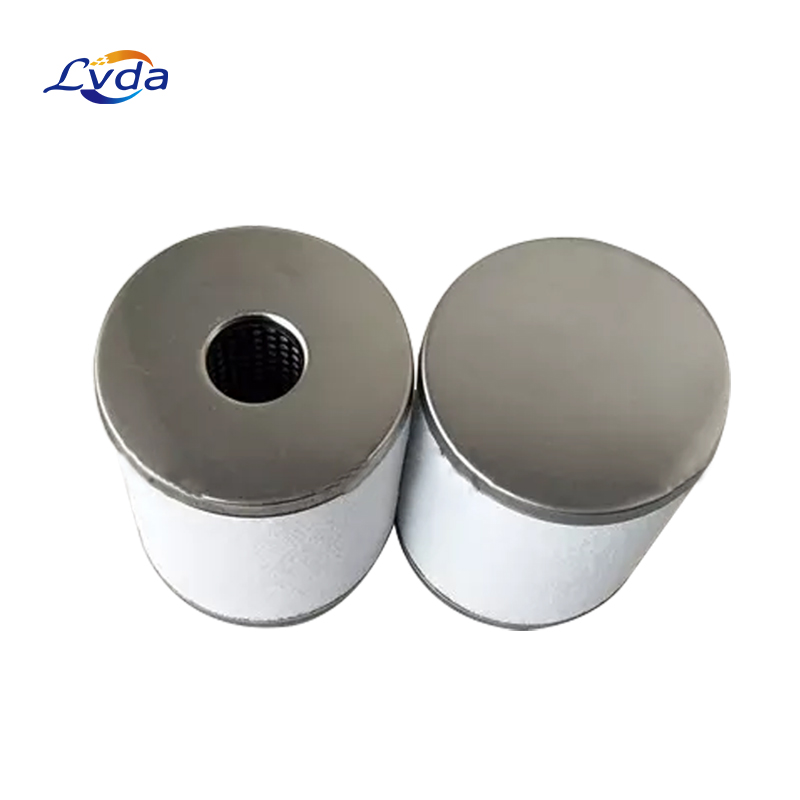

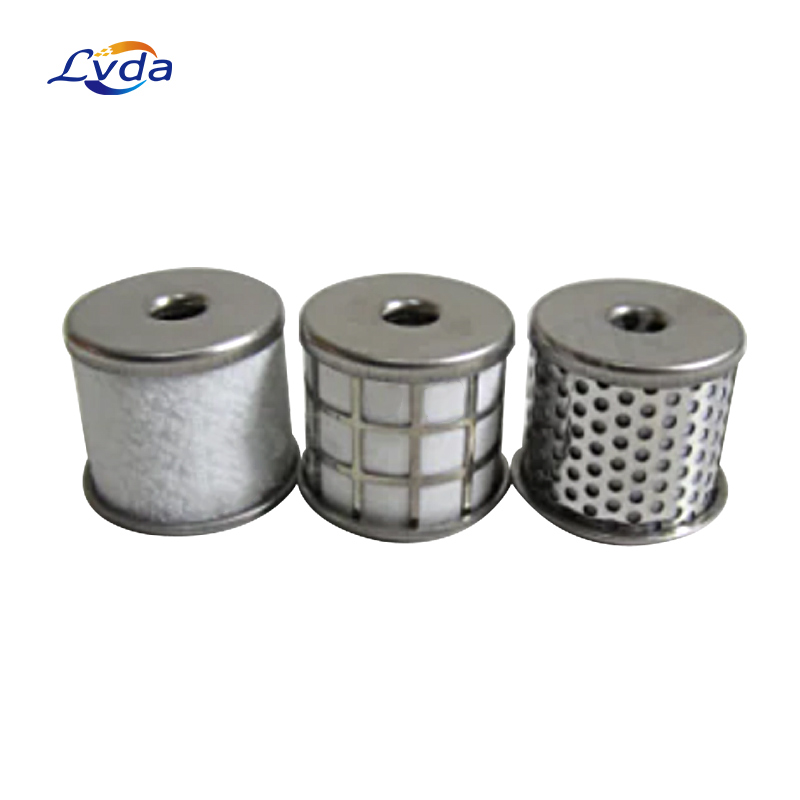

Precision Filters
In order to achieve the result of high-precision filtration, precision filters use a multi-layer filter material, which contains the borosilicate fiber layer, glass fiber layer, activated carbon fiber layer, multi-layer non-woven layer or stainless steel mesh, etc. The only way is to achieve oil-free, high-quality air without impurities.Precision filters are widely used in gas filtration. Its main function is to remove residual impurities or moisture or bacteria in the gas. The filtered gas can be directly used for medical disinfection, food packaging, and high-purity gas production.
Test Standard
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO3723------Method for end load test
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 4572------Multi-pass Performance Testing
Product features
(1) The filter material used in the United States HV filter media, 10,000 air purification plant, automated production processes. Long product life, high temperature, high pressure, corrosion-resistant.
(2) ISO and CE dual certification
(3) Rich experience in the engineering team, quickly and professionally solve your technical problems encountered.
(4) Our engineers have many years of research and development design and accumulation, you tell the filter brand and model, and we can produce the perfect quality products for you.
(5) 2 different body sizes,Variety of different drain options,Aluminum die cast body
Product parameters
Type | Oil Separator Element |
Material | Fiber Glass |
Filtering precision | 0.1Micron |
Filtration efficiency | 99.90% |
Service life | 3500-6000h |
Initial pressure differential | ≤0.02Mpa |
Application | For screw compressor parts |
Specification | 10*10*10cm 0.25KG |
Weight: | 2 KG |
Operating temperature: | up to 100°C |
Certificate: | ISO9001 |
Main Way Filter Element
(3μ) | Deodorant Filter
Element
(0.01μ) | Oil-Mist Separated filter element
(0.3μ) |
Flow Rate
(NM3/min) | Model | Flow Rate
(NM3/min) | Model | Flow Rate
( NM3/min ) | Model |
0.3 | AFF-EL2B | 0.2 | AMF-EL150 | 0.3 | AM-EL150 |
0.75 | AFF-EL4B | 0.5 | AMF-EL250 | 0.75 | AM-EL250 |
1.5 | AFF-EL8B | 1 | AMF-EL350 | 1.5 | AM-EL350 |

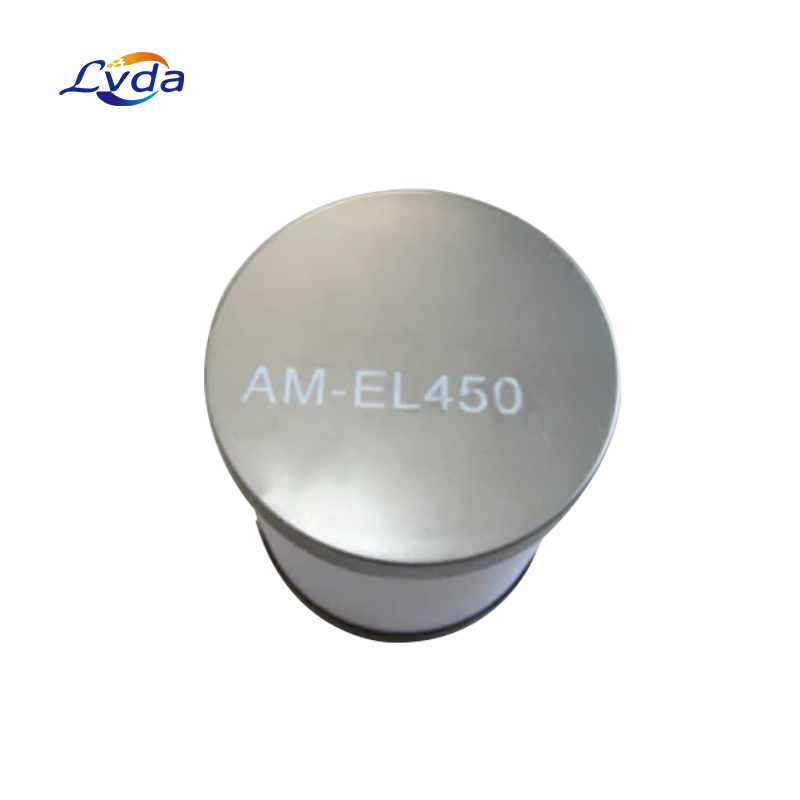

2.2 | AFF-EL11B | 2 | AMF-EL450 | 2.2 | AM-EL450 |
3.5 | AFF-EL22B | 3.5 | AMF-EL550 | 3.5 | AM-EL550 |
6 | AFF-EL37B | 6 | AMF-EL650 | 6 | AM-EL650 |
12 | AFF-EL75B | 12 | AMF-EL850 | 12 | AM-EL850 |
Product application
1.Hotels,
2.Garment Shops,
3.Building Material Shops,
4.Manufacturing Plant,
5.Machinery Repair Shops,
6.Food & Beverage Factory,
7.Farms,
8.Restaurant,
9.Home Use,
10.Retail,
11.Food Shop,
12.Printing Shops,
13.Construction works ,
14.Energy & Mining,
15.Food & Beverage Shops,
16.Advertising Company
