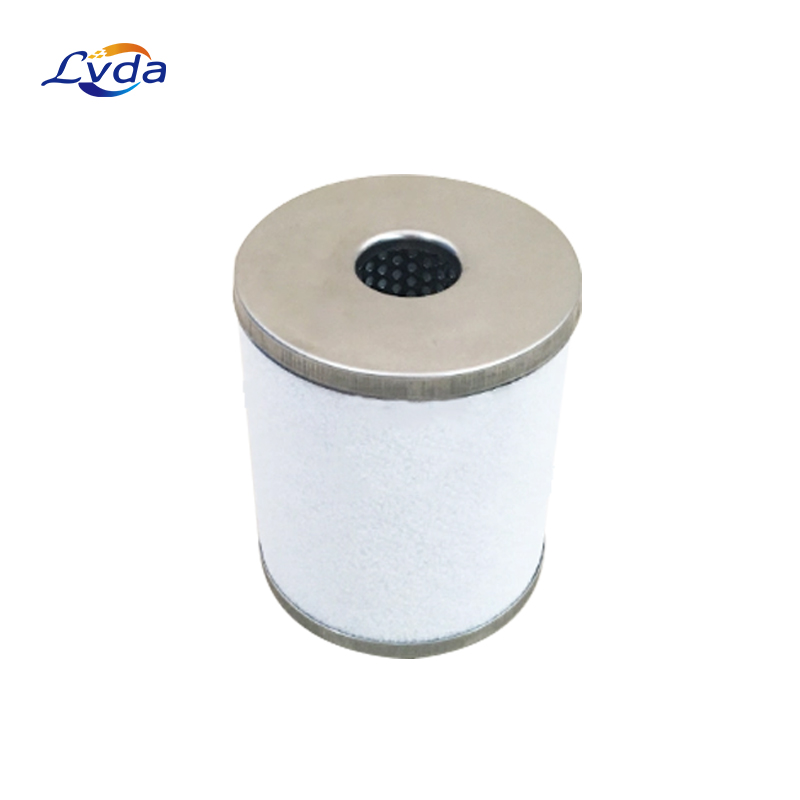

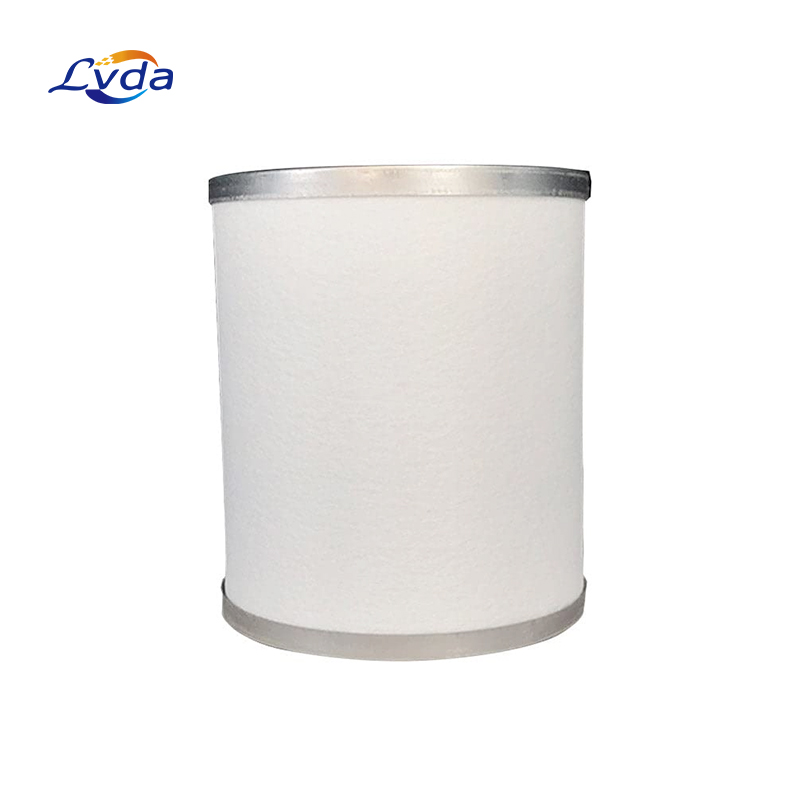

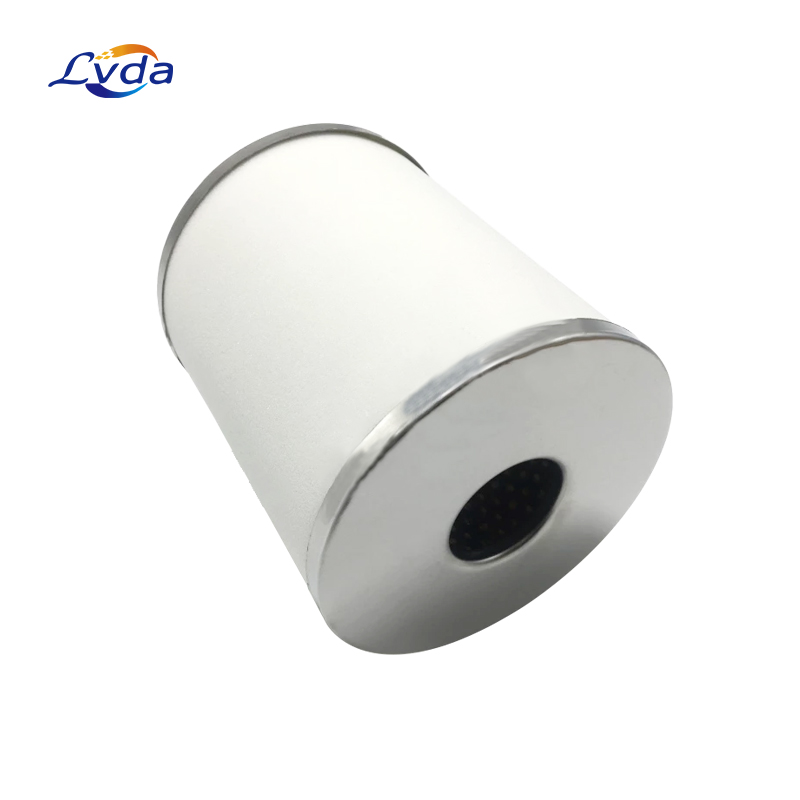

Product Details
Series AF modular style air filter is a cost effective, clean looking solution to your filtration needs. Its’ modular design allows connection with other SMC air preparation equipment. The series is available in six size options with a wide range of accessories.
Grade AMD - General Purpose Protection Particle removal down to 1 micron including coalesced liquid water and oil, providing a maximum remaining oil aerosol content of 0.6 mg/m3 (<0.5 ppm) @ 21°C.
Grade AMH - High Efficiency Oil Removal Filtration
Particle removal down to 0.01 micron including water and oil aerosols, providing a maximum remaining oil aerosol content of 0.01 mg/m3 (<0.01 ppm) @ 21°C. (Precede with Grade GP filter).
Grade AMG - Activated Carbon Filtration
Oil vapour and hydrocarbon odour removal, giving a maximum remaining oil content of <0.003 mg/m3 (<0.003 ppm) (excluding methane) @ 21°C. (Precede Grade AC with Grade HE filter).
Grade AME - General Purpose Dust Filtration
Dust particle removal down to 1 micron.
Product features
(1) The filter material used in the United States HV filter media, 10,000 air purification plant, automated production processes. Long product life, high temperature, high pressure, corrosion-resistant.
(2) ISO and CE dual certification
(3) Rich experience in the engineering team, quickly and professionally solve your technical problems encountered.
(4) Our engineers have many years of research and development design and accumulation, you tell the filter brand and model, and we can produce the perfect quality products for you.
(5) 2 different body sizes,Variety of different drain options,Aluminum die cast body
Product parameters
Marketing Type: | New Product 2020 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Type: | Air Filter |
Material: | Glassfiber |
Application: | In-line Compressed Air Filter |
Efficiency: | 99.99% Filtration Area |
Certificate: | ISO9001:2008 |
Working time: | 5000h-8000h |
Ensured Pressure Resistance: | 1.5MPa (15kgf/cm2) |
Highest Working Pressure: | 1.0MPa (10kgf/cm2) |
Ambient and Fluid Temperature: | 5~60 |
Valve: | With overflow |
Weight: | 2 KG |
Filter Precision | 0.01-1μm |
Product application
1.Hotels,
2.Garment Shops,
3.Building Material Shops,
4.Manufacturing Plant,
5.Machinery Repair Shops,
6.Food & Beverage Factory,
7.Farms,
8.Restaurant,
9.Home Use,
10.Retail,
11.Food Shop,
12.Printing Shops,
13.Construction works ,
14.Energy & Mining,
15.Food & Beverage Shops,
16.Advertising Company
