Product Details

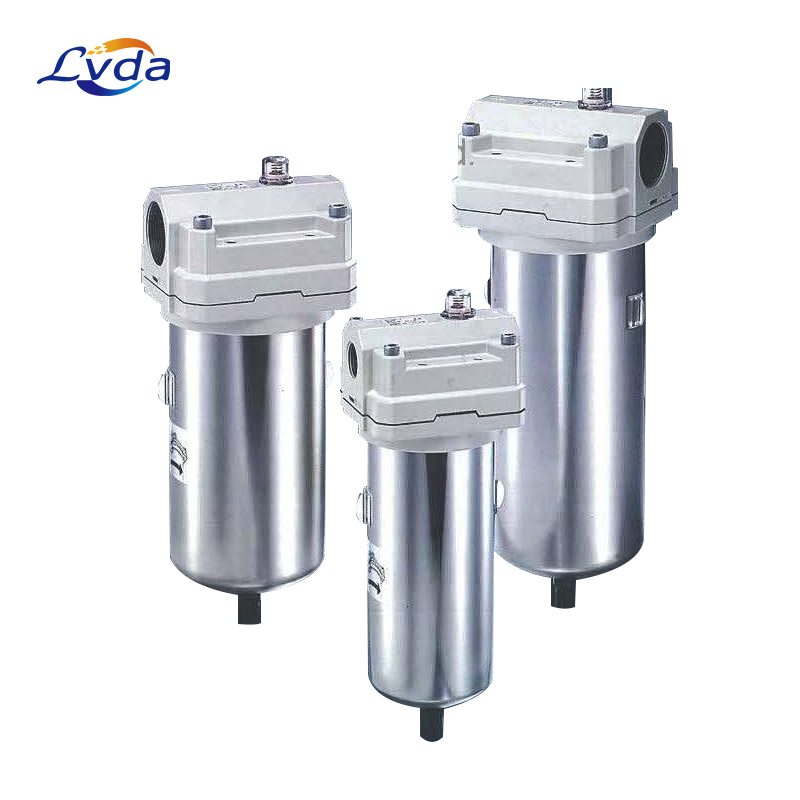

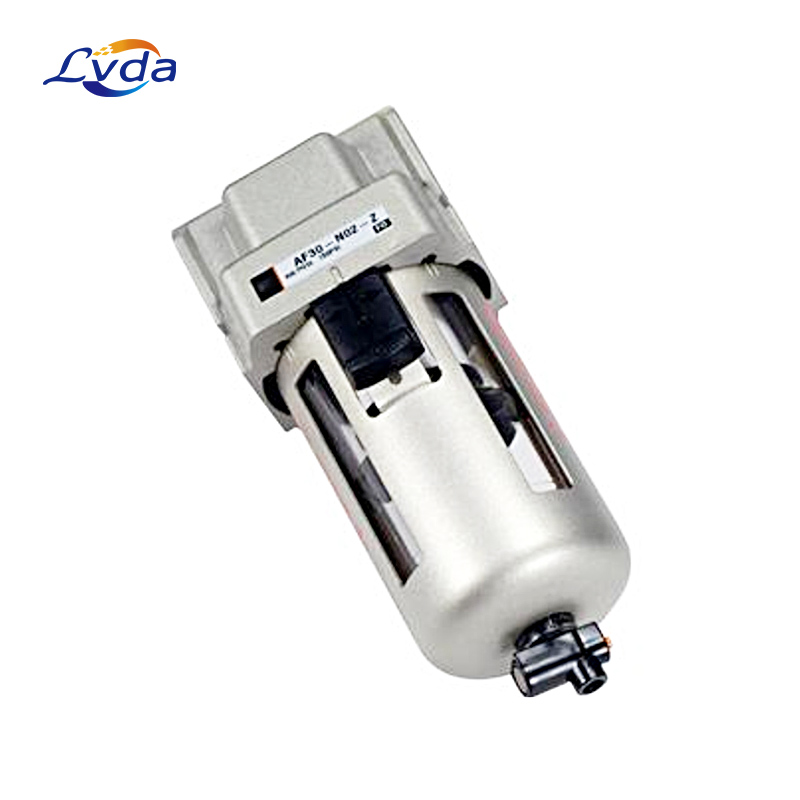

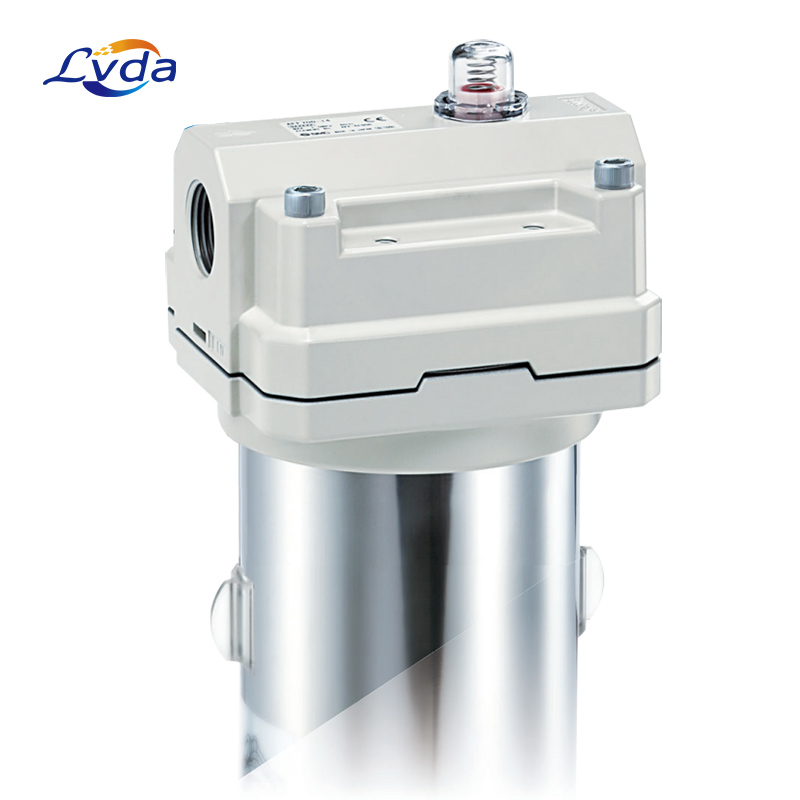

Series AF modular style air filter is a cost effective, clean looking solution to your filtration needs. Its' modular design allows connection with other SMC air preparation equipment. The series is available in six size options with a wide range of accessories.
Modular air filter
Prevents contamination
Lighter weight than old style modular AF
Thickness reduction of resin case provides increased capacity(approx. 1.3 times more).
Improved water separation efficiency extends the service life offilter elements
Rc, NPT or G(PF) type threads
Product features
1.Space saving and labor hour reduction
2.Achieved weight reduction by using a thin stainless steel case. The work load during installation is reduced.
3.The increased amount of treated air by reducing the pressure drop contributes to energy saving.
Improved workability when replacing elements
4.The element has a slit end cap.
5.It can be identified by color
Product parameters
Type | [Standard] Standard | Compressed Air Quality | General Dry Air |
Filtration Level | 1μm | Treatment Air Flow Rate(l/min) | 14500 |
Connection Type | [Rc (R)] Rc | Plumbing Thread Nominal | 2 |
Operating Environment | Standard | Drain Cock | [Auto Float Type] N.O. Automatic Drain |
Bowl Guard | No | Operating Pressure Range(MPa) | 0.1～1.0 |
Inline Filter, Element Replacement | Acceptable | Inline Filter, Case Material | Stainless Steel |
Specifications | With auto drain | Size of Body | 90D |
Accessory | None | Max. Operating Pressure(MPa) | 1 |
Compatible Models | - | - | - |
Part Number | Compressed Air Quality | Filtration Level | Treatment Air Flow Rate | Plumbing Thread Nominal | Operating Pressure Range | Inline Filter, Case Material | Size of Body | Accessory | Max. Operating Pressure | Compatible Models |
(l/min) | (MPa) | (MPa) |
AFF-EL90D | - | - | - | - | - | - | 90D | - | - | AFF element |
AFF70D-10 | General Dry Air | 1μm | 7000 | 1 | 0.1～1.0 | Stainless Steel | 70D | None | 1 | - |
AFF70D-10-B | General Dry Air | 1μm | 7000 | 1 | 0.1～1.0 | Stainless Steel | 70D | Bracket | 1 | - |
AFF90D-20-B | General Dry Air | 1μm | 14500 | 2 | 0.1～1.0 | Stainless Steel | 90D | Bracket | 1 | - |
AFF90D-20-H | General Dry Air | 1μm | 14500 | 2 | 0.1～1.6 | Stainless Steel | 90D | None | 1.6 | - |
Product application
1. Construction machinery industry: excavator, loader, roller, rotary drilling rig, paver
2. Power industry: generator sets, mobile power stations
3. Petrochemical industry: fuel dispensers, oil tankers, mobile fuel tankers
4. Mechanical processing equipment: various mechanical hydraulic system filters such as machining center, lathe, milling machine, bending machine, etc
5. Agricultural machinery: harvester, tractor, lawn mower
6. Transport vehicles: heavy trucks, mixer trucks, buses, sprinklers
7. Ships
