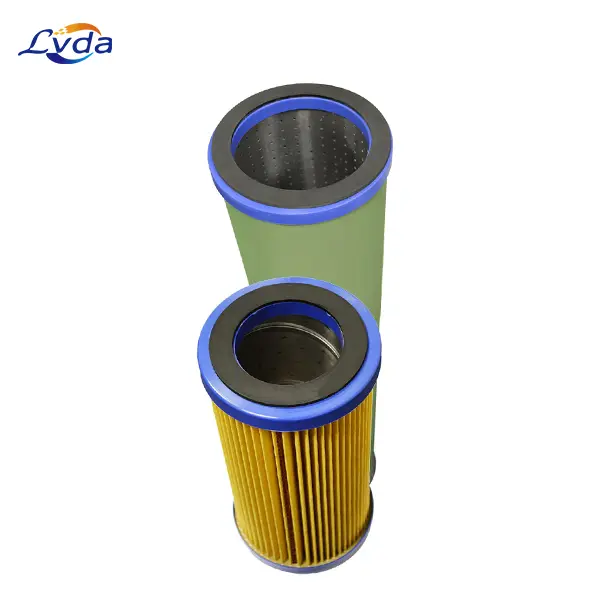

SO-636 PV Separator Filter Element

Product Details

SO-636PV is a high-efficiency second-stage separator cartridge. It is designed for aviation fuel filtration systems to remove water from jet fuel and other hydrocarbons.

Water Barrier: The cartridge utilizes a specially treated hydrophobic medium that blocks coalesced water droplets from passing downstream.

Two-Stage Process: It works downstream of a first-stage coalescer cartridge, which merges tiny water droplets into larger drops so the SO-636PV can successfully repel them.

Mode

SO: Separator Cartridge

6: 6-inch outside diameter (approx. 152 mm)

36: 36-inch nominal length (approx. 914 mm)

P: Pleated paper medium (silicone-treated resin-impregnated paper)

V: Variable hole pattern inner tube (optimizes flow distribution across the element)
