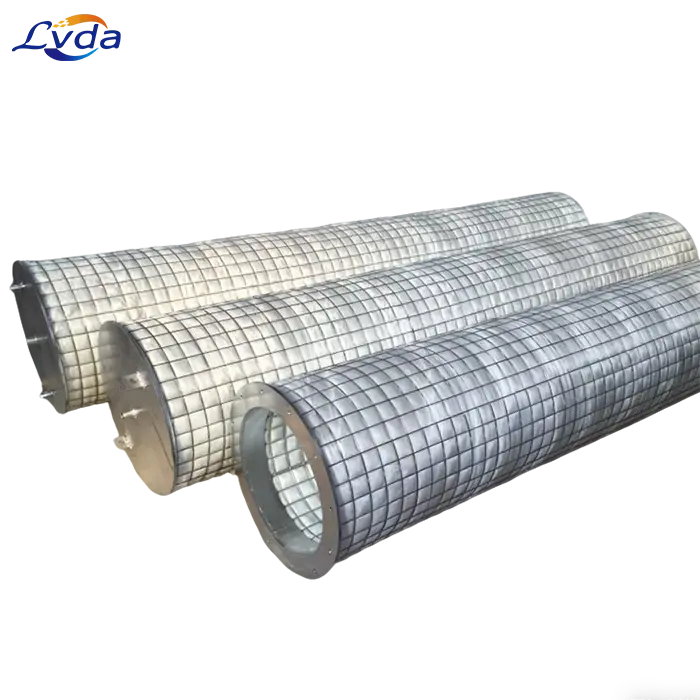

Fiber Mist Elimination Filter Element

Product Details

Fiber mist elimination filter elements are internationally accepted high-efficiency gas–liquid separation mist removal devices, widely used in chemical, petrochemical, acid production, chlor-alkali, food processing and other fields. They efficiently capture submicron mist droplets to achieve deep gas purification, protect equipment, reduce emissions, and meet environmental protection and continuous production requirements.

Structure

The core consists of single or multiple candle-type mist elimination elements, made of inner/outer mesh cylinders plus a uniformly filled compressed fiber mat in the middle.

• Shell material: Alloy, thermoformed plastic, fiberglass reinforced plastic (FRP), suitable for different corrosive and temperature conditions.
• Fiber bed material: Fluorosilicone oil special glass fiber cotton, imported glass fiber, ceramic, PP, PTFE, polyester, etc., selected as required.

Working Principle

Mist-laden gas passes through the fiber bed. Mist droplets are captured by fibers via inertial impaction, interception and Brownian diffusion. Droplets continuously coalesce and grow, then collect and drain under the action of gas flow and gravity to achieve stable gas–liquid separation. After reaching liquid-holding equilibrium, it operates continuously and efficiently, with a maximum capture rate of 99.95% and above.

Performance Parameters

Low-Speed Fiber Mist Eliminator

• Gas velocity: 0.08–0.2 m/s
• Captured target: Submicron mist droplets < 1 μm
• Efficiency: 94%–99.7%; 100% for mist droplets > 3 μm
• Pressure drop: 490–1960 Pa
• Features: Thick bed, fine fibers, high precision, low gas velocity, suitable for precision mist removal.

High-Speed Fiber Mist Eliminator

• Gas velocity: 2.0–2.5 m/s
• Captured target: Mist droplets 1–3 μm
• Efficiency: Approx. 97%
• Pressure drop: 1470–2450 Pa
• Features: Large gas handling capacity, small footprint, suitable for high-flow conditions.

Polypropylene Pleated Mist Elimination Element

• Pleated structure with surface area 2.5 times that of ordinary wound type, low resistance and high dust holding capacity.
• Equipped with removable and washable protective layer to intercept solids, prevent clogging, extend service life and reduce shutdowns.
• Applications: After sulfuric acid drying towers, chlor-alkali hydrogen dewatering, phosphoric acid/hydrochloric acid mist purification.

Glass Fiber Mist Elimination Element

• High-temperature resistant and corrosion-resistant glass fiber with special anti-fall-off structure, no fiber shrinkage or short-circuiting, stable mist removal and long service life.
• Applications: After primary/final absorption towers in sulfuric acid plants, chlor-alkali chlorine dewatering and acid mist removal after drying towers.

High-Speed Fiber Mist Elimination Element

• Large gas handling capacity, small footprint, relatively high pressure drop; use with caution for gases containing insoluble solids.
• Applications: After drying towers in sulfur-burning sulfuric acid plants, after phosphoric acid absorption towers, petrochemical distillation/evaporation gas–liquid separation.

Technical Parameters

Customized specifications are available; actual design shall prevail.

Product Advantages

• Ultra-high precision: Captures submicron mist droplets < 0.1 μm, almost complete removal of large particles.
• Low resistance & energy saving: Controllable pressure drop, generally < 40 mmW.G., reducing system energy consumption.
• Strong adaptability: Acid and alkali resistant, high temperature resistant, corrosion resistant, suitable for various harsh working conditions.
• Easy maintenance: Removable and washable, anti-clogging, long service life, reducing downtime and replacement costs.
• Environmental compliance: Eliminates smoke plumes, meets emission limits for acid mist, tail gas and other pollutants.
• Equipment protection: Prevents mist droplet corrosion, clogging and catalyst poisoning, extending unit service life.

Application Fields

• Sulfuric/nitric/phosphoric/hydrochloric acid production: Acid mist removal after drying/absorption towers, protecting fans, heat exchangers and catalysts.
• Chlor-alkali industry: Chlorine dewatering, hydrogen dewatering, sulfuric acid drying acid mist removal.
• Petrochemical/synthetic ammonia: Distillation, evaporation, syngas gas–liquid separation, acid mist removal.
• Others: Pulp, textile, asphalt saturation, food processing, chrome plating, turbine exhaust, plastic molding and other mist-laden gas purification.

Customization & Services

• One-to-one design based on gas volume, temperature, medium, pressure drop, efficiency and installation method.
• Provide one-stop services including selection, installation, commissioning, operation and maintenance, and element replacement.
