Product Details

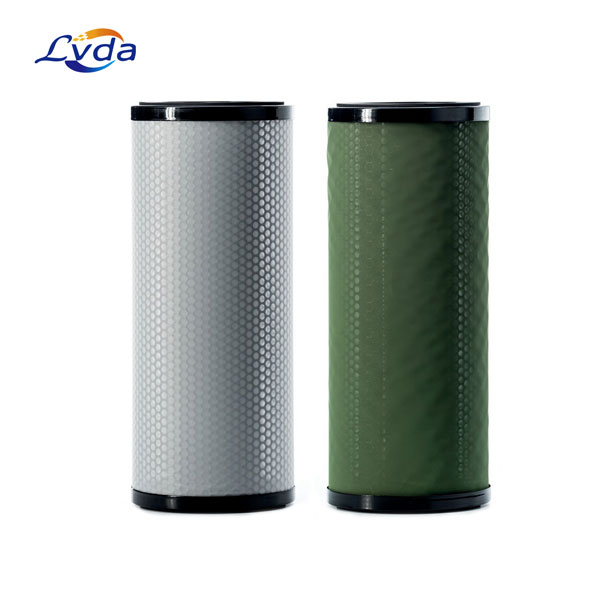

SS-5 Series Synthetic and ST-5 Series separator cartridges are cleanable and reusable.They come in a variety of dimensional and end cap
configurations.
SS-5 Series Synthetic separator cartridges feature a specially developed treated hydrophobic media. This media provides improved separation of fine water drops compared to standard screen.An ultrasonically seamed tube of the synthetic screen is placed around an epoxy coated metal shell, then adhesive bonded to metal end caps with gaskets.
ST-5 Series separators use coated screen wrapped around an epoxy coated metal shell, lockseam folded, then adhesive bonded to metal end capswith gaskets.
Both SS-5 and ST-5 Series Synthetic separators have the distinctive Velocigard which provides balanced flow of product throughout the cartridge. All metal components are treated to resist corrosion.
Maximum recommended operation temperature is 240 ºF (115 ºC). For compatibility in extreme operating conditions, other gasket, adhesive and metal materials are available.
Standard Design Features
• Cleanable and reusable
• Superior water barrier
• Recommended maximum operating temperature:240 °F (115 ºC)
• pH range from 5 to 9
• Designed for balanced flow through cartridge
• Flow direction: Outside to in Materials
• Synthetic mesh or coated screen
• Treated metal components for corrosion protection
• Buna-N gaskets
• Other gasket, adhesive and metal materials are available on request
DATA
|
MODEL NUMBER SYNTHETIC
|
MODEL NUMBER TEFLON
|
NOMINAL LENGTH
|
OUTSIDE DIAMETER
|
INSIDE DIAMETER SEALING END
|
INSIDE DIAMETER MOUNTING END
|
|
in
|
mm
|
in
|
mm
|
in
|
mm
|
in
|
mm
|
|
SS318FA-5
|
ST318FA-5
|
18
|
460
|
3
|
76
|
BLIND
|
13
|
2
|
51
|
|
SS324FA-5
|
ST324FA-5
|
24
|
610
|
3
|
76
|
BLIND
|
13
|
2
|
51
|
|
SS412FC-5
|
ST412FC-5
|
111∕2
|
290
|
41∕8
|
105
|
17∕8
|
48
|
17∕8
|
48
|
|
SS415FB-5
|
ST415FB-5
|
15
|
380
|
41∕2
|
114
|
BLIND
|
13
|
31∕2
|
89
|
|
SS417FB-5
|
ST417FB-5
|
17
|
430
|
41∕2
|
114
|
BLIND
|
13
|
31∕2
|
89
|
|
SS422FC-5
|
ST422FC-5
|
221∕2
|
570
|
41∕8
|
105
|
17∕8
|
48
|
17∕8
|
48
|
|
SS424FB-5
|
ST424FB-5
|
24
|
610
|
41∕2
|
114
|
BLIND
|
13
|
31∕2
|
89
|
|
SS430FB-5
|
ST430FB-5
|
30
|
760
|
41∕2
|
114
|
BLIND
|
13
|
31∕2
|
89
|
|
SS432FC-5
|
ST432FC-5
|
311∕2
|
800
|
41∕8
|
105
|
17∕8
|
48
|
17∕8
|
48
|
|
SS436FB-5
|
ST436FB-5
|
36
|
910
|
41∕2
|
114
|
BLIND
|
13
|
31∕2
|
89
|
|
SS609FB-5
|
ST609FB-5
|
9
|
230
|
6
|
152
|
BLIND
|
13
|
31∕2
|
89
|
|
SS609FF-5
|
ST609FF-5
|
9
|
230
|
6
|
152
|
BLIND
|
13
|
41∕2
|
114
|
|
SS611FD-5
|
ST611FD-5
|
111∕4
|
290
|
6
|
152
|
31∕2
|
89
|
31∕2
|
89
|
|
SS612FB-5
|
ST612FB-5
|
121∕8
|
310
|
6
|
152
|
BLIND
|
13
|
31∕2
|
89
|
|
SS614FD-5
|
ST614FD-5
|
141∕2
|
370
|
6
|
152
|
31∕2
|
89
|
31∕2
|
89
|
|
SS616FD-5
|
ST616FD-5
|
161∕4
|
410
|
6
|
152
|
31∕2
|
89
|
31∕2
|
89
|
|
SS618FB-5
|
ST618FB-5
|
18
|
460
|
6
|
152
|
BLIND
|
13
|
31∕2
|
89
|
|
SS622FD-5
|
ST622FD-5
|
221∕4
|
560
|
6
|
152
|
31∕2
|
89
|
31∕2
|
89
|
|
SS624FB-5
|
ST624FB-5
|
24
|
610
|
6
|
152
|
BLIND
|
13
|
31∕2
|
89
|
|
SS624FE-5
|
ST624FE-5
|
24
|
610
|
6
|
152
|
BLIND
|
13
|
41∕8
|
105
|
|
SS624FF-5
|
ST624FF-5
|
24
|
610
|
6
|
152
|
BLIND
|
13
|
41∕2
|
114
|
|
SS629FD-5
|
ST629FD-5
|
283∕4
|
730
|
6
|
152
|
31∕2
|
89
|
31∕2
|
89
|
|
SS630FB-5
|
ST630FB-5
|
30
|
760
|
6
|
152
|
BLIND
|
13
|
31∕2
|
89
|
|
SS630FD-5
|
ST630FD-5
|
30
|
760
|
6
|
152
|
31∕2
|
89
|
31∕2
|
89
|
|
SS630FE-5
|
ST630FE-5
|
30
|
760
|
6
|
152
|
BLIND
|
13
|
41∕8
|
105
|
|
SS630FF-5
|
ST630FF-5
|
30
|
760
|
6
|
152
|
BLIND
|
13
|
41∕2
|
114
|
|
SS633FB-5
|
ST633FB-5
|
331∕4
|
840
|
6
|
152
|
BLIND
|
13
|
31∕2
|
89
|
|
SS633FD-5
|
ST633FD-5
|
331∕4
|
840
|
6
|
152
|
31∕2
|
89
|
31∕2
|
89
|
|
SS636FB-5
|
ST636FB-5
|
36
|
910
|
6
|
152
|
BLIND
|
13
|
31∕2
|
89
|
|
SS636FD-5
|
ST636FD-5
|
36
|
910
|
6
|
152
|
31∕2
|
89
|
31∕2
|
89
|
|
SS636FE-5
|
ST636FE-5
|
36
|
910
|
6
|
152
|
BLIND
|
13
|
41∕8
|
105
|
|
SS636FF-5
|
ST636FF-5
|
36
|
910
|
6
|
152
|
BLIND
|
13
|
41∕2
|
114
|
|
SS638FD-5
|
ST638FD-5
|
38
|
965
|
6
|
152
|
31∕2
|
89
|
31∕2
|
89
|
|
SS640FD-5
|
ST640FD-5
|
40
|
1020
|
6
|
152
|
31∕2
|
89
|
31∕2
|
89
|
|
SS640FE-5
|
ST640FE-5
|
40
|
1020
|
6
|
152
|
BLIND
|
13
|
41∕8
|
105
|
|
SS640FF-5
|
ST640FF-5
|
40
|
1020
|
6
|
152
|
BLIND
|
13
|
41∕2
|
114
|
|
SS643FB-5
|
ST643FB-5
|
43
|
1090
|
6
|
152
|
BLIND
|
13
|
31∕2
|
89
|
|
SS643FD-5
|
ST643FD-5
|
43
|
1090
|
6
|
152
|
31∕2
|
89
|
31∕2
|
89
|
|
SS643FF-5
|
ST643FF-5
|
43
|
1090
|
6
|
152
|
BLIND
|
13
|
41∕2
|
114
|
|
SS644FB-5
|
ST644FB-5
|
44
|
1120
|
6
|
152
|
BLIND
|
13
|
31∕2
|
89
|
|
SS644FD-5
|
ST644FD-5
|
44
|
1120
|
6
|
152
|
31∕2
|
89
|
31∕2
|
89
|
|
SS644FE-5
|
ST644FE-5
|
44
|
1120
|
6
|
152
|
BLIND
|
13
|
41∕8
|
105
|
|
SS644FF-5
|
ST644FF-5
|
44
|
1120
|
6
|
152
|
BLIND
|
13
|
41∕2
|
114
|
|
SS648FD-5
|
ST648FD-5
|
48
|
1220
|
6
|
152
|
31∕2
|
89
|
31∕2
|
89
|
|
SS648FF-5
|
ST648FF-5
|
48
|
1220
|
6
|
152
|
BLIND
|
13
|
41∕2
|
114
|
|
SS656FB-5
|
ST656FB-5
|
56
|
1420
|
6
|
152
|
BLIND
|
13
|
31∕2
|
89
|
|
SS656FF-5
|
ST656FF-5
|
56
|
1420
|
6
|
152
|
BLIND
|
13
|
41∕2
|
114
|
