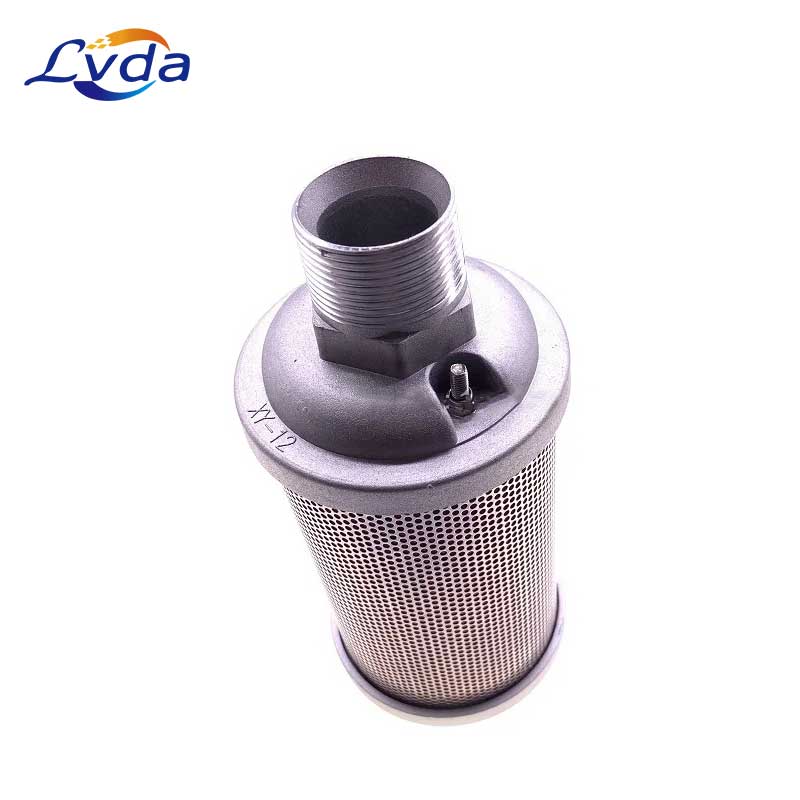

1-1/4" Silencer muffler for air Dryer XY-12
1-1/4" Silencer muffler for air Dryer XY-12

1-1/4" Silencer muffler for air Dryer XY-12

Products

Model Number: XY-12

Interface Size Z : 1 1/4"

Dimensions H : 219

Dimensions h : 183

Dimensions D : Φ99

Get Quotation

Product Details

XY-12 series muffler is used at exhaust port, especially designed for desiccant regenerative type air dryers / adsorption air dryer.

The connection of our XY series muffler can be made for NPT type or BSPT type.

Model  Z H h D
XY-05  1/2" 159  125  Φ80
XY-07  3/4" 180  156  Φ87
XY-10  1" 219  183  Φ99
XY-12  1 1/4"  219  183  Φ99
XY-15  1 1/2"  340  297  Φ133
XY-20  2" 470  432  Φ133
XY-30  3" 593  472  173x173
XY-40  4" 597  480  198x198
XY-60 6" 790  619  275x275

Use：the adsorption dryer is equipped with emptying and venting.

The material is made of high temperature resistant glass fiber silencer cotton grade and microfiber mat, which is resistant to chemical corrosion.

Stainless steel skeleton perforated cylindrcal design,the strength is far greater than electroplated steel silencer safety value opening pressure 2.0-2.2khf/cm

Round hole per-filter layer,≤65℃ working temperature.

Noise reduction effect ≥30DB.
