N15DM002 Hydraulic Filter Element

Product Details

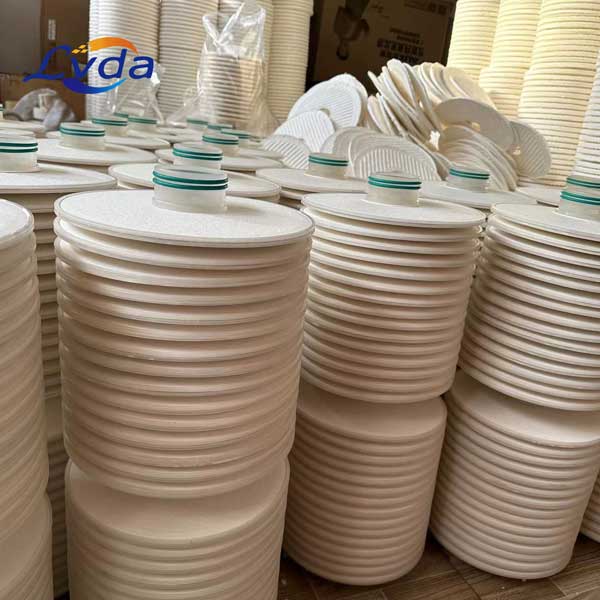

The LVDA filter element N15DM002 uses deep filter paperboard as the filter material to effectively filter impurities and microorganisms in the liquid through mechanical interception, electrostatic adsorption and other action methods. The product adopts a new double-layer support and separation plate conceptual design structure to enhance the stability of the filter element, and ensure the free flow of the filtrate, reduce the ineffective working area of the cardboard, and ensure the optimal upstream and downstream fluid flow conditions to achieve extended filtration The service life of the plate improves the effect of filtering flow rate.

Technical

1. Filter element withstand pressure difference: 21MPa

2. Working temperature: -10~+100ºC

3. Filtration accuracy: 5~20μm

4. Working medium: not ordinary hydraulic oil.
