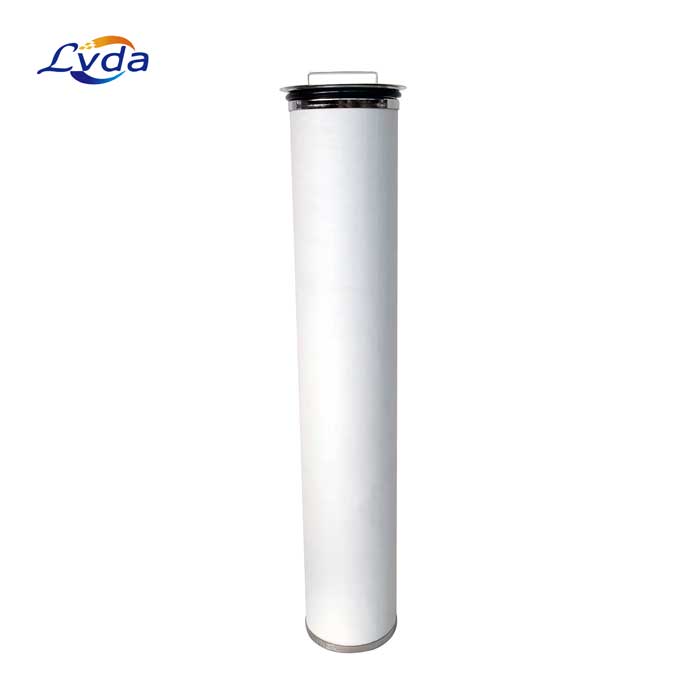

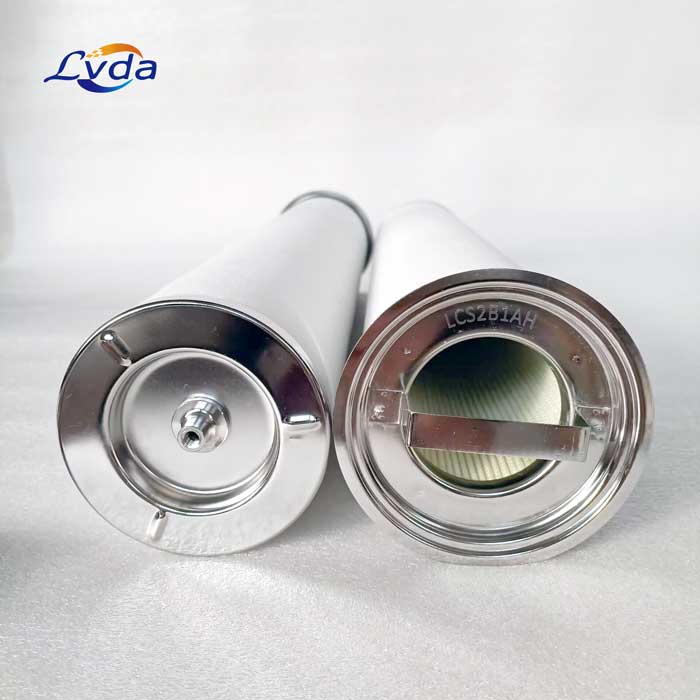

LCS2B1AH Coalescer Filter Element

Product Details

Resin bonded glass fiber coalescer media designed in a pack to handle large quantities of liquid

Polymeric outer drainage layer to prevent liquid reentrainment

Oleophobic/hydrophobic treatment to improve liquid drainage,protect from liquid slugs and minimize saturated pressure drop

Stainless steel metal support

Arguments

Maximum Operating Temperature (F):150 °F

Maximum Operating Temperature (C):66 °C

Change out pressure drop (bar):1.03 bar

Change out pressure drop (psid):15 psid

Maximum differential pressure rating (bar):3.5 bar

Maximum differential pressure rating (psid):50 psid

Initial Pressure Drop (bar):0.14 bar

Initial Pressure Drop (psid):2 psid

Separation level (ppmv):≤15ppm free water content (via AquaGlo detection)

Micron rating for solids removal:1 μm Beta 200

IFT Limit:Effective above 3 IFT

Coalescer Length (Imperial):20 in

Coalescer Length (Metric):50.8 cm

Coalescer Diameter (Imperial):3.75 in

O-Ring Material:Fluoropolymer Elastomer O-Ring

Hardware Material:Stainless Steel

End Cap Material:Epoxy Potted Stainless Steel
