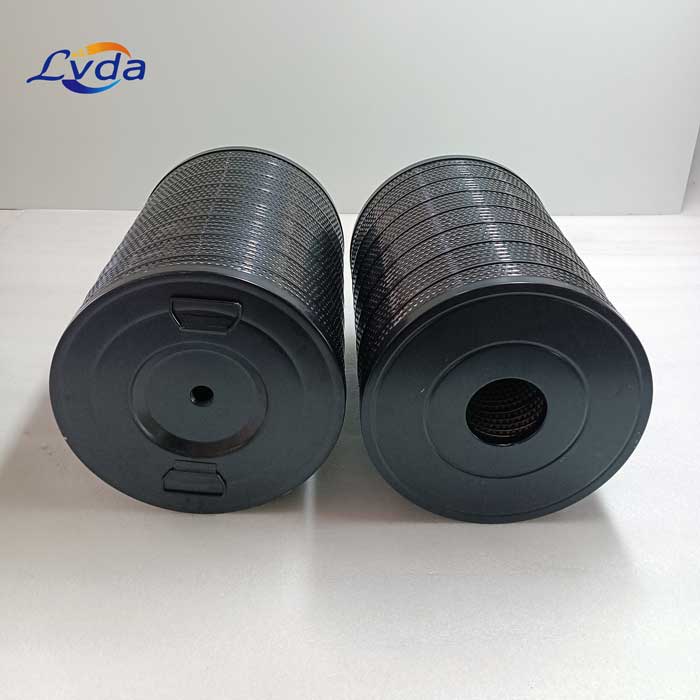

EDM Filter H342240
EDM Filter H342240

EDM Filter H342240

Products

Model Number: H342240

Diameter outer tube : 340 mm / 13.4 in

Height : 450 mm / 17.7in.

Filter connection : G 3/4 "

Flow direction : Inside-to-outside

Filter fineness : 3-5 µm

Filter media : Cellulose

Get Quotation

Product Details

H342240 EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

Dimensions: Φ340*450mm

Connection system: G3 / 4" central connection thread

Flow direction: Dual flow

Filter fineness: 3 - 5µm or 5 - 7µm

Filter medium: German H&V paper

Pleats way: Double bellow

Net Weight: 9.30kg

Recommended Max Pressure: 198kpa (2.0kgf/cm²)

Instant Limit Working Pressure: 296kpa (3.0kgf/cm²)

Applicable Machine For Agie Charmilles: Agie Charmilles CUT 20 P, CUT 200, CUT 30, CUT 300, CUT 400, FI 240 CC, FI 240 CCS, FI 240 SL, FI 240 SLP, FI 440 CC, FI 440 CCS, FI 440 SL, FI 440 SLP
