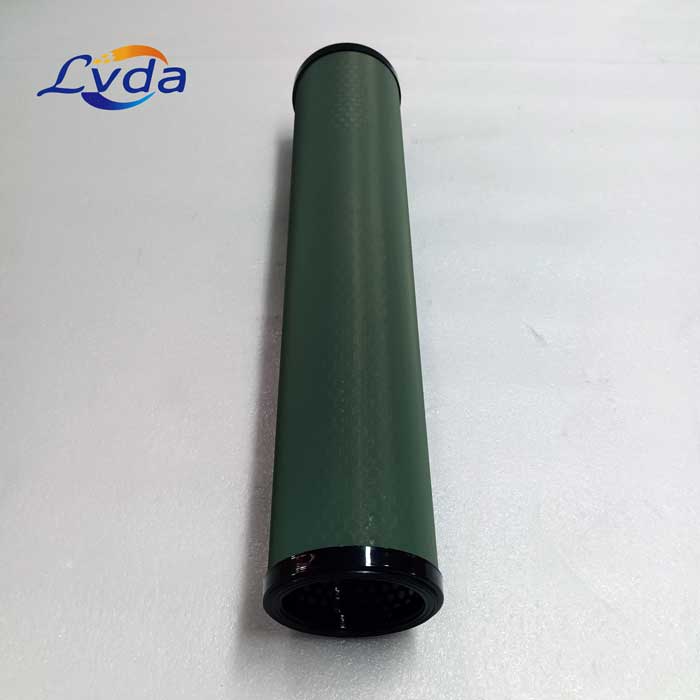

60.4-565P Separator Element

Products

Model Number: 60.4-565P

Flow direction : Out-to-in

Operating temperature : Min. -30°C (-22°F) / Max. 80°C (176°F)

Media filtrante : fibra di vetro, carta da filtro per pasta di legno, nastro in fibra di acciaio inossidabile e filo di acciaio inossidabile tessuto.

Tasso di filtraggio : 0.3μm,0.5μm,1μm,5μm,10μm, ecc

Application Areas : Mobile and stationary refuelling equipment, Tank farms, Ships and loading terminals, Refineries

Product Details

Separator elements are used as the second stage of a high-performance separation in filter/water separators. After emergence from the coalescer, aviation fuels pass through the pores of the separator element while water droplets are repelled by the hydrophobic separator surface. Water droplets settle into the filter/water separator sump to be drained off.

60.4-565P Type separator elements are available with a Teflon coated screen or synthetic mesh. Separator elements with a Teflon coated screen can be reused after a cleaning during coalescer element changeouts. Small areas of damage can be temporarily repaired. It is recommended that separator elements with a synthetic mesh are replaced during coalescer changeouts

application

1. Aviation fuel, gasoline, kerosene, diesel;

2. Liquefied petroleum gas, petroleum tar, benzene, toluene, xylene, benzene, polypropylene;

3. Low viscosity hydraulic oil and lubricating oil such as turbine oil;

4. Cyclohexane, isopropanol, ethanol, ethyl ketone ring, etc;

5. Other hydrocarbons
