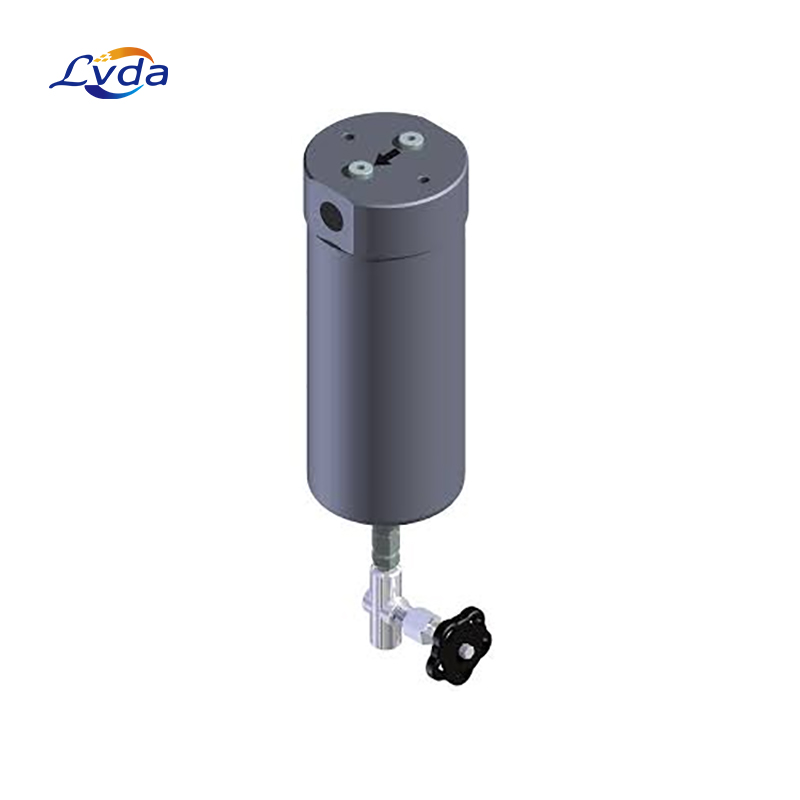

High Pressure Compressed Air Filters Compressed air contains 10 contaminants (eminating from 4 sources) which must be treated and reduced to acceptable levels for the compressed air system to operate safely, efficiently and cost effectively. Most industrial compressed air applications operate at pressures around 7, 10 or 13 bar g and purification equipment is typically designed around these operating pressures. There are however, applications that require higher operating pressures (which also leads to increased concentration of many contaminants).
Product features
1.Meets the requirements for delivered air quality shown in all editions of ISO8573-1, the international standard for compressed air quality

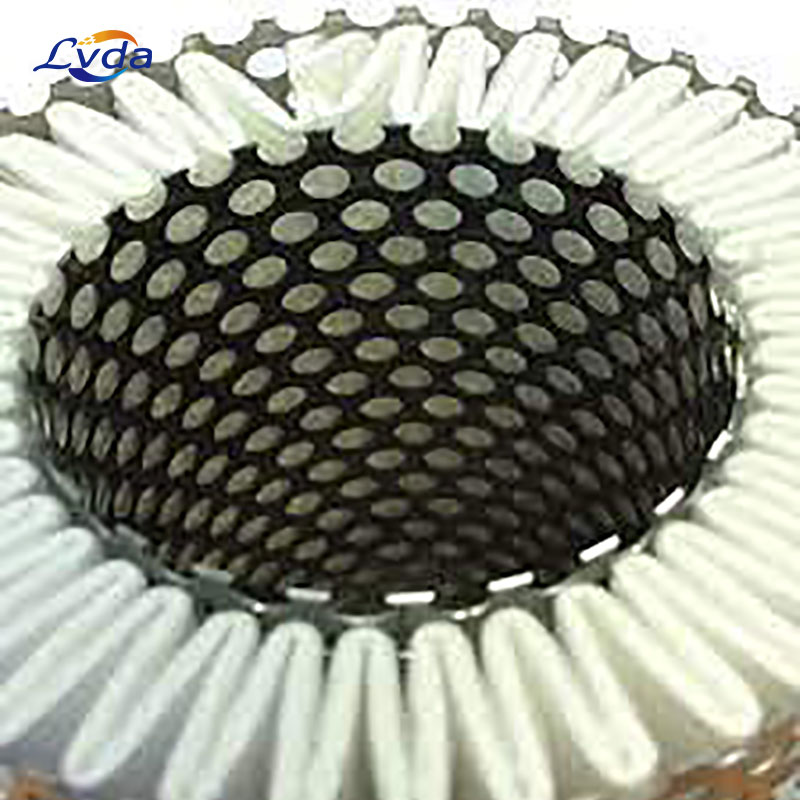

2.Pleated filter element – Coalescing & Dry Particulate filter media is constructed to reduce air flow velocity and pressure loss whilst providing increased dirt holding capacity, and improved filtration efficiency
3.Double O-ring sealing - The first O-ring protects the filter housing thread from contamination, the second prevents the filter housing parts from over tightening
4.Filter element is secured by tie-rod to ensure element is held in place, even with pressure pulsations commonly experienced with high pressure piston compressors
Product parameters
Filtration
Grade | Filter Models | Min Operating
Pressure | Max Operating
Pressure | Min Operating
Temperature | Max Operating
Temperature |
|
| bar g | psi g | bar g | psi g | ℃ | ℉ | ℃ | ℉ |
V/ZP/XP | GH3350-GH13350 | 50 | 725 | 350 | 5076 | 2 | 35 | 80 | 176 |
A | GH3350~GH13350 | 50 | 725 | 350 | 5076 | 2 | 35 | 50 | 122 |
Model | Height (H) | Width (W) | Depth (D) | Weight |
|
| mm | ins | mm | ins | mm | ins | kg | lbs |
GH3350 | 355 | 14.0 | 80 | 3.1 | 80 | 3.1 | 2.8 | 6.2 |
GH5350 | 355 | 14.0 | 80 | 3.1 | 80 | 3.1 | 2.8 | 6.2 |
GH7350 | 420 | 16.5 | 80 | 3.1 | 80 | 3.1 | 3.4 | 7.5 |
GH9350 | 455 | 17.9 | 116 | 4.6 | 116 | 4.6 | 18.2 | 40.1 |
GH11350 | 540 | 21.3 | 116 | 4.6 | 116 | 4.6 | 21.9 | 48.3 |
GH12350 | 655 | 25.8 | 125 | 4.9 | 125 | 4.9 | 28.3 | 62.4 |
GH13350 | 910 | 35.8 | 125 | 4.9 | 125 | 4.9 | 39.2 | 86.4 |
Model | Pipe
Size | L/S | m³/min | m³/hr | cfm | Replacement
Element |
GH3350 | Grade | 1/2" | 101 | 6.1 | 365 | 215 | 1050 | Grade |
GH5350 | Grade | 1/2" | 139 | 8.4 | 501 | 295 | 1070 | Grade |
GH7350 | Grade | 1/2" | 215 | 12.9 | 776 | 457 | 1140 | Grade |
GH9350 | Grade | 1/2" | 287 | 17.3 | 1035 | 609 | 2010 | Grade |
GH11350 | Grade | 1" | 514 | 30.9 | 1852 | 1090 | 2020 | Grade |
GH12350 | Grade | 11/2" | 782 | 46.9 | 2816 | 1657 | 2030 | Grade |
GH13350 | Grade | 11/2" | 1184 | 71.0 | 4261 | 2508 | 2050 | Grade |
