Product Details

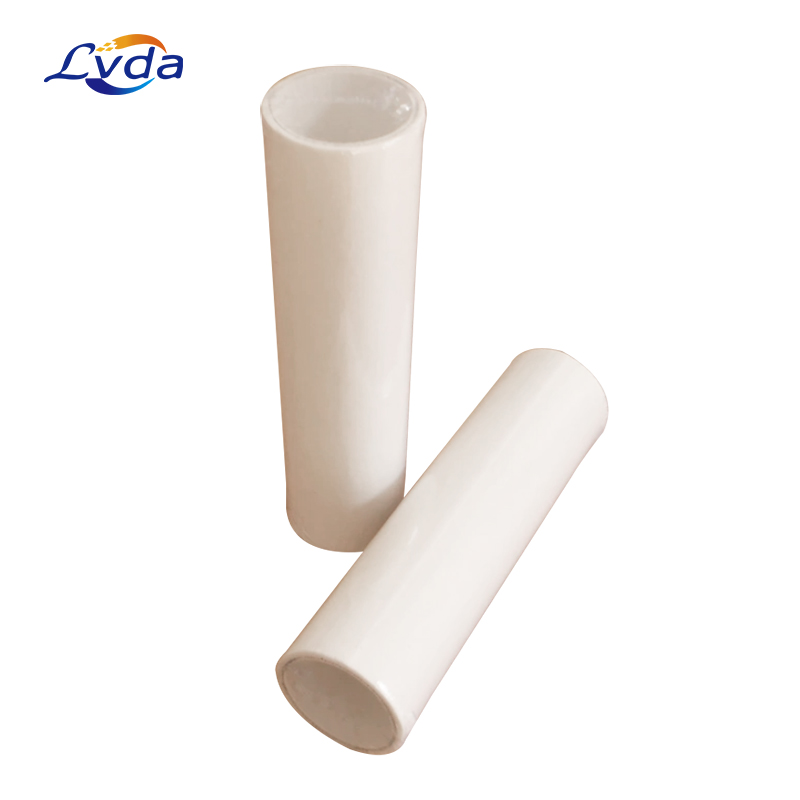

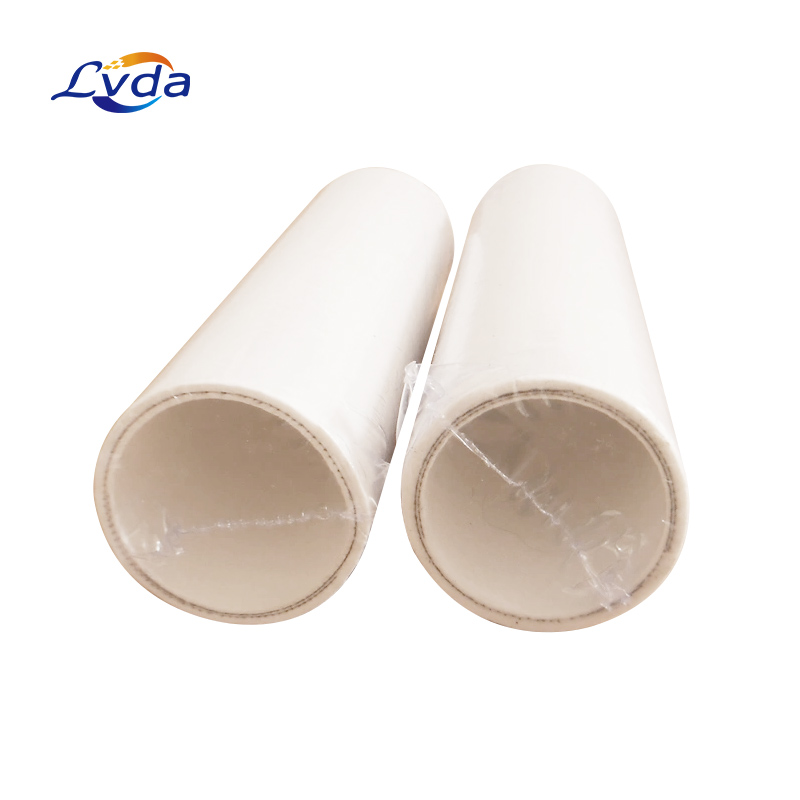

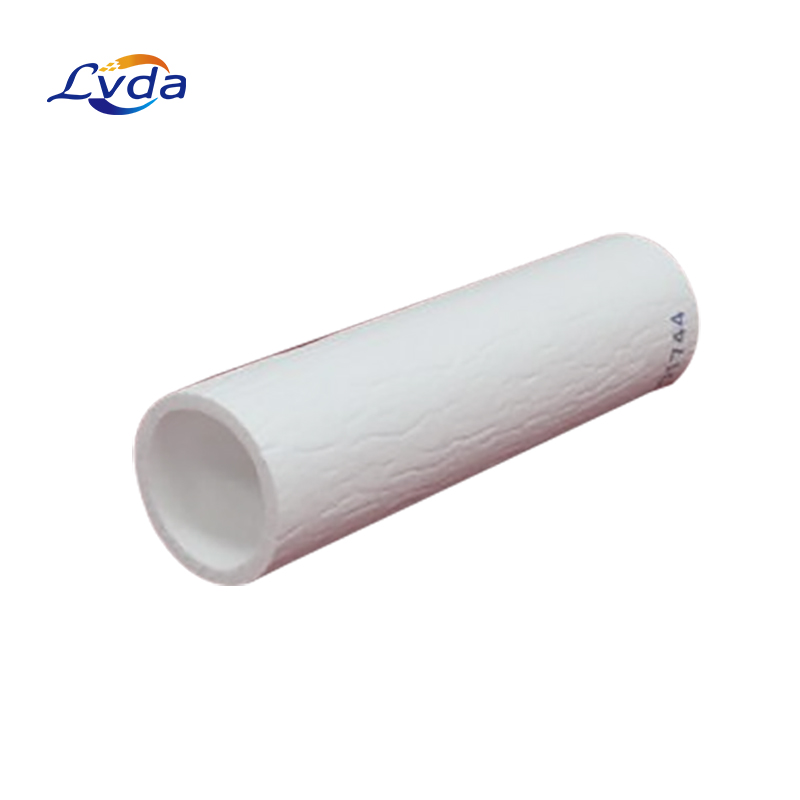

Glass fiber sintered filter element is made of glass fiber solution added with other chemical additives, which controls the appropriate sintering temperature, speed, pressure and other processes, so that it can be firmly combined, so that the surface is smooth and hydrophobic, and the dust cannot adhere to the surface of the filter material, so that its bending resistance, abrasion resistance, corrosion resistance, high temperature and humidity resistance, bending resistance and strength are superior to ordinary glass fiber filter material, and its service life can be greatly extended.
It is suitable for high temperature, high humidity, high viscosity dust industries or industrial smoke purification with acid alkali and corrosive chemical gases, as well as other occasions with poor working conditions.
Product features
1. High filtration efficiency: the filtration efficiency of 0.1μm and above fine dust can reach more than 95%, and the emission can be nearly zero.
2. Low running resistance: the glass fiber sintered filter element itself has the characteristics of non-stick dust, hydrophobic and stable chemical properties, so the dust stripping performance is very good, especially for the strong hygroscopic, easy to bond and hardening dust has good stripping performance.
3. Long-term use temperature 260℃, short-term and instant temperature up to 300℃(flame retardant type higher temperature), and the heat shrinkage rate <0.5%.
4. Good thermal stability :300℃ thermal shrinkage rate is less than 0.5%, which determines its safety at high temperature.
5. Size range :Φ10-600mm, H10-1200mm.
Product parameters
Model: | MFK032-39 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | ISO9001 |
Quality: | 100% Tested |
Working temperature: | -10~+100℃ |
Working pressure: | -21~210 bar |
Length: | 9 |
Outer Diameter: | 2.5 |
Inner Diameter: | 2 |
Filter Type: | Liquid Coalescers |
Filtration Selectivity Raring: | 99.99% @ .3 MICRON |
Maximum Flow: | 600 SCFM @ 100 PSIG |
Operating Temperature Range: | MAX 225 F |
End Caps: | NONE |
Jacket: | POLYPROPYLENE DRAINAGE LAYER |
Product application
1．Chemical and petrochemical industry
2．Pharmaceutical industry
3．Prefiltration of sterile filters
4．Filling machines
5．Food & beverage industry
6．Packing machines
7．Process industry
