Substitute Filter Element For AC-7181/2 Parker Velcon Aquacon AC Series Water Absorbing Cartridge 18 in. - 0.5 Micron

Product Details

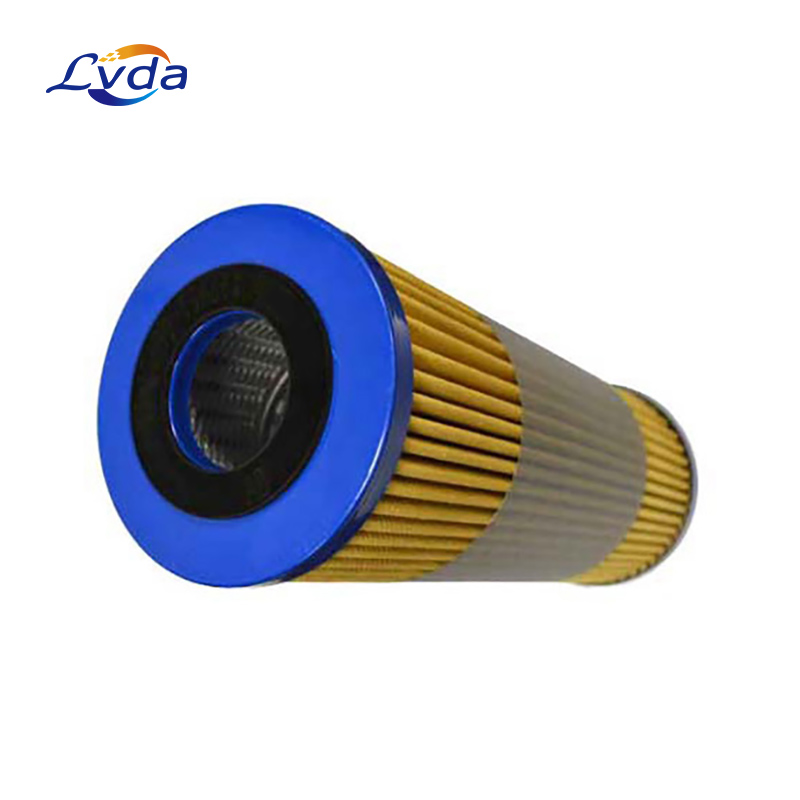

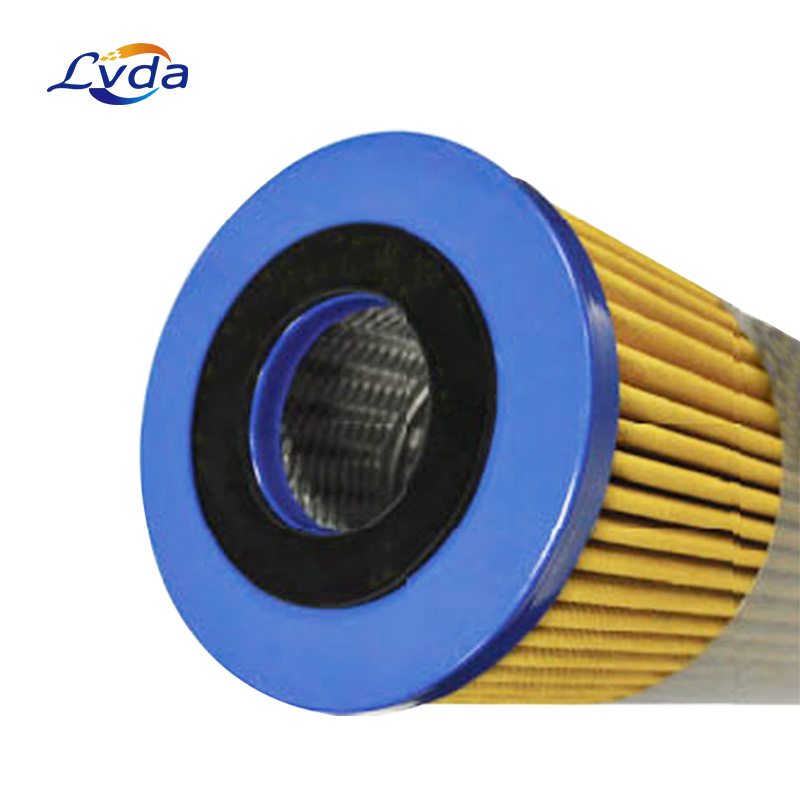

Replacement Parker Velcon AC Aquacon Water Absorbing Filter Cartridge, 2-9/16 in ID x 6-1/4 in OD x 18 in len, pleated 0.5 micron media with inner layers of water absorbing media, change at 25 psid, Buna-N, for motor gasoline or insulating oil use.

LVDA Cartridges have a patented* construction for removing dirt and water from hydrocarbon and other oils as well as gases. The outer media layer filters out silt, rust and other particulate contaminants. The inner layers absorb water and chemically bond it so that no water will release downstream. When the LVDA Cartridge reaches its water holding limit, the media swells shut and the differential pressure rapidly increases. This signals the operator that the cartridge must be changed.

TECHNICAL INFORMATION

Maximum operating temperature is 250°F (121.1°C).

Aquacon Cartridges will shut off flow when loaded with water or dirt. Appropriate precautions should be taken in critical applications where oil flow must be maintained.

With some lube and hydraulic oils all of the water may not be removed in one pass, and extra passes will be required for total removal.

Water capacity for the AC718 cartridges ranges from 2 to 4 quarts.

Product features

1.Removes free and emulsified water to less than 2 ppm

2.Differential pressure increase alerts operator to change cartridges

3.Effectively filters silt and other particulates

4.No media migration or “linting”

5.Easy to install and remove

6.Does not affect oil additives

7.Fits standard filter housings

Product parameters

Product application

1．Gasoline

2．Hydraulic Oil

3．Kerosene

4．Turbine Lube Oil

5．Diesel Fuel

6．Quench Oil

7．Insulating Oil

8．Synthetic Oil

9．Biodiesel

10．Phosphate Ester Oil
