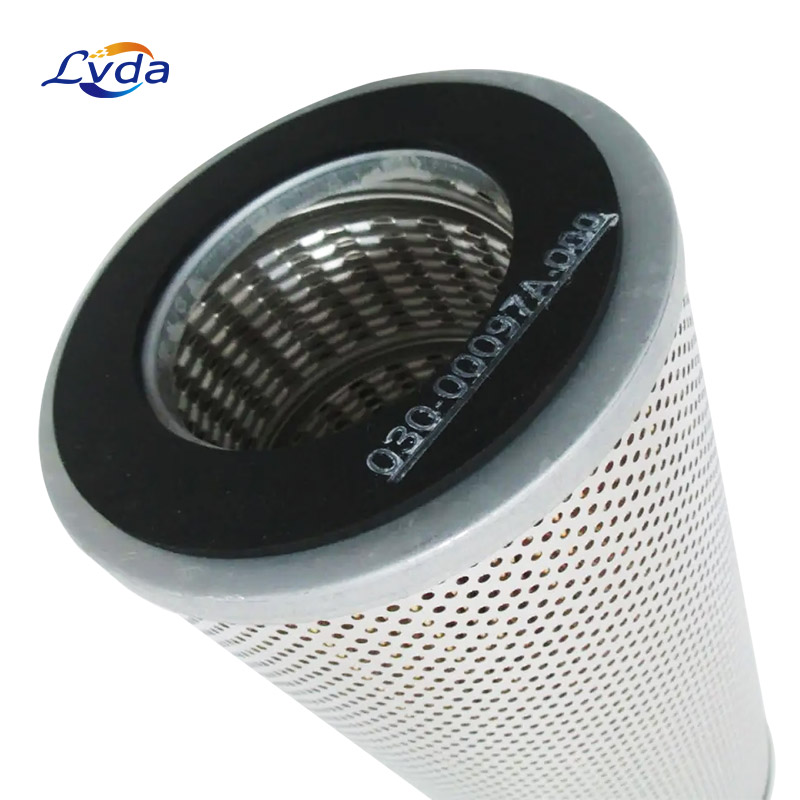

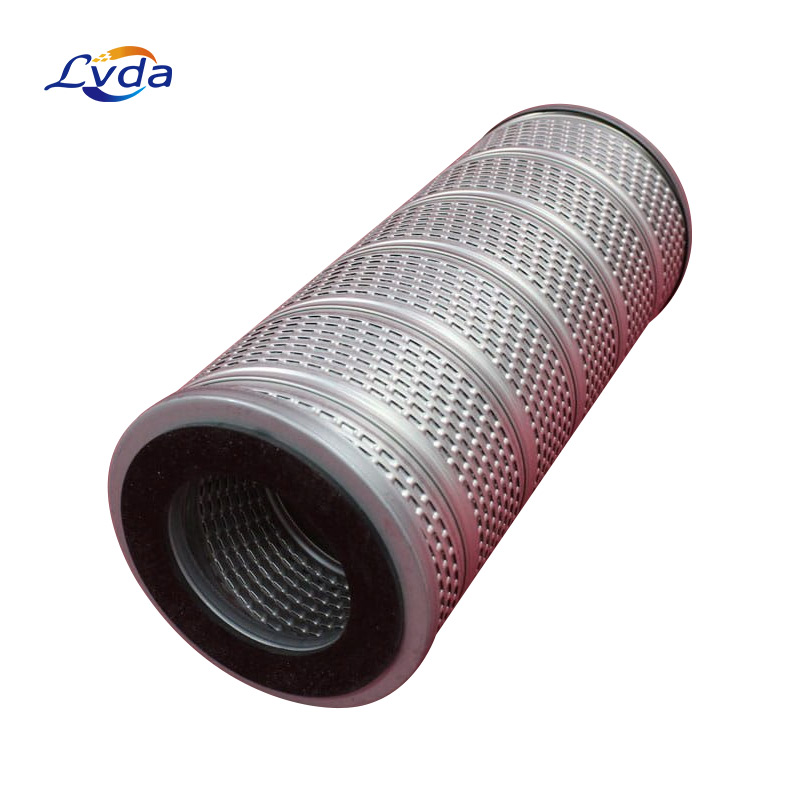

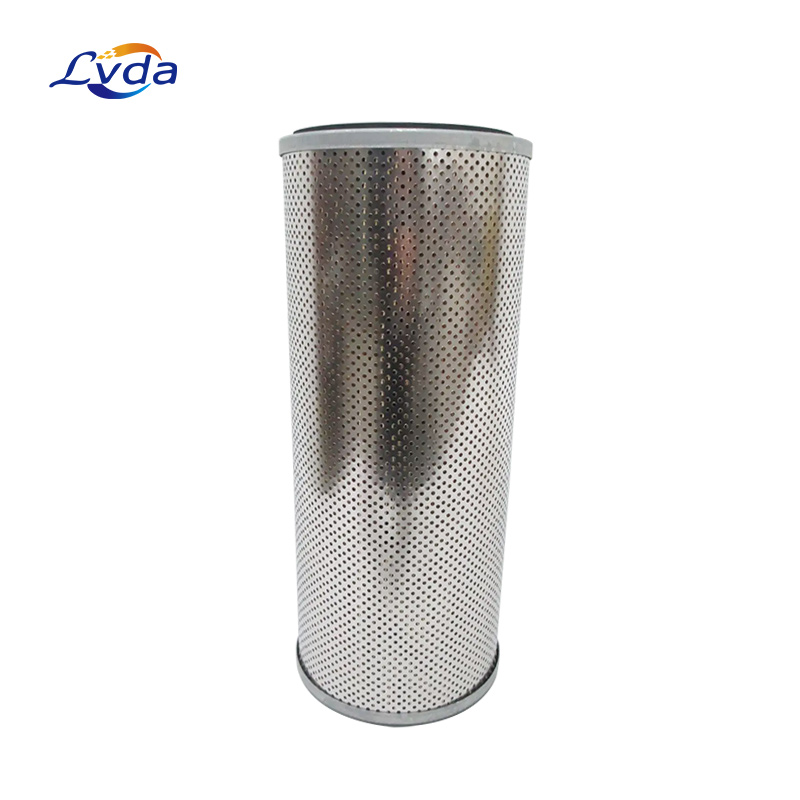

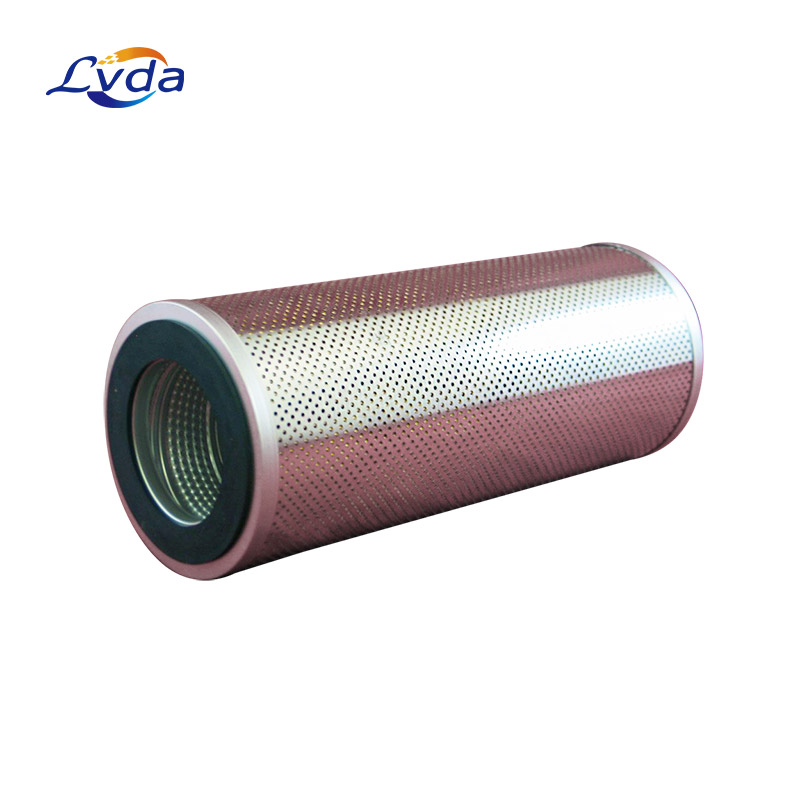

Replacement filter element is suitable for High Efficient GEA 030-00097A-000 Oil Filter

Replacement filter element is suitable for High Efficient GEA 030-00097A-000 Oil Filter

other filter

Model Number: 030-00097A-000

Outer Diameter, Top: : 6.00

Inner Diameter, Top: : 3.50

Micron Rating: : 25.00 NOMINAL

Size: : 6 INCH OD X 3.50 INCH DIA X 14.5 INCH LENGTH

Maximum Temperature: : 225 F

Product Details

The GEA 030-00097A-000 filter element replacement is built with the highest quality materials and workmanship. This oil filter offers equal to or better filtration performance based on the original OEM filter specifications.

Oil filter elements are used to remove contaminants from oil in a compressor system. Required filtration efficiencies are obtained through the exclusive use of high grade filter media and consistent surface area control, obtained by a strict maintenance of pleat quantity and depth. Oil filter leakages are prevented by the positive seals obtained with both plastisol and epoxy encapsulation. Viton seals are used where applications of synthetic oil are typical.

The GEA 030-00097A-000 filter element equivalent is manufactured with the highest quality standards including: ANSI / CAGI Institute ADF 400-1999 Compressed Air and Gas, ISO / FDIS 8573-4 and code number of sale 1DJ40 U.S. Government. We have replaced all major brands of OEM and replacement filters in tens of thousands of applications.

Product features

1.Durability and longevity

2.Beautiful design

3.High quality with reasonable price

4.Afford good service

5.Produce according to your sample or drawing

6.Each product individually tested

Product parameters

Model:	030-00097A-000
Place of Origin:	Henan, China
Brand Name:	LVDA
Life span:	6000- 8000h
Certificate:	ISO9001:2015
Quality:	100% Tested
Size:	6 INCH OD X 3.50 INCH DIA X 14.5 INCH LENGTH
Micron Rating:	25.00 NOMINAL
Outer Diameter, Top:	6.00" (152.40 MM)
Outer Diameter, Bottom:	6.00" (152.40 MM)
Inner Diameter, Top:	3.50" (88.90 MM)
Inner Diameter, Bottom:	3.50" (88.90 MM)
Length:	14.50" (88.90 MM)
Thread:	No Thread
Collapse Pressure Rating:	100 PSID
Maximum Temperature:	225 F
Direction of Flow:	OUTSIDE->IN
Changeout Differential Pressure:	20 PSID
Seal Material:	BUNA-N
Type of Adhesive:	EPOXY
Type of Endcap:	PLATED STEEL
Center Tube:	PLATED STEEL
Type of Media:	PAPER
Filter Area:	3556 SQ.IN.
Plating:	ELECTROTIN PLATED
Outer Jacket:	YES - METAL
Configuration:	DOUBLE OPEN END
