An oil filter is a filter designed to remove contaminants from engine oil, transmission oil, lubricating oil, or hydraulic oil. Their chief use is in internal-combustion engines for motor vehicles (both on- and off-road ), powered aircraft, railway locomotives, ships and boats, and static engines such as generators and pumps. Other vehicle hydraulic systems, such as those in automatic transmissions and power steering, are often equipped with an oil filter. Gas turbine engines, such as those on jet aircraft, also require the use of oil filters. Oil filters are used in many different types of hydraulic machinery. The oil industry itself employs filters for oil production, oil pumping, and oil recycling. Modern engine oil filters tend to be "full-flow" (inline) or "bypass".
Product features
1.Environmental Production
2.Favourable Price
3.Stable and constant pressure
4.Long service life
5.High efficiency
6.Durable and reliable
Product parameters

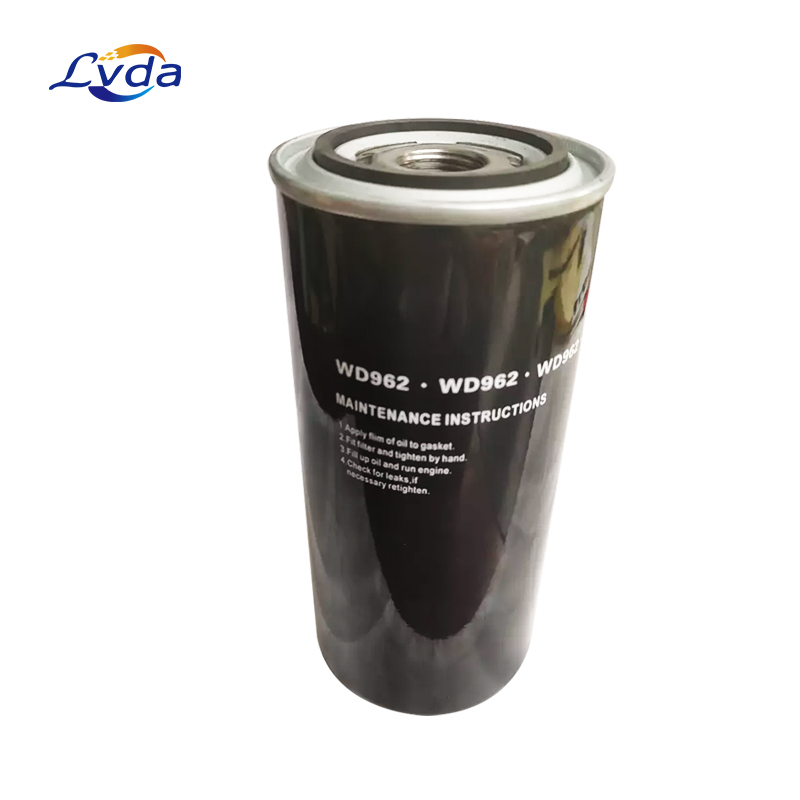

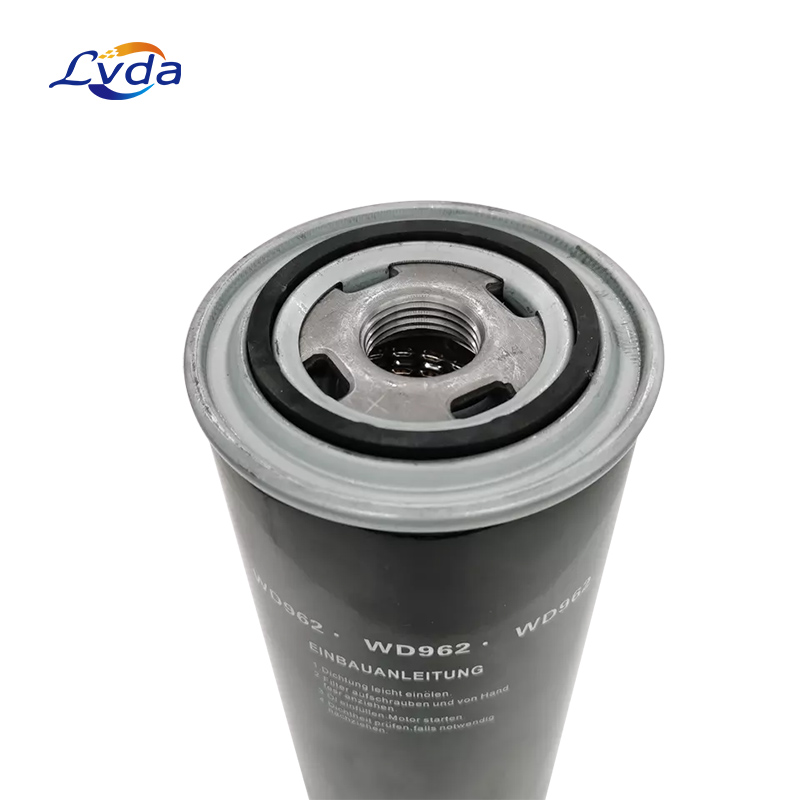

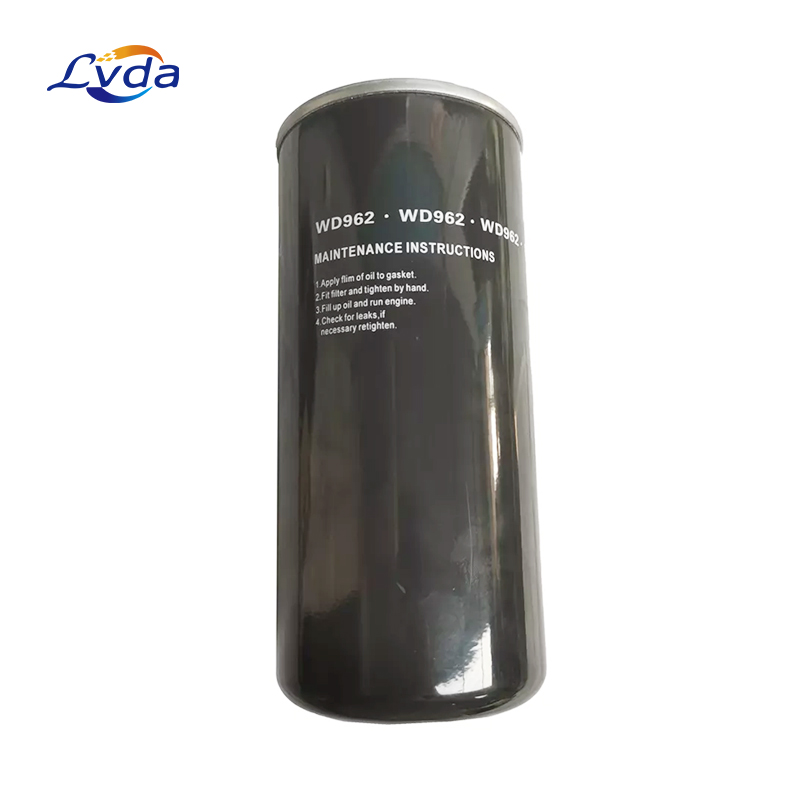

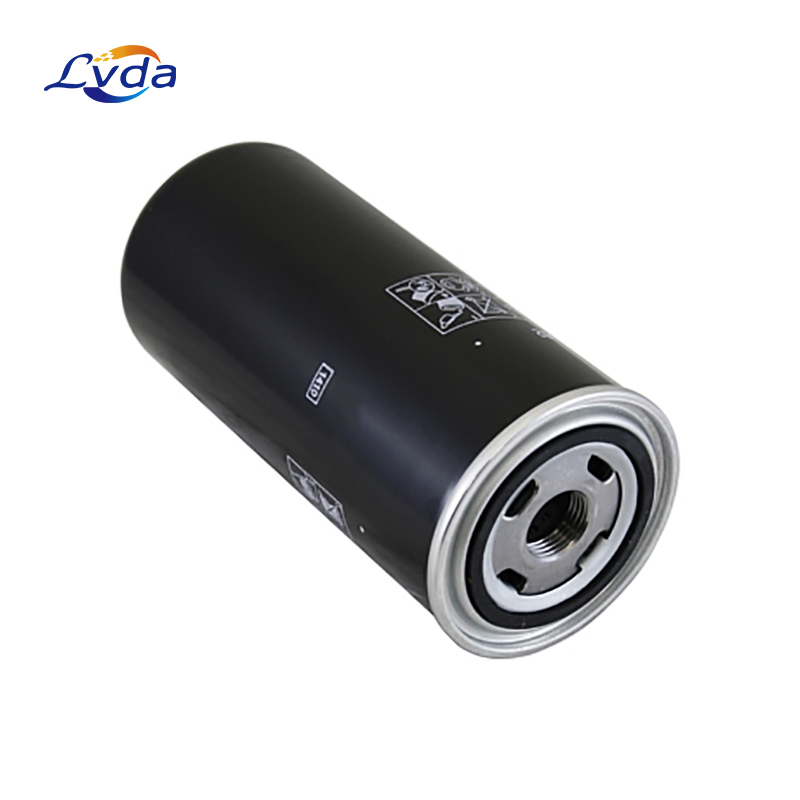

Model: | WD962 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | ISO9001 |
Quality: | 100% Tested |
Working temperature: | -10~+100℃ |
Working pressure: | -21~210 bar |
Fitration accuracy: | 0.1μm |
roduct Dimensions | 9.8 x 9.8 x 22.4 cm; 875 g |
Filter type | Hydraulic-Changeable,Screw-on Filter |
Outer diameter , D mm | 93 |
Height , H mm | 230 |
Thread , M | M24x1.5 |
Inside diameter seals , d2 mm | 62 |
Outside diameter seals , d3 mm | 71 |
Bypass valve , p1 bar | 2.5 |
Volume | 0.0022 m3 |
Product application
1.Automotive
2.Electronics
3.Food & Beverages
4.Chemical
5.Petrochemical
6.Plastics
7.Paint
8.General Industrial application
· Professional manufacturer with many years' experience
· Good quality with competitive price
· OEM & ODM are welcome
· Various payment items are acceptable
· Good service by experienced manager
