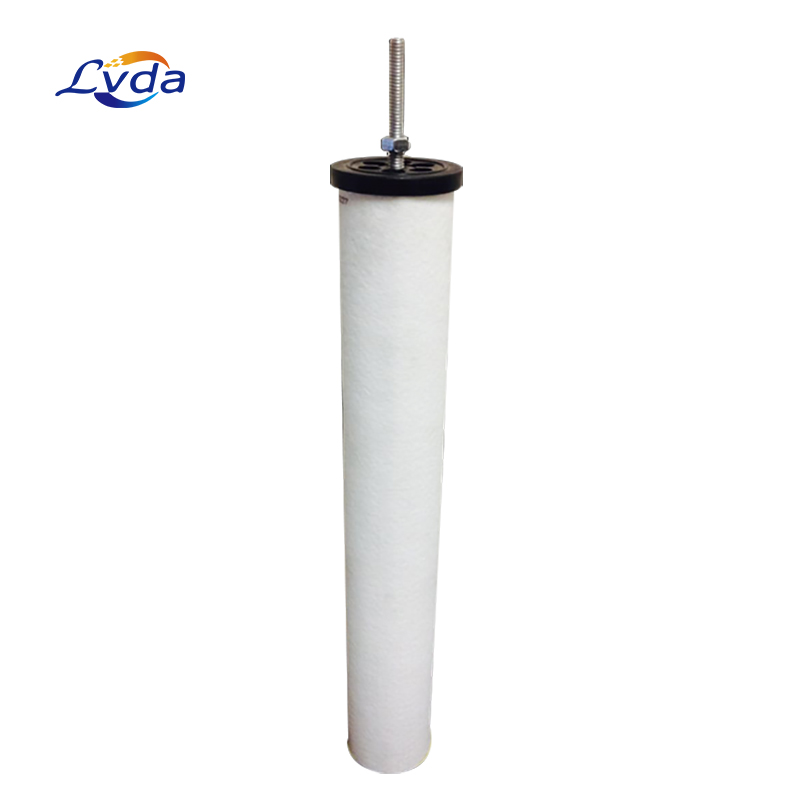

Replacement HANKISON E3-32 Filter

Product Details

The HANKISON E3-32 filter element replacement is built with the highest quality materials and workmanship. This coalescing filter element offers equal to or better filtration performance based on the original OEM filter specifications.

Coalescing filter elements are used to remove water, oil vapor and other contaminants from a compressed air line. These coalescing filters provide the highest level of clean compressed air with a minimum loss of pressure. Our coalescing filter elements are tough enough to hold their shape under pressure and maintain even pressure differentials to avoid collapsing of the filter element.

Grade 3 Filter: Maximum Efficiency Oil Removal Filter. Designed for coalescing ultrafine aerosols. Ultrafine coalescer delivers oil-free air for critical applications including conveying, electronics manufacturing, and nitrogen replacement. Removes 99.9999+% of solids 0.01 micron and larger. Solid particles: Class 1. Remaining oil content: Class 1. Maximum remaining oil content¹: 0.0008 ppm w/w. First stage: coated closed-cell foam sleeve acts as prefilter and flow dispenser. Second stage: multiple layers of matrix blended fiber media for ultra-fine coalescence.

Product features

1.Withstands temperatures to 150°F (66°C)

2.Push-on elements provide simple replacement

3.Piston type seals keeps unfiltered air from bypassing element

4.Stainless steel, corrosion resistant inner and outer core

> Low resistance to flow

> Seam welded durability

5.Matrix blended fiber media

> Large, effective surface area ensures high efficiencies and minimizes pressure drop

6.Coated, closed cell foam sleeve

> Resists chemical attack from oils and acids

> Ensures high efficiencies by preventing re-entrainment of coalesced liquids

7.Chemically resistant end caps

8.Silicone free

Product parameters

Product application

1．Machinery industry

2．Chemical and petrochemical industry

3．Pharmaceutical industry

4．Food & beverage industry

5．Plasics industry • Prozessindustrie

6．Instrumentation and control air

7．Clima control
