Product Details

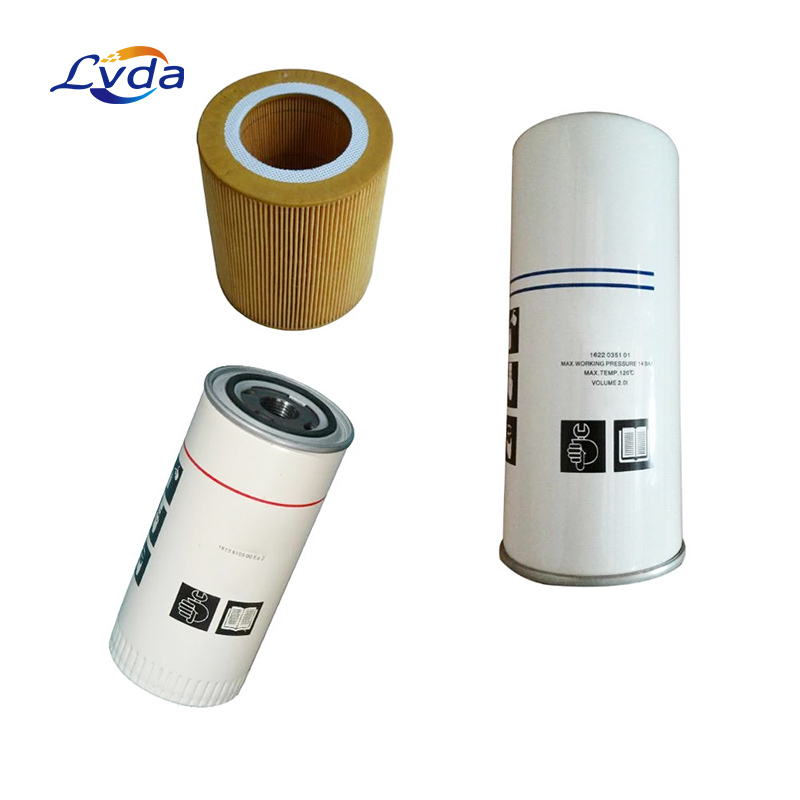

Importance for Air compressor air filter ,oil filter air oil separator
Air purification equipment is vital for the removal of system contamination.Air purification equipment is to remove air dash to keep compressor air clearance.
Oil filter is to remove contaminant from engine oil ,transmission oil,lubricating oil,hydraulic oil to keep oil tank clearance.
Oil air separator is separating the oil from compressor air filter parts ,make the compressed air cleaner and keep oil clean to return back oil tank
Product features
1. Longer service life: Regular use of LVDA spare parts to maintain your equipment can ensure that your device has a longer service life. We guarantee that each new component has the same good performance as the replaced component.
2. High quality: our original parts are manufactured according to the same strict standards as the compressor you have installed. These parts have passed the durability test and proved to be a better guarantee for your investment.
3. Reliability and productivity: The use of LVDA parts can fundamentally reduce the risk of production stoppage, because production stoppage is not only costly, but also may affect product quality, delivery time and profit margin. In short, LVD parts enable your compressed air unit to perform better.
4. Energy saving and cost-effectiveness: regular replacement and use of LVDA parts will enable your compressed air device to have a longer service life and achieve a smaller average pressure drop, so as to achieve energy conservation, achieve cost-effectiveness and provide a larger exhaust volume at a lower cost of ownership.
Product parameters

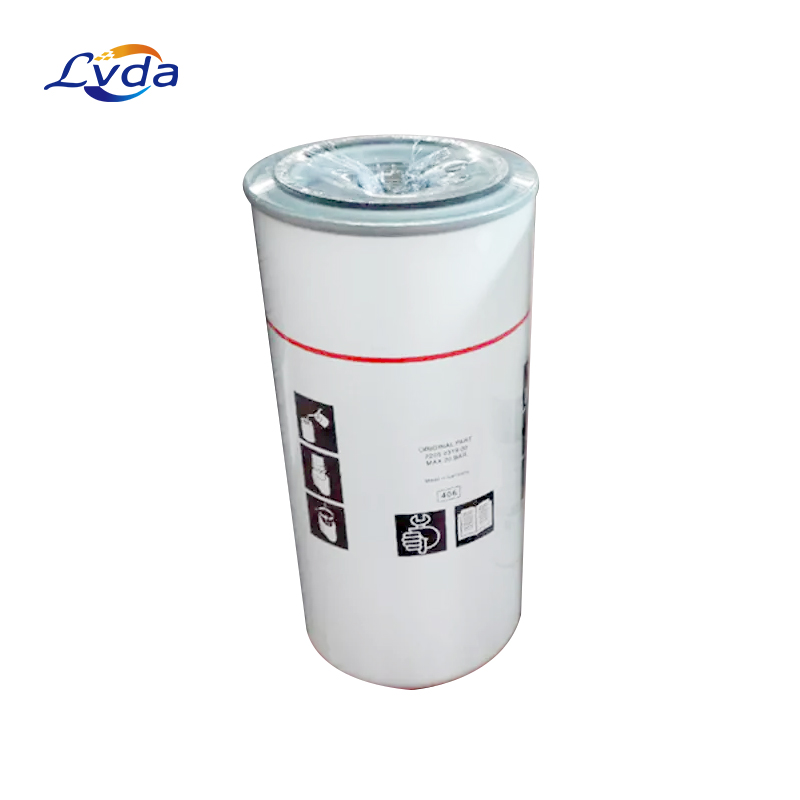

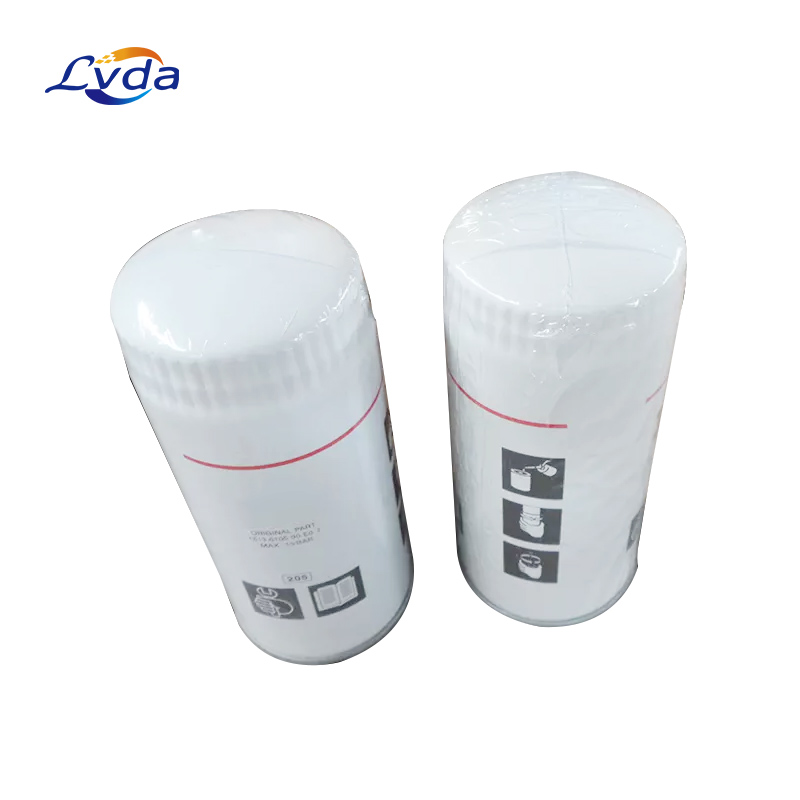

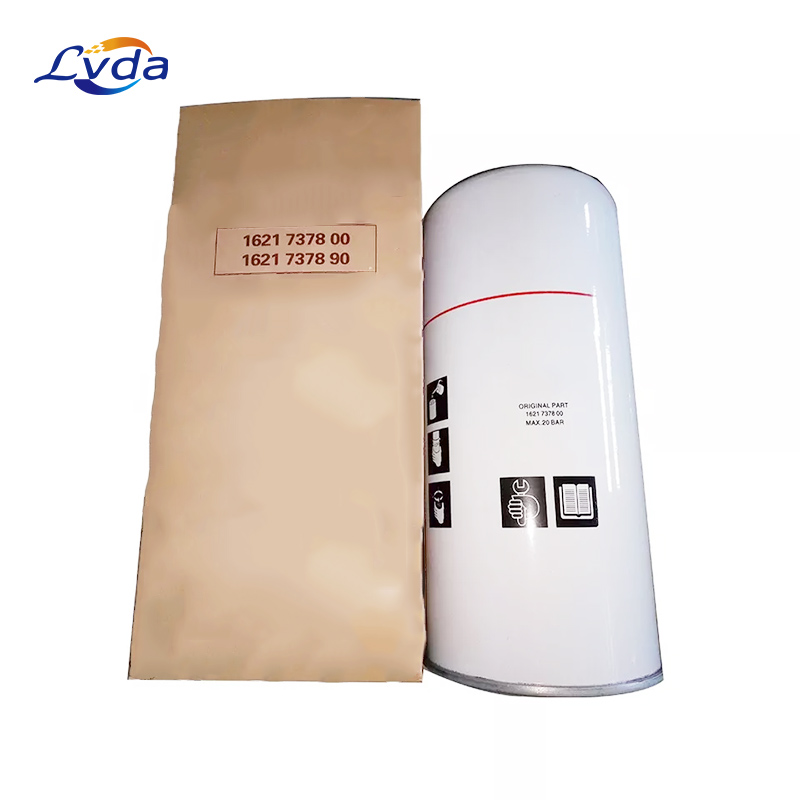

Part number | 1621737800 162187500 1621737890 |
Efficieney | 99.00% |
Life Time | 2500-3000 hours |
Total Height | 302 mm |
Outer Diameter | 136 mm |
Thread | H302*OD136*
Thread M39*1.75 |
Net Weight | 0.73 KG |
Brand | For Atlas Copco |
HS Code | 8421310000 |
Material | Ultra-fine glass fiber composite filter from USA HV & Lydall |
Application | for air compressor parts |
Initial pressure difference | ≤0.02Mpa |
Oil content | 3~6PPm |
Oil mist particles | ≤0.1μm |
Product application
1.Hotels,
2.Garment Shops,
3.Building Material Shops,
4.Manufacturing Plant,
5.Machinery Repair Shops,
6.Food & Beverage Factory,
7.Farms, Restaurant,
8.Home Use,
9.Retail,
10.Food Shop,
11.Printing Shops,
12.Construction works ,
13.Energy & Mining,
14.Food & Beverage Shops,
15.Advertising Company
