Product Details
In both oil free and oil injected compressors, oil is used for lubrication of the compressor element bearings and drive shaft bearings as well as the gears.
Any dust or dirt ingression will damage the rollers of these bearings and the gear contact surfaces.
Wear of the bearings or damage to the gears will eventually result in rotor contact, this will result in performance loss and reduced compressor element life.
Further damage to the bearing rollers will result in cage-breakage and ultimately complete destruction of the compressor element.
So it’s very important to use good performance oil filter to remove the impurities that might be mixed in the oil.
Oil filter in the compressor lubrication system, they barrier metal particles produced by at high speed and dust particles in the air. Ensure the overall lubrication systems to purify, reduce rotor wear, thereby increasing the life of the compressor.
Product features
1.High sealing quality of LVDA filter ensure absolute tightness of connecting
2.LVDA filter end cap is made of corrosion resistant materials.
3.LVDA filter use the correct by pass valve.
4.Filter paper of LVDA filter is of good quality and is uniformly spaced.
Product parameters

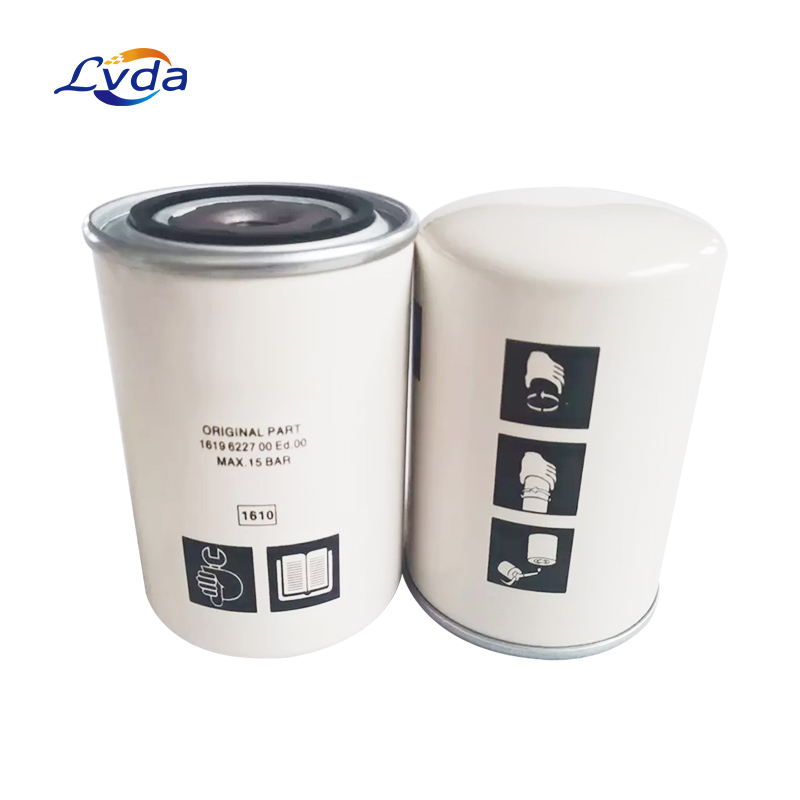

*Part Number | 1619622700 |
*Application | Air compressor accessories replacement |
*Working Time | 2000 h |
*Filter effect | 98.8% |
*Filter accuracy | 5 μm—10 μm |
*Material | fine glass fiber imported from HV&Ahlstrom company. |
*Size | standard |
*Quality | high quality |
*Custom | accept |
*Certificate | ISO9001:2015 |
*Initial pressure differential | ≤0.02Mpa |
Filtration Media (FILT-MED) |
Cellulose 27 um |
Media type (MED-TYPE) |
Cellulose |
Filtration Rating (F-RATE) |
27 um |
Body Height (H-0) |
142 mm |
Total Height (H-TOTAL) |
142 mm |
Orientation (ORI) |
Female |
Anti-drain back valve (RSV) |
Yes |

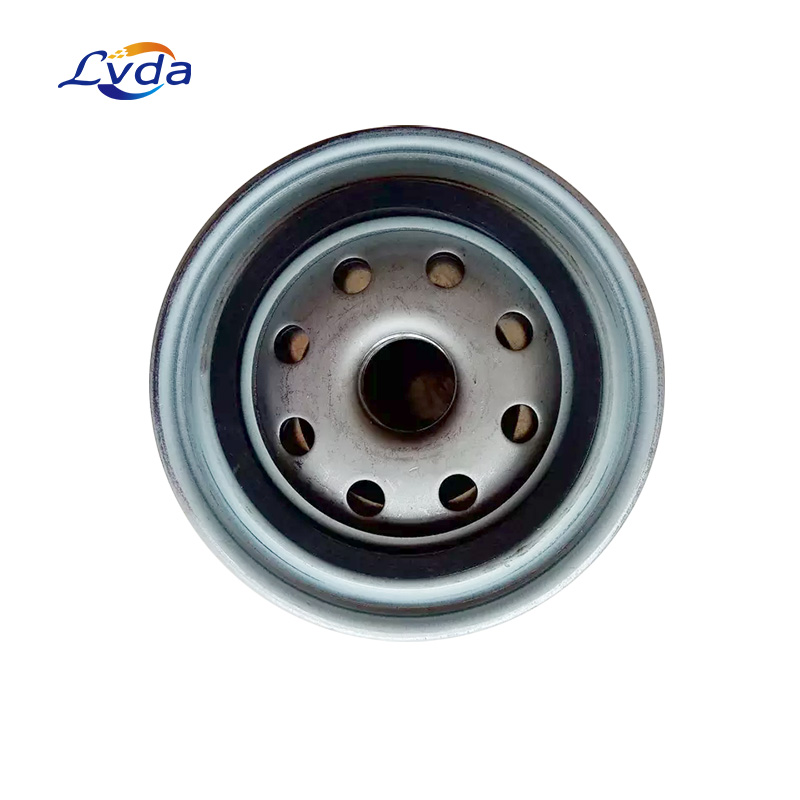

Thread (TH) |
UNF 3/4 inch Female Bottom 16 |
Type (TH-type) |
UNF |
Thread Size (INCH) |
3/4 inch |
Orientation |
Female |
Position (Pos) |
Bottom |
Treads per inch (TPI) |
16 |
Bypass Valve Opening Pressure (UGV) |
0.7 bar |
Product Net Weight (WEIGHT) |
0.565 Kg |
Outer Diameter (Ø OUT) |
93 mm |
Stat. HS-Code |
84149000 |
Product application
1.Hotels, Garment Shops,
2.Building Material Shops,
3.Manufacturing Plant,
4.Machinery Repair Shops,
5.Food & Beverage Factory,
6.Farms,
7.Restaurant,
8.Home Use,
9.Retail, Food Shop,
10.Printing Shops,
11.Construction works ,
12.Energy & Mining,
13.Food & Beverage Shops,
14.Advertising Company
