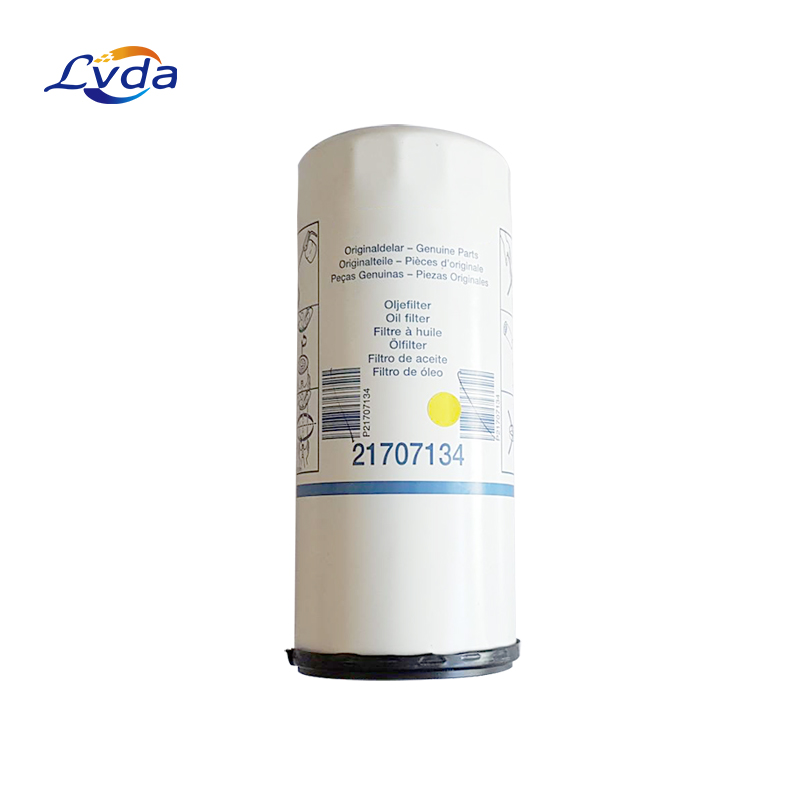

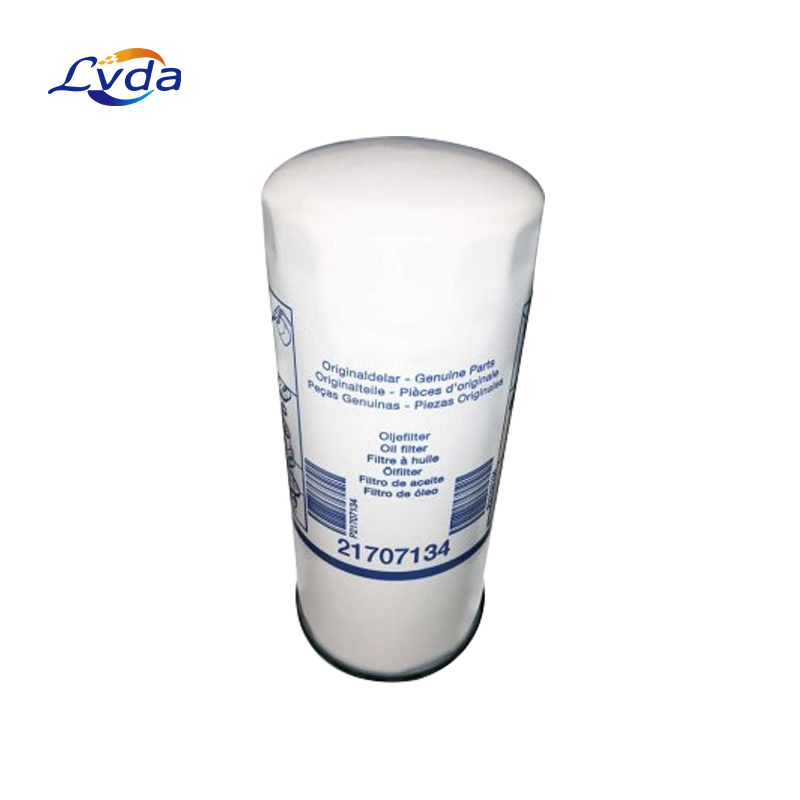

excavator diesel engine parts oil filter 21707134 Used For VOLVO Replacement

Product Details

LVDA filter Co.,Ltd is a set of filter elements, filter equipment research, development, production, sales in the integration of modern enterprise.Company specializing in the production of filter, filter, filter equipment and hydraulic components and so on.Our company, have advanced filter production lines and sophisticated testing equipment, first-class research and development team, professional technical team, highly efficient sales network, and have perfect after-sales service system. Main products are hydraulic filters, oil filters, air compressor, air filter, water filter series, replace imported filter series, etc.

We use imported depth type filter material,circular pore structure,gradient filter,can intercept granule furthest, to extend the service life.

We use high tech support materials.High tech support materials can not only play the role of support filter, material and

avoiding compressive deformation,but also protect the materials from being damaged during processing.

We also use the special spiral wrapping belts,so that filter layers can be connected firmly.Stationary pleated distance ensures the uniform flow when fluid penetrating the filter layer.Not only improving pressure drop,but also extending service life.

Product features

1.High filtration efficiency

2.Long life

3.Less engine wear, reduce fuel consumption

4.Easy to install

5.Product & service innovations

Product parameters

Model  Number	21707134
Description	Oil  filter
Size	OEM  standard size
Filtration  Efficiency	>99.7%
Warranty	5000-10000  miles
Sample	Available

Performance  Data

MICRON  RATING:25.00 NOMINAL

Beta  Rating: N/A

Collapse  Pressure Rating:75 PSID

MAXIMUM  TEMPERATURE:225 F

Direction  of Flow: OUTSIDE->IN

Dimensional  Specifications

(A)  OUTER DIAMETER, TOP:4.24 IN (107.70 MM)

(B)  OUTER DIAMETER,BOTTOM:4.24 IN (107.70 MM)

(C)  LENGTH:10.39 IN (263.91 MM)

Physical  Specifications

Seal  Material:BUNA-N

Type  of Adhesive:PLASTISOL

Type  of Endcap: PLATED STEEL

Center  Tube: PLATED STEEL

Type  of Media: PAPER

Filter  Area: SQ.IN.

PLATING:ELECTROTIN  PLATED

OUTER  JACKET:YES - METAL

CONFIGURATION:SINGLE  OPEN END

Product application

1.Power plant

2.Steel mill

3.Subway engineering

4.Chemical factory

5.Ship

6.Paper mill
