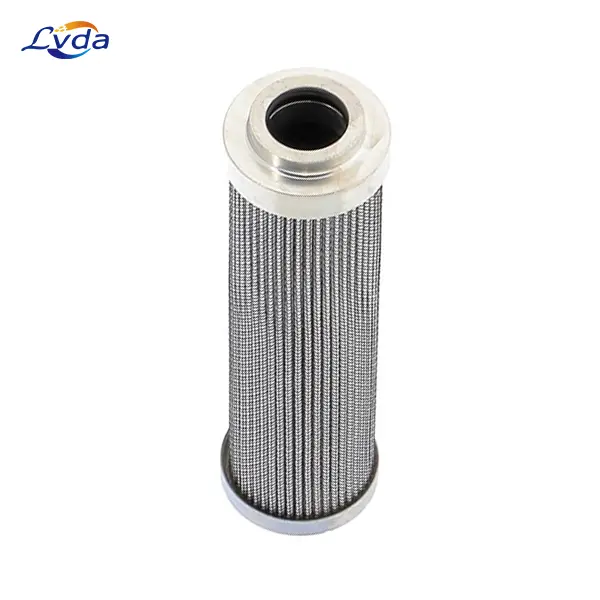

C66891-002 Hydraulic oil filter element

Product Details

C66891-002 is a high-pressure hydraulic filter element manufactured by lvda. It is widely used to protect industrial servo valves, high-pressure hydraulic manifolds, and lubrication systems in heavy machinery. Its primary function is to filter out microscopic metallic particles and contaminants before they reach sensitive servo control components.

Technical

Overall Length (OAL): 157.5 mm

Outer Diameter (OD): 43.2 to 44.5 mm

Inner Diameter (ID): 22.1 to 22.4 mm

End Cap Style: Single Open End

Seal Material: Viton (Fluorocarbon)

Media Type: Depth Metallic / Fiber Metal Felt – engineered to withstand high differential pressures and provide maximum dirt-holding capacity.

Micron Rating: 10 microns
