Product Details
The oil filter is a traditional paper filter whose performance is to remove metal particles and oil in the oil and other impurities, which play an important role in the maintenance of bearings and rotors.

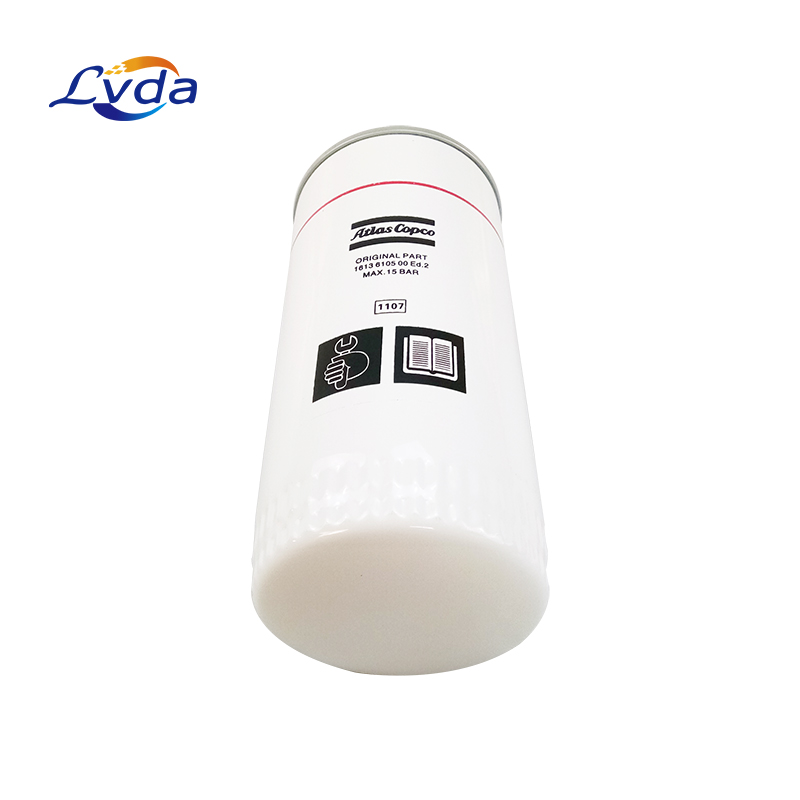

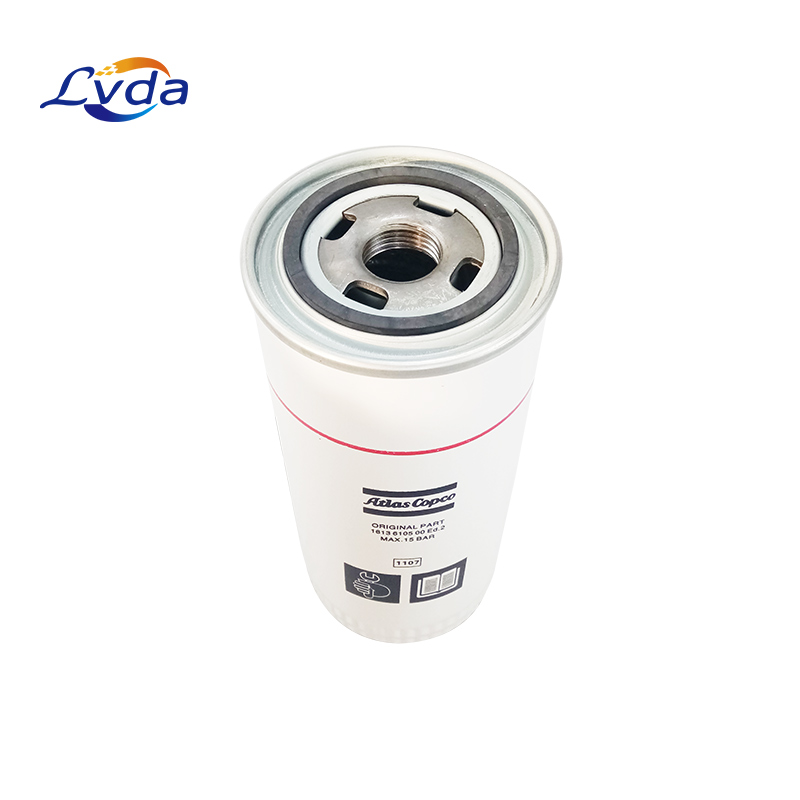

The 1613610500 special oil filter element for Atlas air compressor is produced and designed with high-quality filter paper, and has a certain high-efficiency filtration effect. Fiter element of oil filter is made by the thin fiberglass.
It has the same technical level as the original product and can be replaced with each other. The product is installed in the oil device of the air compressor and used in the lubrication system of the air compressor. The 1613610500 Atlas filter element produced by the LVDA company can effectively filter out the solid particles, impurities, oil deterioration substances in the oil, which is good to protect the main engine and ensure safe and efficient operation of the system.
This oil filter has the advantages of large dirt holding capacity, high pressure resistance, easy installation and cleaning, and can be customized according to the specific requirements of customers (excitation, caliber).
It should be noted that lubricating oil is applied to the surface of the sealing gasket during installation; the mixed use of inferior lubricating oil and lubricating oil with mismatched grades will accelerate the formation of carbon deposits and shorten the service life of the lubricating oil filter element.
Product features
1.Direct Replace Atlas Copco & Product.The Hydraulic Filter 1613610500 can replace Atlas Copco 1619-3771, Fleetguard HF6205, Baldwin B262,which means it can be used as spare part.
2.The Product has good quality,and ensures to meet Original Manufacturing.
3.The Product is suitable to use and easy to maintain.
4.Service life is up to 2000h,which is a great ensure to long-term Protection of machine.
5.Filtration Accuracy 10-15um.Compatibility 100% High Capacity,Low Intake Pressure,Great Permeating.
Product parameters
| Part Number | 1613610500 |
| Parts Name | Hydraulic Filter |
| Brand | ATLAS COPCO |
| Overall Height | 207.00 mm |
| Outer Diameter | 96.00 mm |
| Filtration Accuracy | 10μm-15μm |
| Filtration efficiency | 99.8% |
| Service life | About 2000h |
Product application
1.Petrochemical and chemical industries
2.Petroleum and natural gas industries
3.Paint, paint and ink industry
4.Pharmaceutical and bioengineering industries
5.Automobile manufacturing industry
