Product Details
The high flow inline slim-series fuel filters, available with 10 and 100-micron filter elements in both cellulose and stainless steel. Slim design to fit installations where space is an issue.
This lightweight in-line high-flow fuel filter, with its new improved light-weight design, is equipped with either a classic cellulose filter element for petrol or with the unique welded fuel filter insert that is 100% proof for alcoholic fuels such as ethanol.

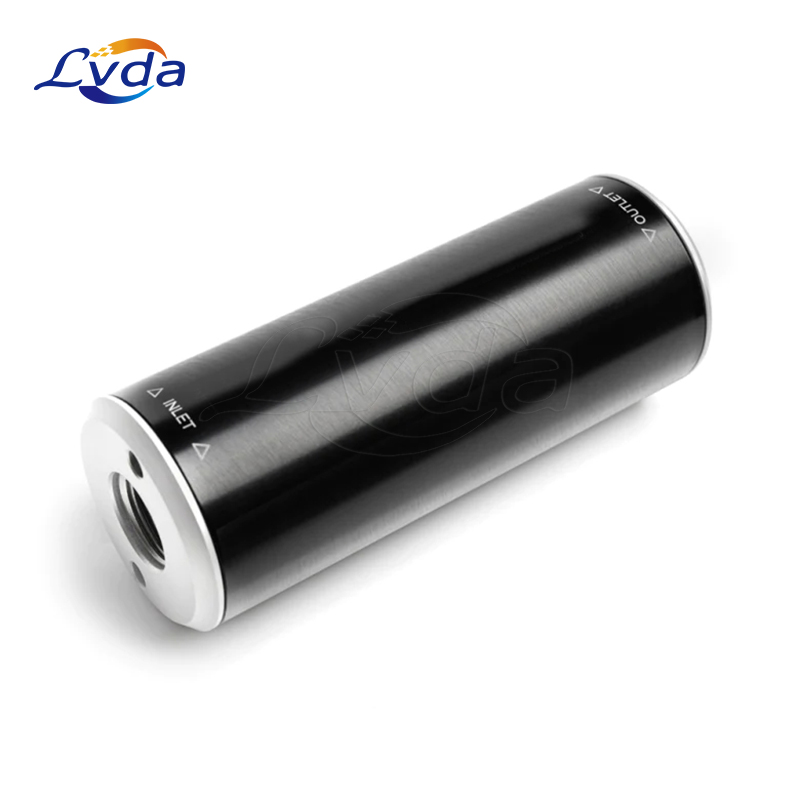

Lightweight slim-design motorsports in-line fuel filter
Safe for all type of fuels, including ethanol and methanol
Available with welded stainless steel filter elements for the highest possible flow
Over 60 sq. inches of filtering area
750 LPH, high flow with close to no flow loss
Available with both 10 and 100-micron inserts
The fuel filter is suitable for those with high demands for fuel flow and maximum filtration. The fuel filter acts like a affordable insurance that protects your engine and should never be overlooked, without proper filtration it does not take long before something goes very wrong in your setup.

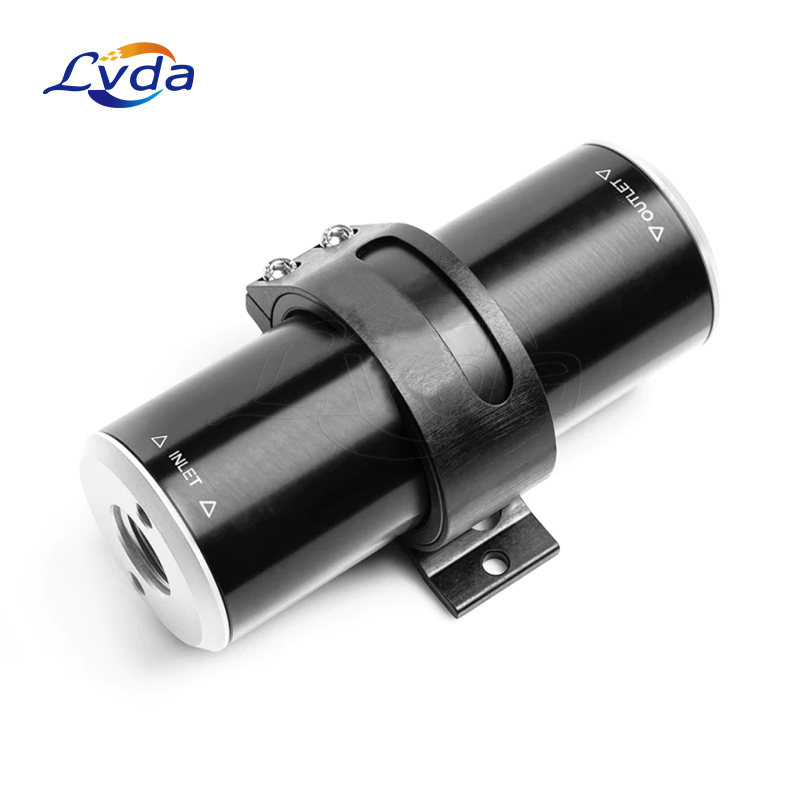

The fuel filter inserts in a series of fuel filters with integrated brackets, same functionality in a nice and functional design with integrated stainless steel brackets. And for those who need a fuel filter with higher flow capacity, greater filtration area, the filter offers 10-micron high-performance fuel filter.
Product parameters
Fuel compatibility Gasoline, Methanol, Ethanol, Diesel*

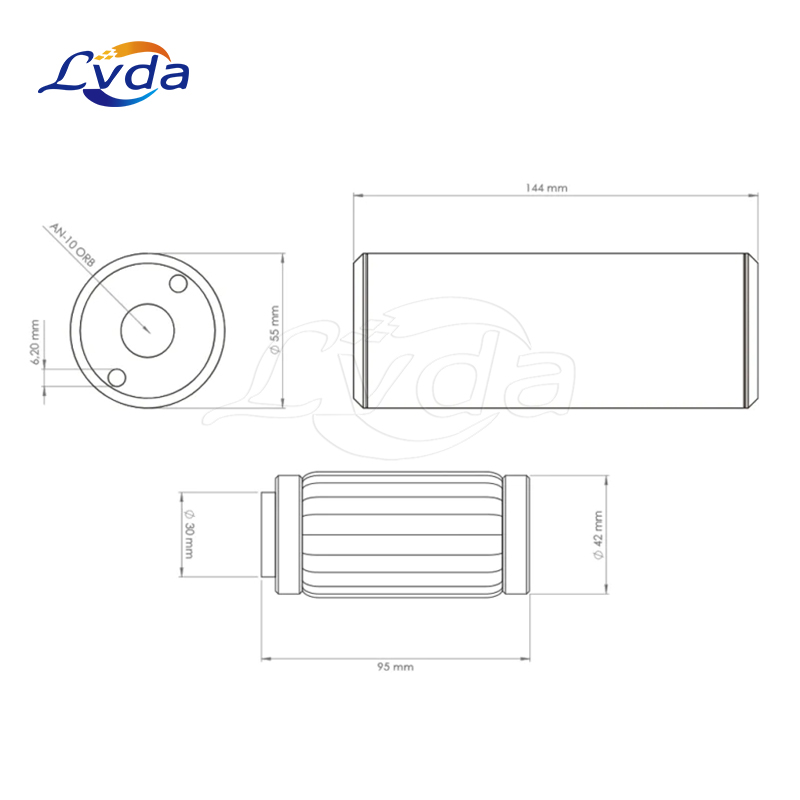

Length 144mm (5.67")
Diameter Ø 55mm (2.16”)
Inlet thread AN-10 ORB
Outlet thread AN-10 ORB
Weight 450g - 750g (0.9-1.6lb)*
Filter area 60 sq. in
Work pressure / Max pressure 8 BAR (116 PSI) / 21 BAR (305 PSI)
Flow capacity 750 LPH
Pressure drop ≈0.15 BAR (≈2.17 PSI)
* depending on fuel filter version
Product Features
The filter element fits your needs and fuel, available with inserts for both petrol and alcoholic fuels.

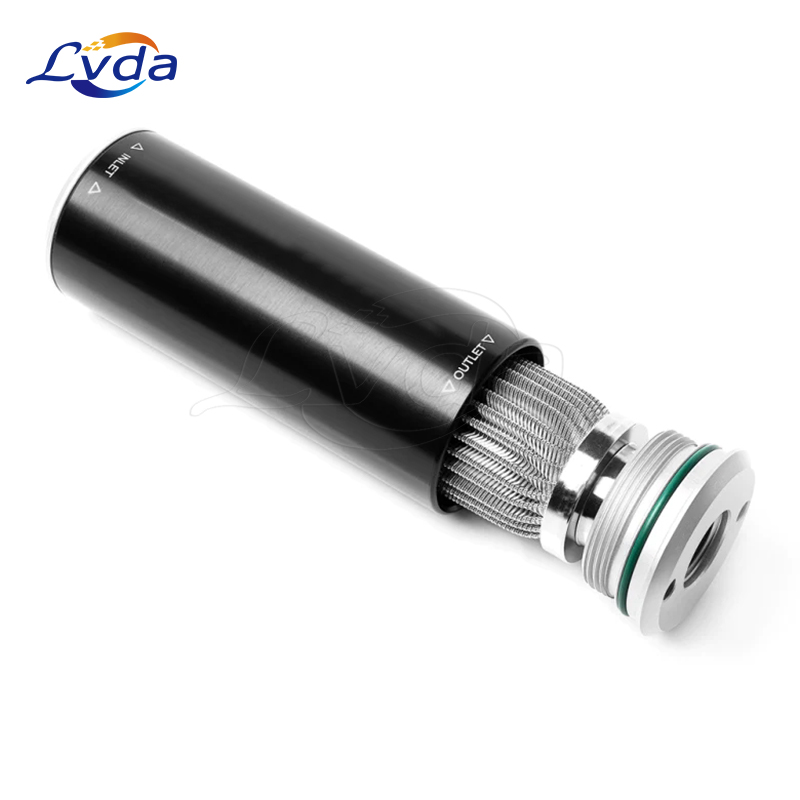

The high-flow slim series fuel filters are delivered with either a classic cellulose 10-micron fuel filter insert, these inserts are affordable and easy to replace for your petrol setup. When running alcoholic fuels, such as ethanol, methanol, and race fuels, you should choose one of our unique welded fuel filter elements that are available in 10-micron and 100-micron. These elements are now made of 100% stainless steel with unique welded end caps that exclude the common glue that can dissolve when changing from petrol to ethanol or when running aggressive fuels such as race fuel. When running the fuel filter you do not have to worry about failing filter elements ever again.

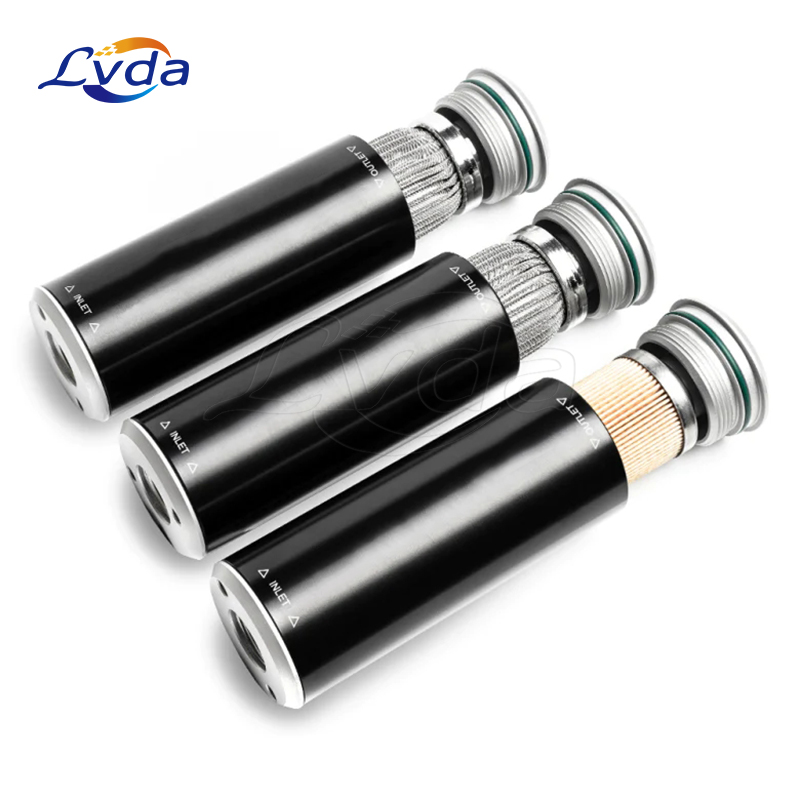

10-micron cellulose element for petrol / gasoline
10-micron stainless steel element for all types of fuel
100-micron stainless steel element for all types of fuel
The design grants high flow with close to no flow loss even when running high flowing high-pressure fuel pumps such as Deatschwerks DW400 and Ti Automotive GST450 / GST 520 (Walbro) fuel pumps. Also suitable for brushless fuel pump setups.
Product applications
Ethanol and methanol, petrol and alcoholic fuels,petrol / gasoline, all types of fuel
