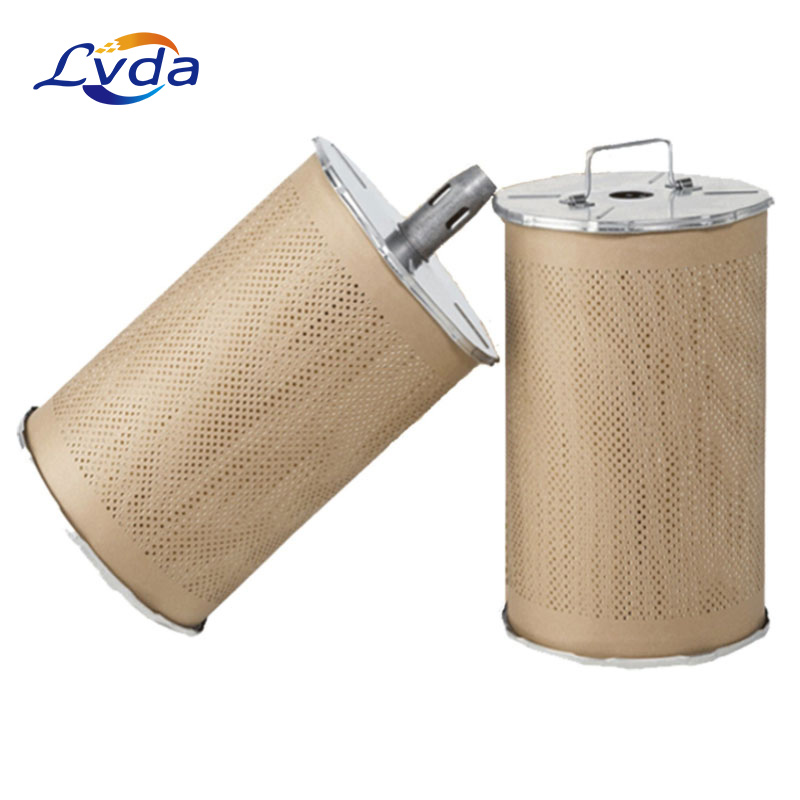

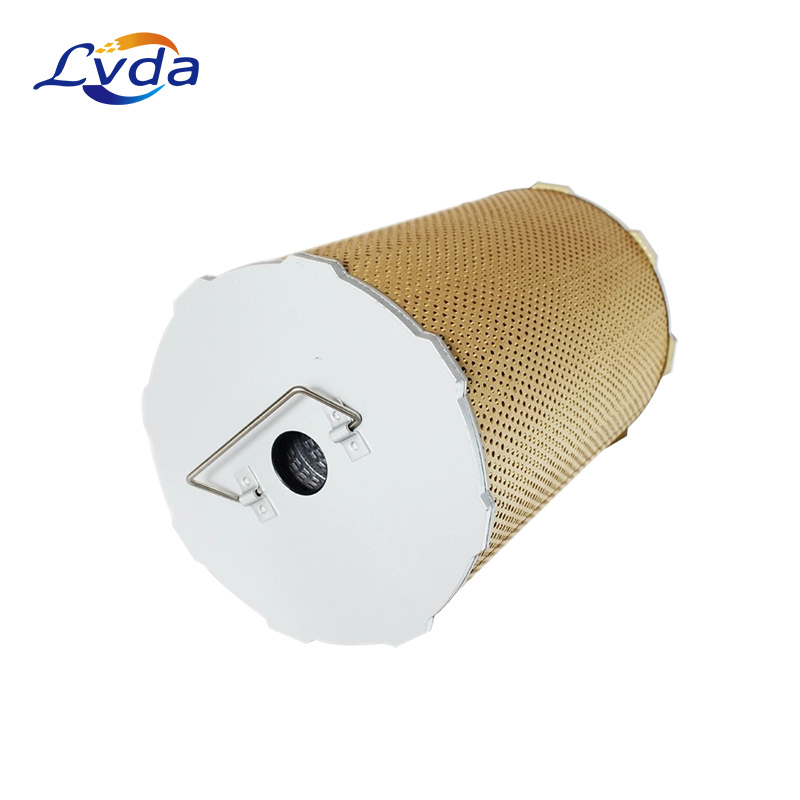

Replacement Elements HAF-2P2SF Fuel Lube Oil Clark Filter
Replacement Elements HAF-2P2SF Fuel Lube Oil Clark Filter
Replacement Elements HAF-2P2SF Fuel Lube Oil Clark Filter

Replacement Elements HAF-2P2SF Fuel Lube Oil Clark Filter

other filter

Model Number: HAF-2P2SF

Filtration Precision: : 12um

Flow Rate: : 64 Lpm

Usage: : Fuel/Lube Oil Filtration

Dust Capacity: : 4620g

Specification: : 9 7/8" x 30"

Get Quotation

Product Details

Hydraulic filters are the mediums in oil Hydraulic system used to arrest impurities and purify the oil to improve the operational efficiency of hydraulic components.

The hydraulic oil may contain various contaminates like welding scales, metal chips, tapping compound, sand particles, sludge, rust, water and dirt etc which may result in wear, corrosion, poor performance and ultimately failure of the equipment.

Hence it is necessary to use filters to remove contaminants and supply pure oil to the system. The function of the filter is to separate out contaminants from the oil and clean it.


Oil filter is a hydraulic element which removes impurities from the oil and supply clean oil to the system.

Most of the filters work on the principle of trapping the particles in small holes. The fluid may pass through filter element and particles above a certain size become trapped.


Product features

1.Hydraulic filters extend the life of your hydraulic system and its components considerably. Filters maintain an impurity-free fluid by limiting the intake of contaminants and swiftly removing new ones.


2.Hydraulic filters also protect components from failure caused by the build-up of particles between close-fitting parts or lubricated mechanisms. Protection from wear and tear reduces the chance of malfunction and keeps systems safer.


3.An efficient, well-placed filter also saves you money and downtime due to costly replacements or repairs. Ensuring your hydraulic filter suits your equipment’s needs the first time around will prolong its life and allow you to work more efficiently.


Product parameters


Model:

HAF-2P2SF

Place  of Origin:

Henan,  China

Brand  Name:

LVDA

Life  span:

1800-2000h

Certificate:

ISO9001

Quality:

100%  Tested

Working  temperature:

-10~+100

Working  pressure:

-21~210  bar

Filtration  Precision

12um

Flow  Rate

64  Lpm

Usage

Fuel/Lube  Oil Filtration

Dust  Capacity

4620g

Specification

9  7/8" x 30"

Weight

2Kgs

D1  (mm)

249.0 mm

D2  (mm)

239.0 mm

D3  (mm)

38.5 mm

H1  (mm)

436.0 mm

H2  (mm)

430.0 mm

H3  (mm)

372.0 mm

Product application

1.Mainly used for steel mill ,

2.power plant ,

3.mine/resource depot ,

4.paper mill,

5.paper making enterprise power hydraulic station system filtration,

6.petroleum,

7.metallurgy,

8.chemical industry,

9.railway,
