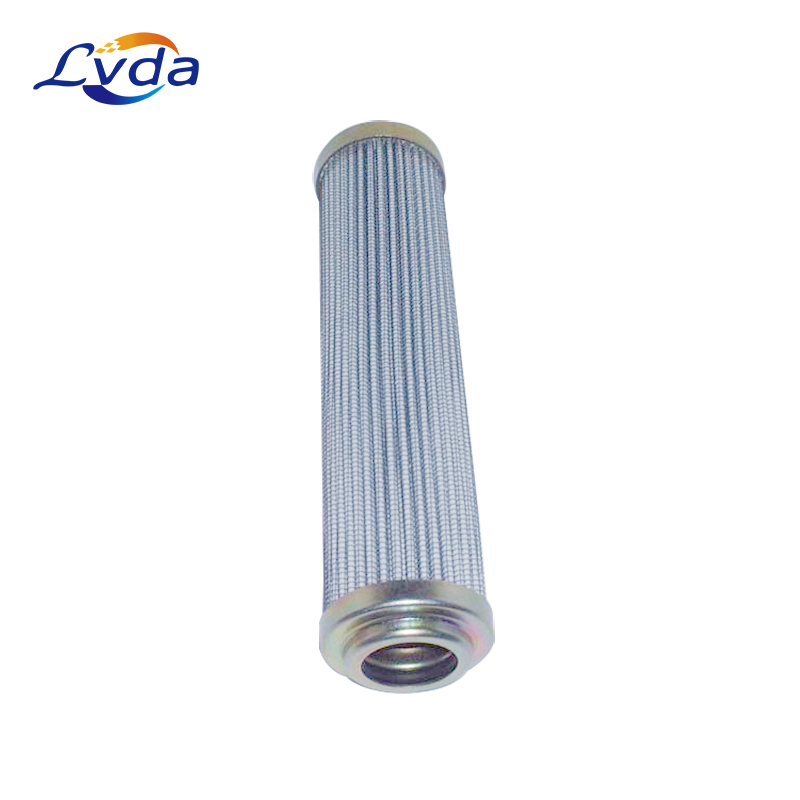

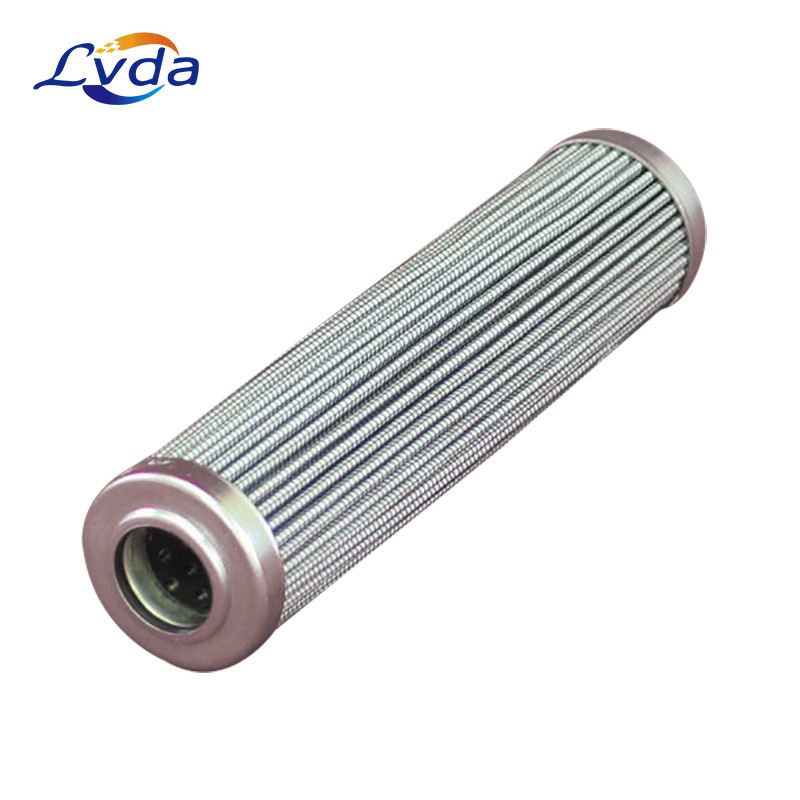

Replacement filter element is suitable for CPM38HN Hydraulic Filter

Replacement filter element is suitable for CPM38HN Hydraulic Filter

other filter

Model Number: CPM38HN

Outside Diameter Top : 1.654

Inside Diameter Top : 0.898

Operating Temp Min F : -13

Operating Temp Max F : 248

Flow Direction : Outside-In

Product Details

The hydraulic oil filter element has the advantages of convenient drainage, large flow area, small pressure loss, simple structure, small volume, light weight, uniform filter material, etc; The compatibility of filter material is applicable to the filtration of general hydraulic oil; The filter element is supported by solid filter materials on both sides and filter materials with strong stability. Removing a small amount of solid particles in the liquid or air can protect the normal operation of the equipment or the cleanness of the air. When the fluid enters the filter element with a certain specification of filter screen, its impurities are blocked, and the clean fluid flows out through the hydraulic oil filter element.

Product features

1. It can make the system quickly reach and maintain the desired level of oil cleanliness.

2. It can prolong the service life of the oil.

3. Reduce bearing wear.

Product parameters

Model	CPM38HN
Place of Origin	Henan, China
Brand Name	LVDA
Life span	2000- 4000h
Certificate	ISO9001:2008
Quality	100% Tested
Outside Diameter Top	1.654
Inide Diameter Top	0.898
Outside Diameter Bottom	1.654
Collapse Pressure	363
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	11.775474
Filter Area sq in	131
Flow Direction	Outside-In
Gasket Material	Viton
Beta Ratio 1	200/20.7
Beta Ratio 2	1000/26.6
Micron 1	25
