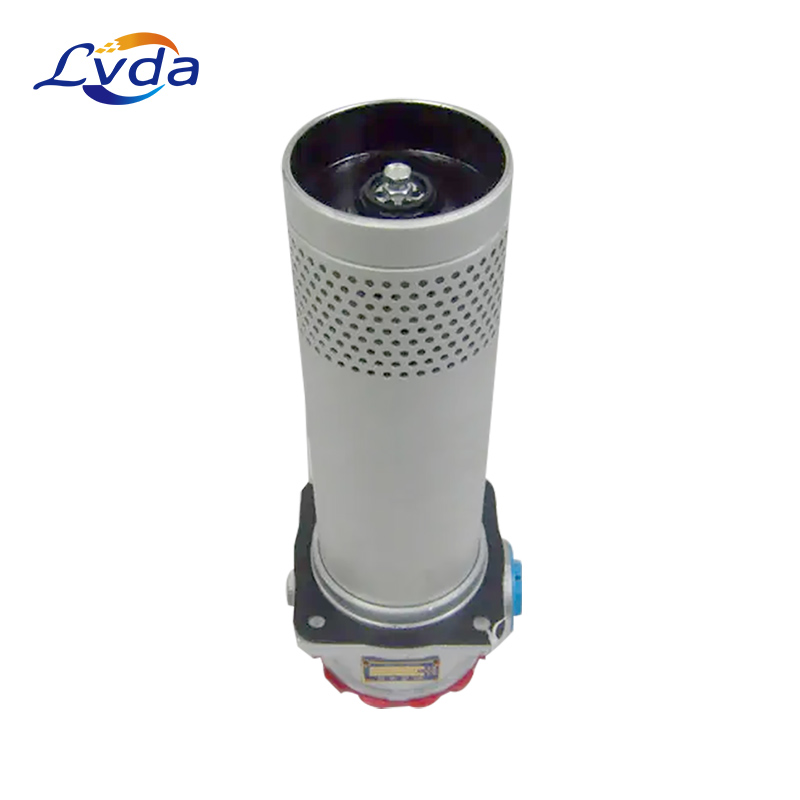

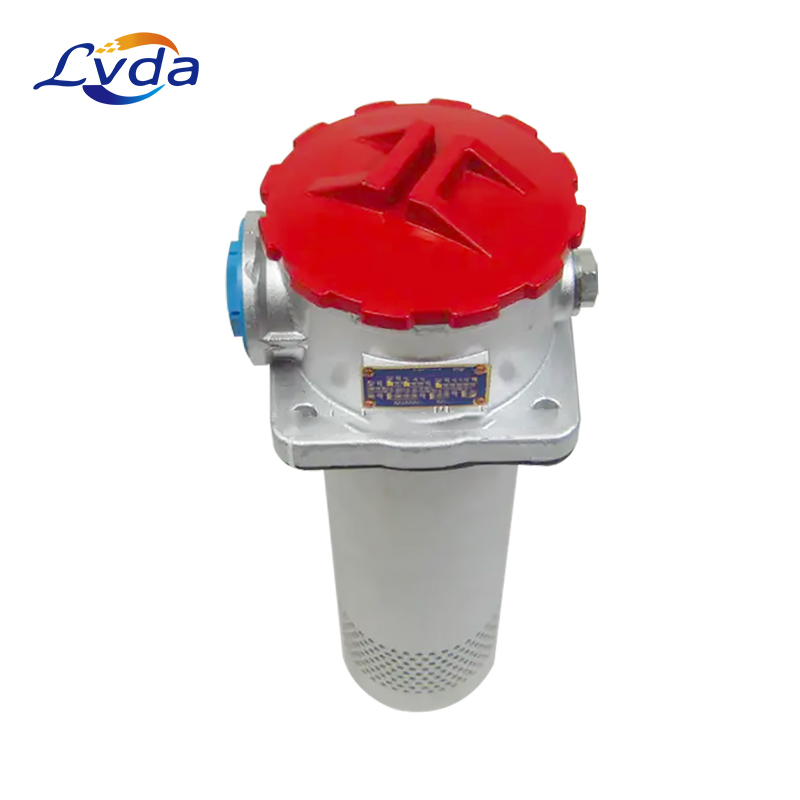

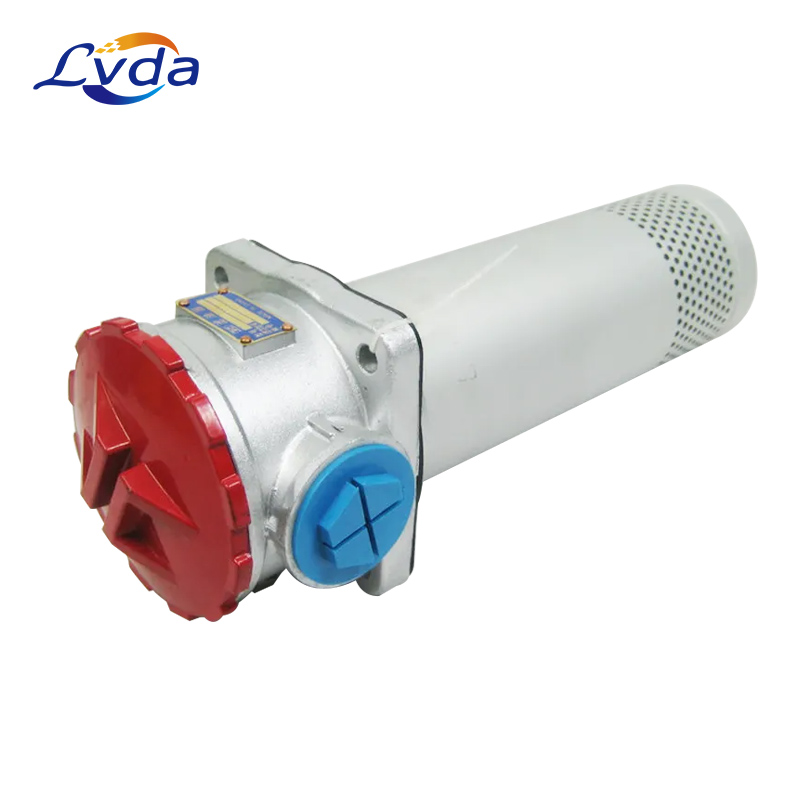

Replacement filter element is suitable for TF-400*100F Suction oil Filter for hydraulic system

Product Details

The TF-series filter can be installed on the top,at the side or in the bottom of the tank there is a check valve inside the filter.during maintenance,when filter element is withdrawn for washing,the check valve will close automatically to stop oil flowing out from the tank.

A vacuum indicator in the filter gives signals when the pressure drop across the element reaches 0.018MPa showing that the filter shall be cleaned,if no maintenance is done,as the pressure drop rises to 0.02MPa,the by-pass valve will open to allow oil flowing into pump.

Product features

1.Easy to install and connect,Simplify system lines.

2.Set self sealing valve,It is convenient to replace and clean the filter.

3.With filter core pollution sender and oil passage valve,Improve the reliability of the hydraulic system.

Product parameters

Product application

1. Metallurgy: It is used for filtering the hydraulic system of steel rolling mill and continuous casting machine and filtering various lubricating equipment.

2. Petrochemical: separation and recovery of products and intermediate products in oil refining and chemical production, particle removal and filtration of oilfield well water and natural gas.

3. Textile: purification and uniform filtration of polyester melt during wire drawing, protective filtration of air compressor, oil and water removal of compressed gas.

4. Electronics and pharmacy: pretreatment filtration of reverse osmosis water and deionized water, pretreatment filtration of cleaning solution and glucose.

5. Thermal power and nuclear power: purification of lubricating system, speed control system and bypass control system oil of gas turbine and boiler, and purification of feed pump, fan and dust removal system.
