Product Details
Hydraulic pressure is a device or method that converts mechanical energy of power into fluid pressure energy by a hydraulic pump, operates an actuator such as a hydraulic cylinder or a hydraulic motor, and converts it back into mechanical energy.
Hydraulic oil filters filter impurities in hydraulic oil. If the hydraulic oil filter is not working properly, contaminants may be pressurized into the hydraulic system, causing damage or malfunction of the hydraulic unit, causing poor performance or leakage of the orifice, and locking.

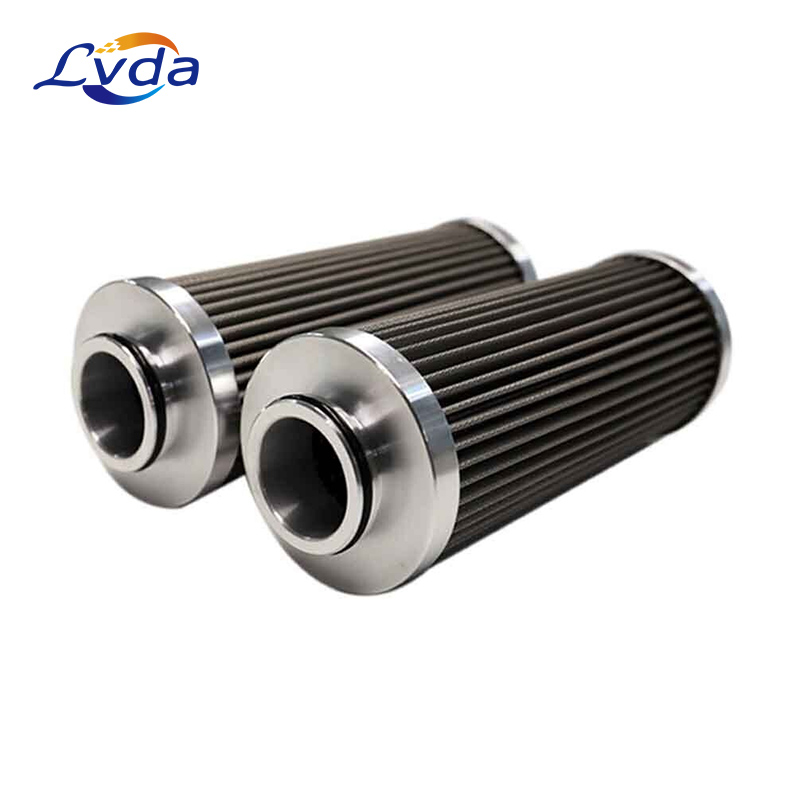

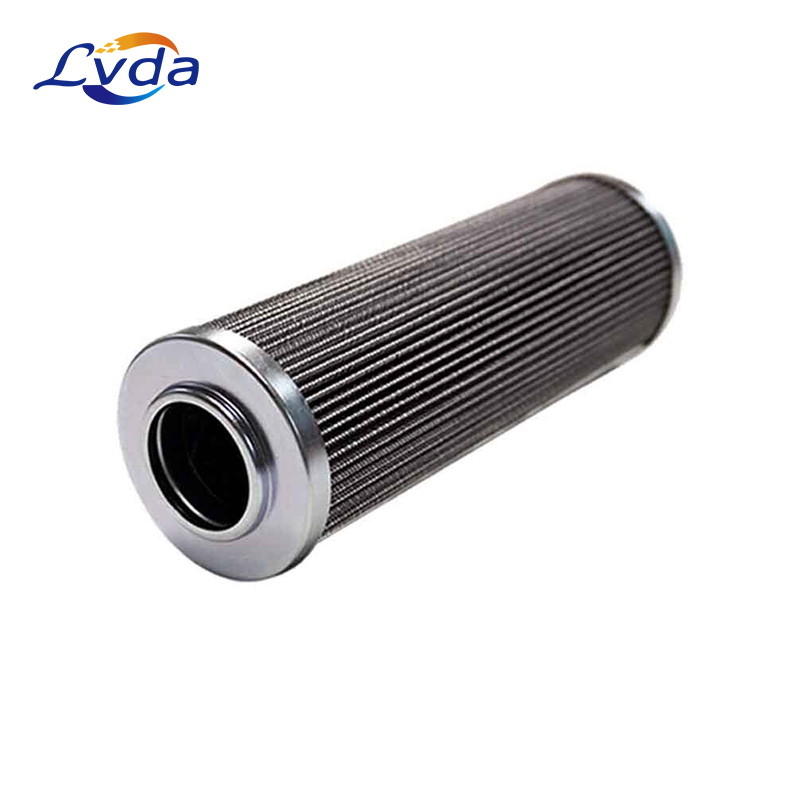

Hydraulic oil filter elements are made by bending filter media made of wood fiber, synthetic oil, and glass fiber with steel mesh inside and outside to withstand strong hydraulic pressure.
Types of filters used in hydraulic systems
1. Inhalation filter: A strainer with a filtration grade of 25-240um is mainly used and is installed on the suction side of the pump.
2. Pressure Line Filter: The filter grade of 3 to 40 um is frequently used for installation on the pressure line, and the filter element must withstand a pressure of 6 kgf/cm2.
3.Return line filter:Install on return line of hydraulic circuit, filter oil returning to oil tank.The filter grade of the return filter is about 5 to 40 um.
Product features
1.Keep oil clean by capturing contaminants that cause engine damage.
2.Include heavy duty components that are built to perform, built to last.
Deliver essential engine protection for maximum cold flow performance.
3.Removes contaminants from the lube oil system
4.Traps abrasive contaminants in the lube oil to keep them from entering the lubrication system
5.Prevents engine damage from dirt and particles in the oil
Product parameters
Model | 938295Q(SH74039) |
Place of Origin | Henan, China |
Brand Name | LVDA |
Life span | 4000H |
Certificate | ISO9001:2015 |
Quality | 100% Tested |
Working temperature | -10~+100℃ |
Working pressure | -21~210 bar |
Filter Rating (Microns): | 10 |
Filter Media: | Pleated Microglass |
Seal Type: | Viton |
Collapse Pressure: | 305 |
Item: | Hydraulic Filter |
Operating Temp: | -13 to 250 |
Size: | 114*412 |
Product application
1. Metallurgy: It is used for filtering the hydraulic system of steel rolling mill and continuous casting machine and filtering various lubricating equipment.
2. Petrochemical: separation and recovery of products and intermediate products in oil refining and chemical production, particle removal and filtration of oilfield well water and natural gas.
3. Textile: purification and uniform filtration of polyester melt during wire drawing, protective filtration of air compressor, oil and water removal of compressed gas.
4. Electronics and pharmacy: pretreatment filtration of reverse osmosis water and deionized water, pretreatment filtration of cleaning solution and glucose.
5. Thermal power and nuclear power: purification of lubricating system, speed control system and bypass control system oil of gas turbine and boiler, and purification of feed pump, fan and dust removal system.
6. Mechanical processing equipment: lubrication system and compressed air purification of paper machinery, mining machinery, injection molding machines and large precision machinery, and dust recovery and filtration of tobacco processing equipment and spraying equipment.
