Product Details

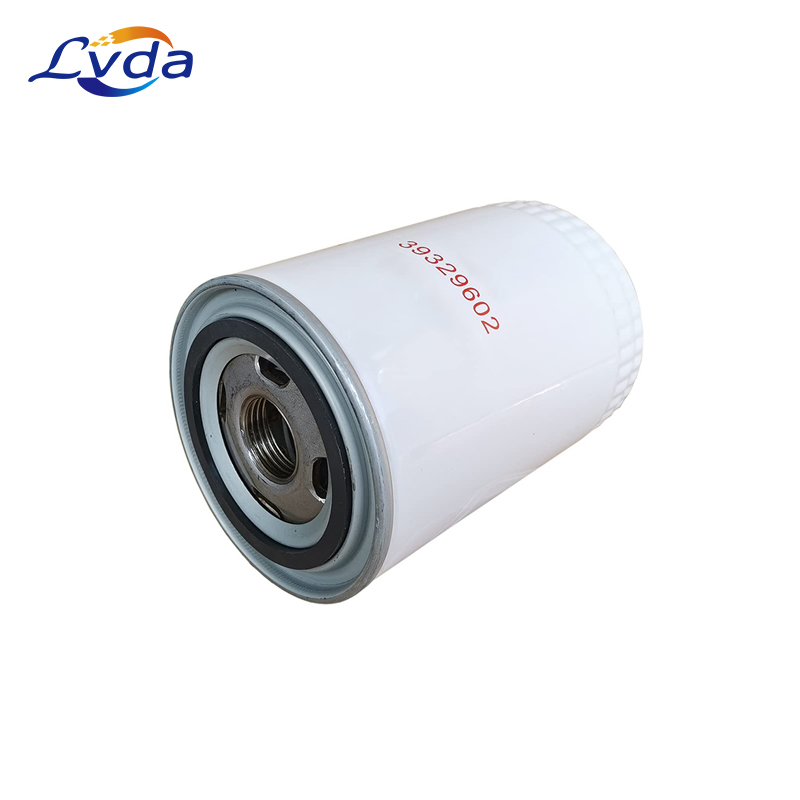

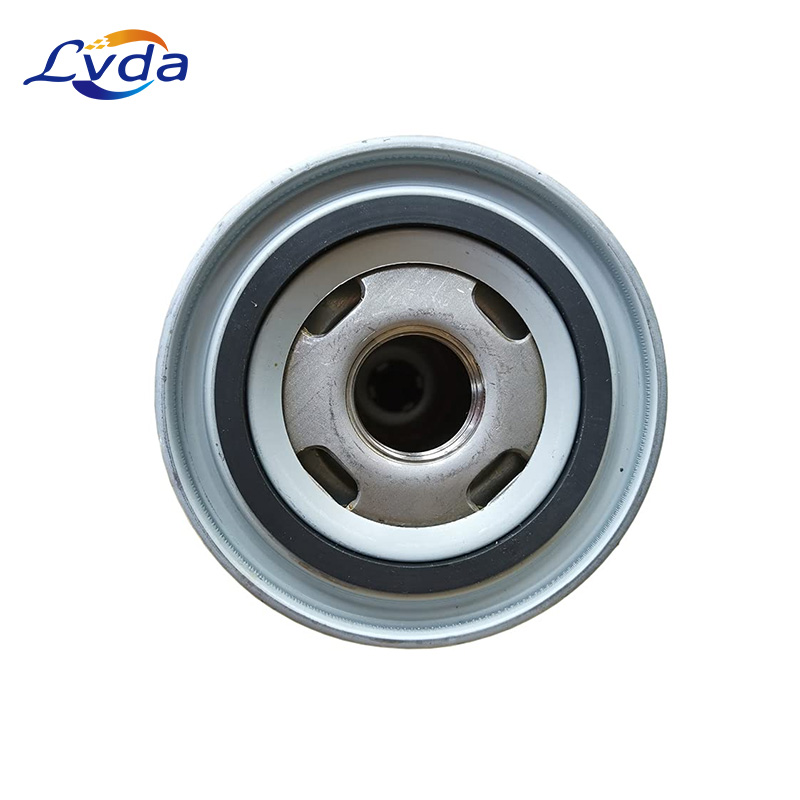

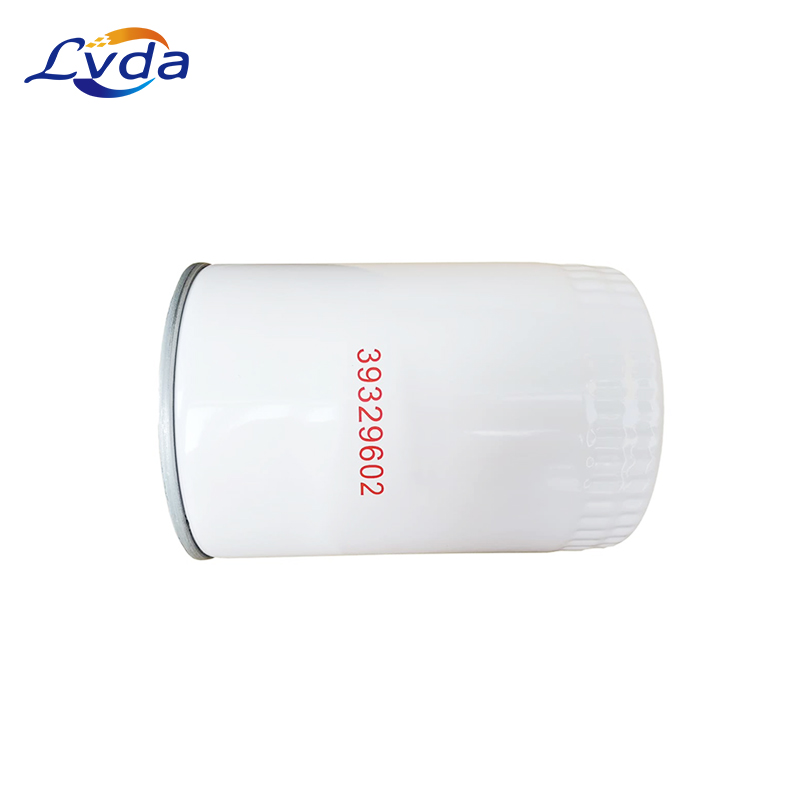

39329602 filter replacement is manufactured to meet or exceed the OEM specification. Type: Spin-On Oil Filter Approximate Height: 5.67 in. Approximate Depth: 3.66 in. Approximate Length: 3.66 in. Approximate Weight: 2 lbs. Oil Filters Oil Filters present the second barrier of protection. These are usually rated at 10 to 20 microns.Filter material is also paper or synthetic, and can be surface loading or depth loading. (contaminants enter the filter media and are trapped within the depth of the media, rather than only on the surface.) Canister (Cartridge) Oil Filter Element - This consists of an element inside a metal canister. The canister must be opened, and the new filter installed inside the cavity. This element may be a variety of materials (metal mesh, synthetic, paper, or cloth) and will be manufactured with micron ratings compatible to the OEM specifications. Spin-On Oil Filter Element - Simple removal by spinning off and replacing the element. Manufactured of synthetic, paper, metal mesh or cloth,with a micron rating which varies based on manufacturer specifications.
Product features
1. Heavy duty high quality steel
2. High efficiency filter paper: Ahlstrom paper/HV paper
3. High quality rubber gasket
4. High quality adhesive
Product parameters
Model: | 39329602 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 2000- 4000h |
Certificate: | ISO9001:2015 |
Quality: | 100% Tested |
Overall Height | 135.00 mm |
Outside diameter | 96.00 mm |
Type： | Compressor Lube High Pressure Oil Filter |
Package Dimensions | 14.8 x 9.9 x 9.7 cm; 609 Grams |
The Screw Thread: | 1"-12 |
Sealing Ring Size: | 2.81" |
Outside Diameter: | 3.66" |
Height: | 5.60" |
Product application
1. Metallurgy: It is used for filtering the hydraulic system of steel rolling mill and continuous casting machine and filtering various lubricating equipment.
2. Petrochemical: separation and recovery of products and intermediate products in oil refining and chemical production, particle removal and filtration of oilfield well water and natural gas.
3. Textile: purification and uniform filtration of polyester melt during wire drawing, protective filtration of air compressor, oil and water removal of compressed gas.
4. Electronics and pharmacy: pretreatment filtration of reverse osmosis water and deionized water, pretreatment filtration of cleaning solution and glucose.
5. Thermal power and nuclear power: purification of lubricating system, speed control system and bypass control system oil of gas turbine and boiler, and purification of feed pump, fan and dust removal system.
6. Mechanical processing equipment: lubrication system and compressed air purification of paper machinery, mining machinery, injection molding machines and large precision machinery, and dust recovery and filtration of tobacco processing equipment and spraying equipment.
7. Railway internal combustion engine and generator: filtering of lubricating oil and engine oil.
8. Automobile engine and construction machinery: air filter, oil filter, fuel filter for internal combustion engine, various hydraulic oil filters, diesel oil filters and water filters for construction machinery, ships and trucks.
