Product Details

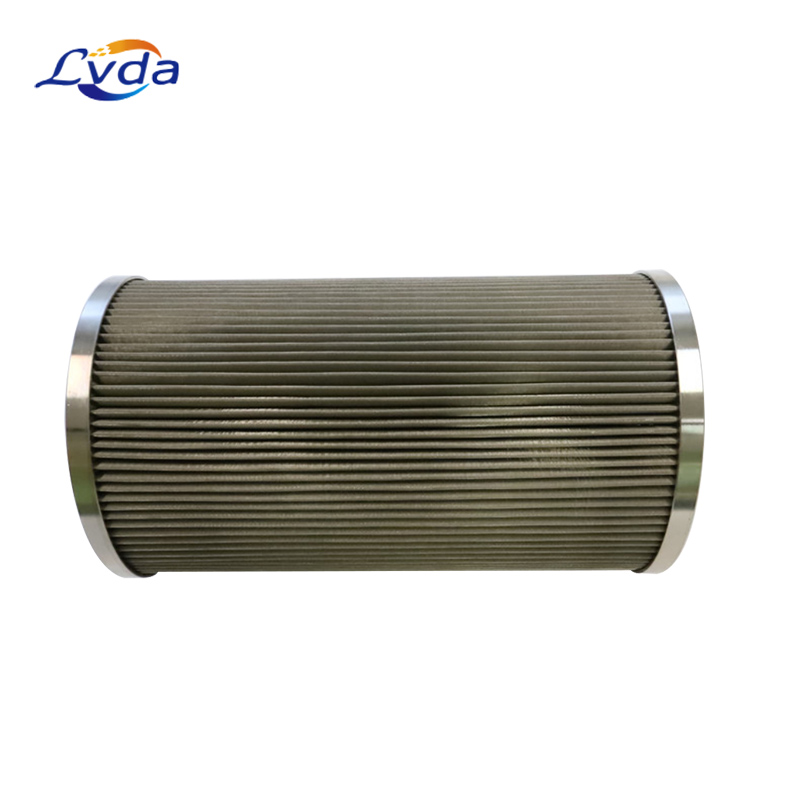

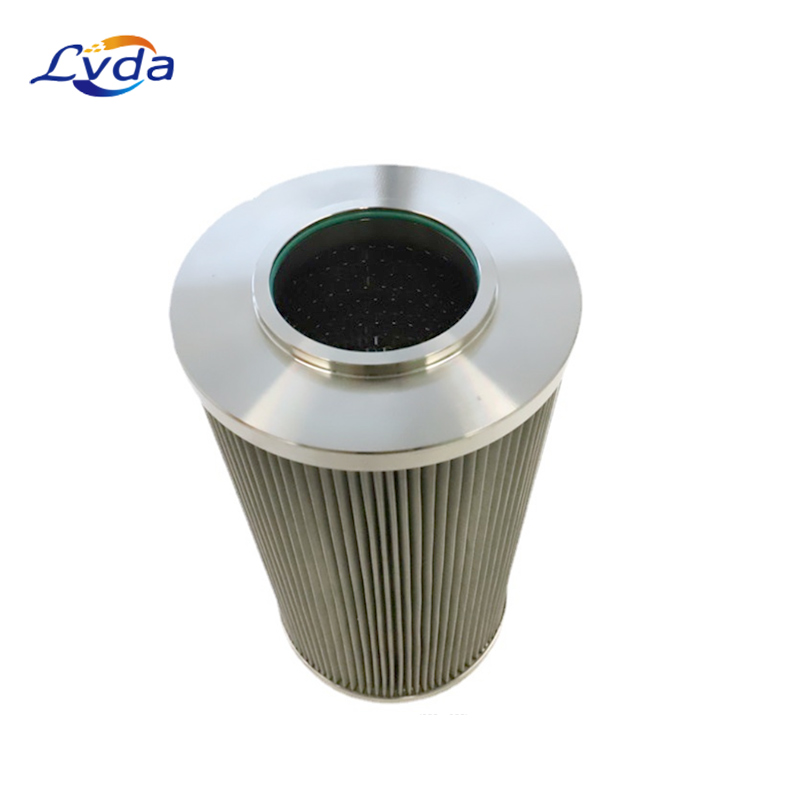

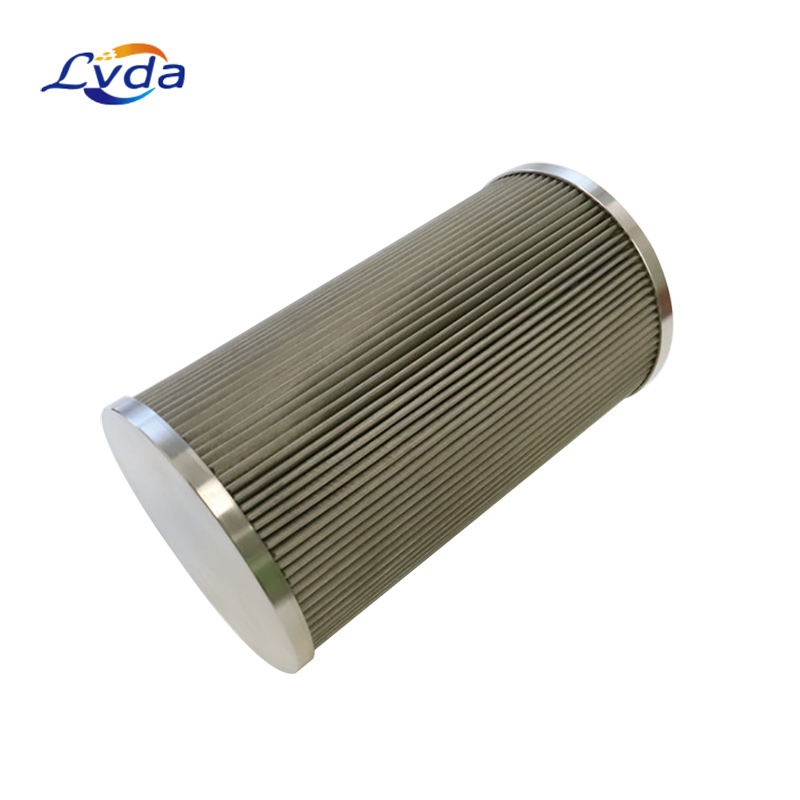

PI21040RNSMX3 Mahler high-pressure filter element
The Mahler filter element adopts a pull rod connection structure. The pull rod on the filter passes through the filter element, fastening the filter element with screws, and keeping the filter element in the air; The filter element adopts the design concept that the medium flows from inside to outside. The outside of the core uses a spiral skeleton to support the pressure resistance of the entire filter element, and the pressure bearing capacity can reach 21-32kg; The filter material close to the skeleton shall be imported high-quality filter paper with precision of 1-25 μm for customers to choose. It can meet customers' requirements under various working conditions. It has the purification ability to reach a higher cleanliness level. The appearance design of series filter element is beautiful and generous, and the performance is superior and reliable!
Product features
1.It filters out the debris, dirt, grime, etc. from the engine oil.
2.A filter keeps the engine oil where it should be.
3.Oil filters increase the efficiency of engine oil.
4.Filters increase the longevity of the equipment’s engine.
5.They reduce the downtime of the machinery usually common to inefficient engines.
Product parameters
Model: | Pi 21040 RN SMX 3 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 1800-2000h |
Certificate: | ISO9001 |
Quality: | 100% Tested |
Working pressure: | -21~210 bar |
Working temperature: | 200（℃） |
Maximum operating differential pressure | 20（MPa） |
Filtering precision | 3 micron |
Purpose | Oil removing impurities |
Outer Diameter | 129 mm |
Inner Diameter | 70.5 mm |
Length | 250 mm |
Media Type | Glass Fiber |
Flow Direction | OUT-IN |
Collapse Pressure | 10 BAR |
Seal | Nitrile |
Efficiency 1 | 3µ @ β200 |
Efficiency 2 | 5µ @ β1000 |
Product application
1.Mainly used for steel mill ,
2.power plant ,
3.mine/resource depot ,
4.paper mill,
5.paper making enterprise power hydraulic station system filtration,
6.petroleum,
7.metallurgy,
8.chemical industry,
9.railway,
10.oil field,
11.oil exploitation,
12.pharmaceutical factory aviation,
13.electronics,
14.power,
15.pharmaceutical,
16.environmental protection,
17.atomic energy,
18.nuclear industry,
19.natural gas,
20.refractory materials,
21.fire fighting equipment.
